Air Bag System Input / Output Table

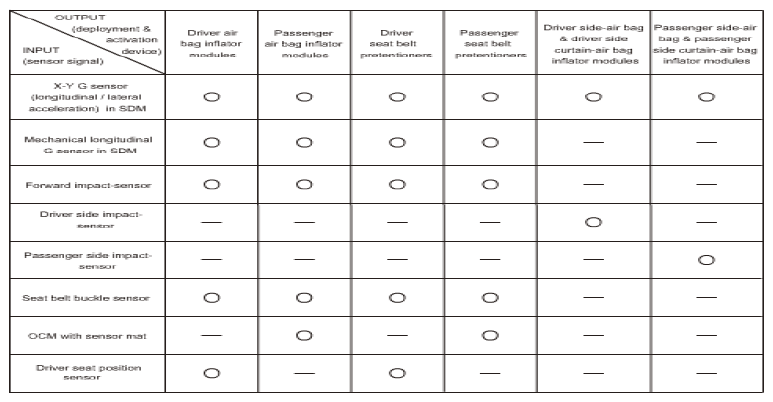

Fig 1: Air Bag System Input / Output Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
