G-2 Multi Information Display / Accessory Socket System Circuit Diagram

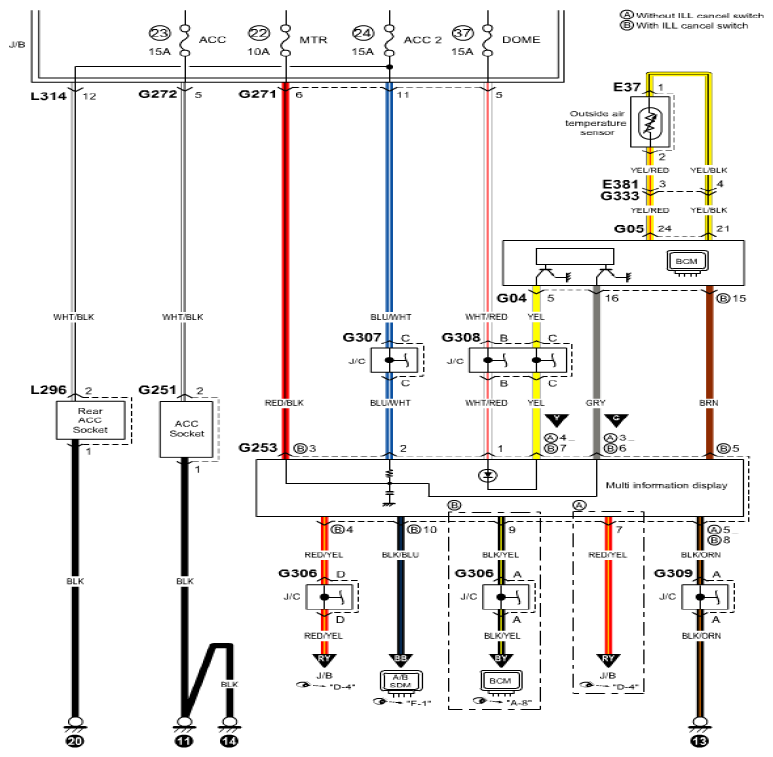

Fig 1: Multi Information Display / Accessory Socket System Circuit Diagram
G05472508Courtesy of SUZUKI OF AMERICA CORP.
