F-4 Power Steering System Circuit Diagram (Mexico)

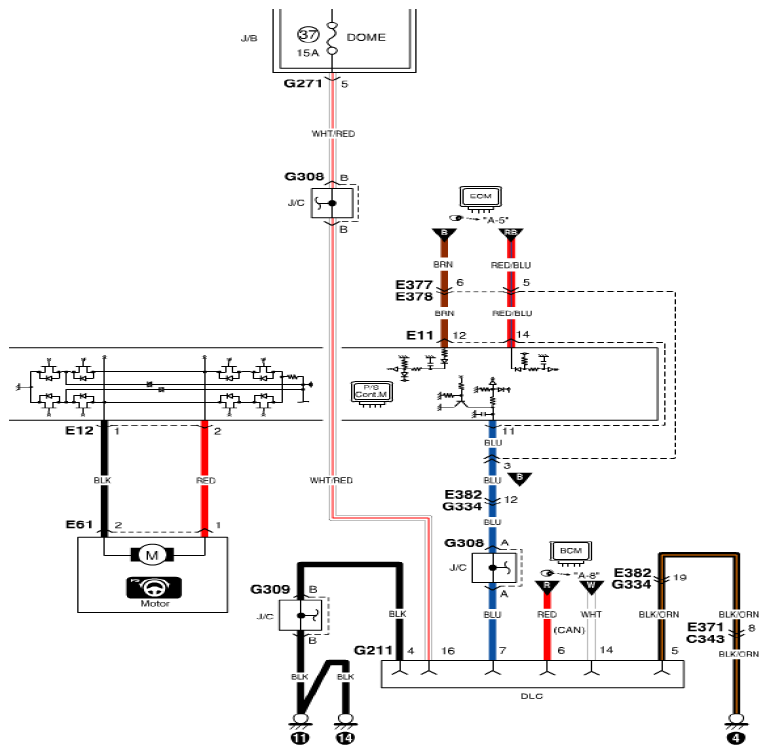

Fig 1: Power Steering System Circuit Diagram (Mexico) (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

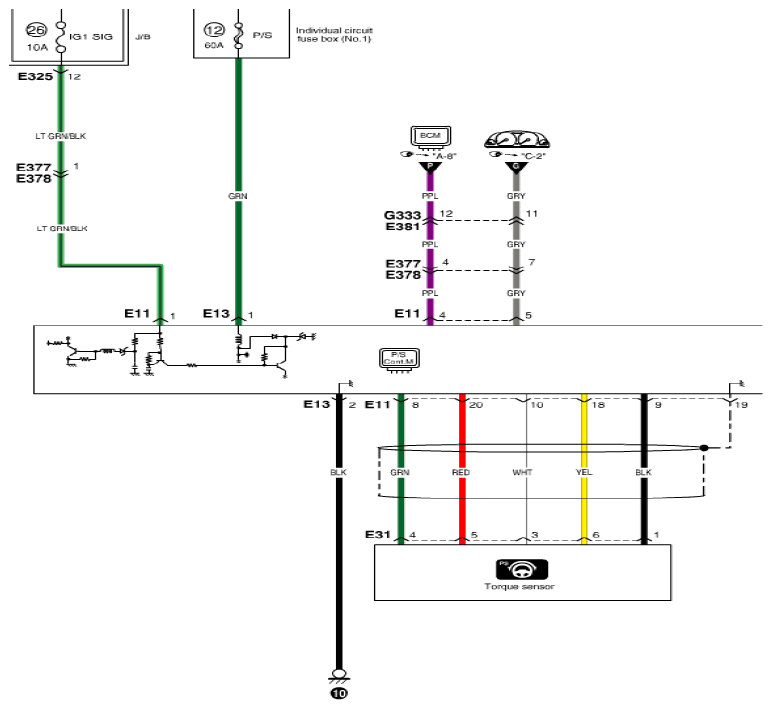

Fig 2: Power Steering System Circuit Diagram (Mexico) (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
