F-1 Air-Bag System Circuit Diagram (10ch)

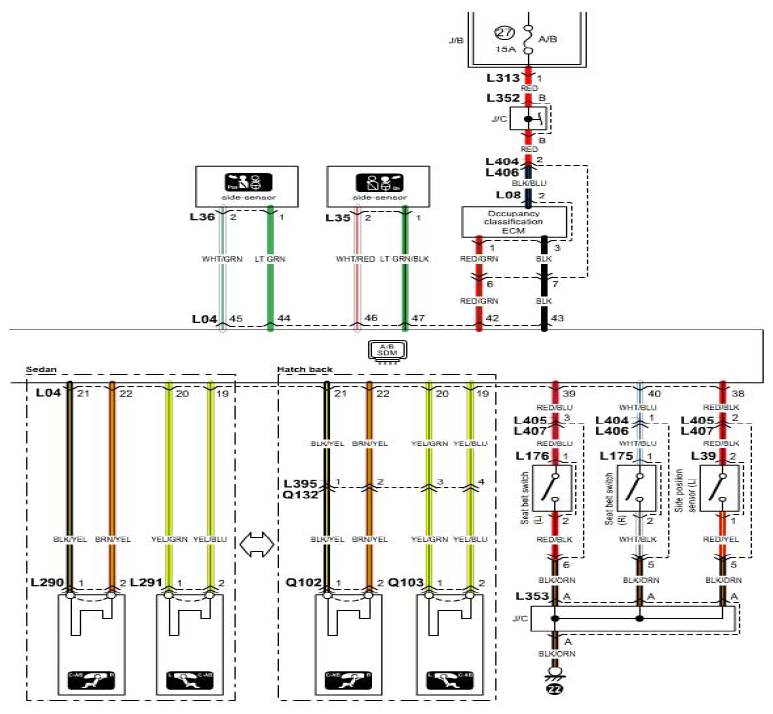

Fig 1: Air-Bag System Circuit Diagram (10Ch) (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

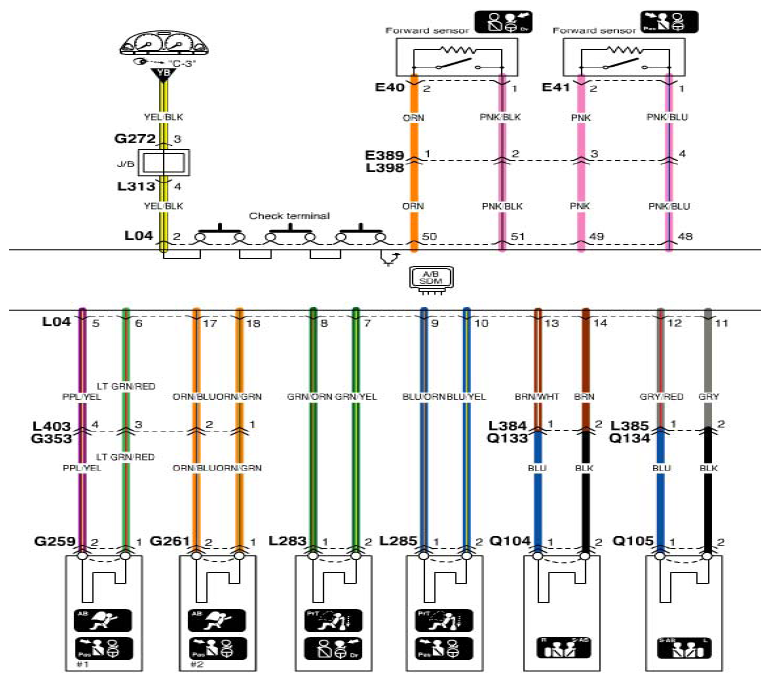

Fig 2: Air-Bag System Circuit Diagram (10Ch) (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

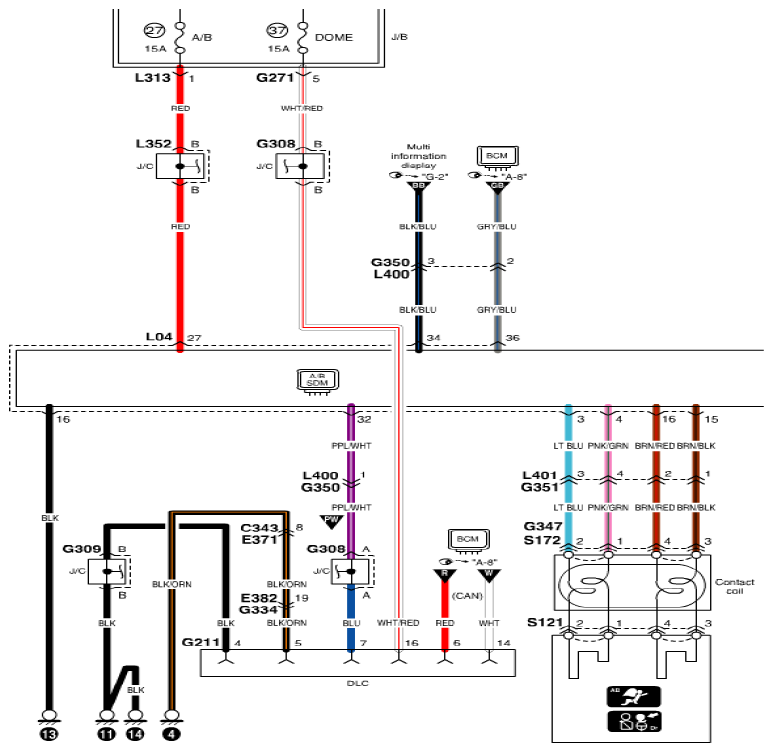

Fig 3: Air-Bag System Circuit Diagram (10Ch) (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
