E-1 Heater System Circuit Diagram

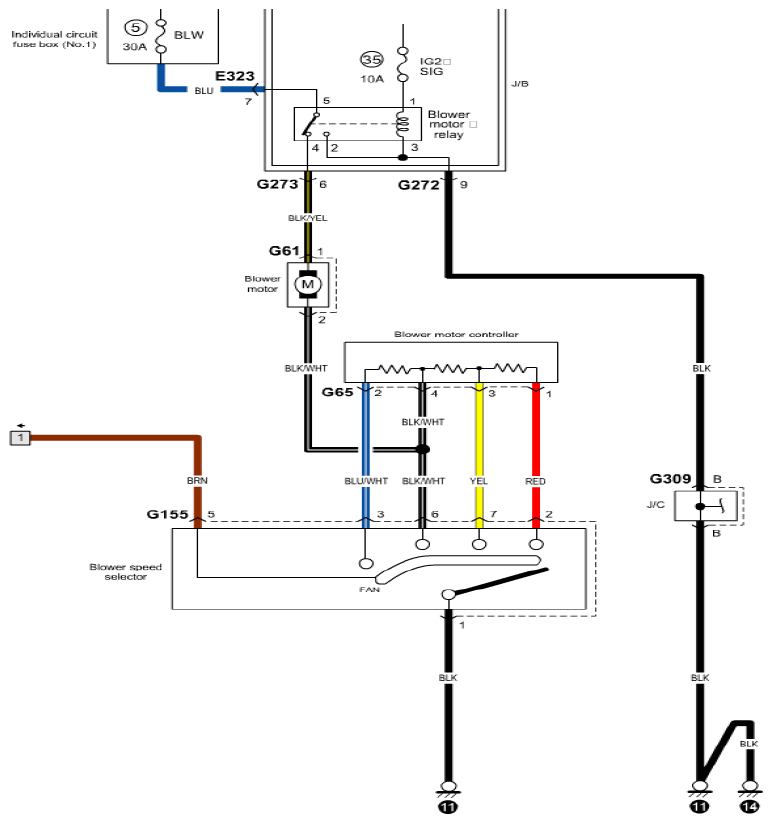

Fig 1: Heater System Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

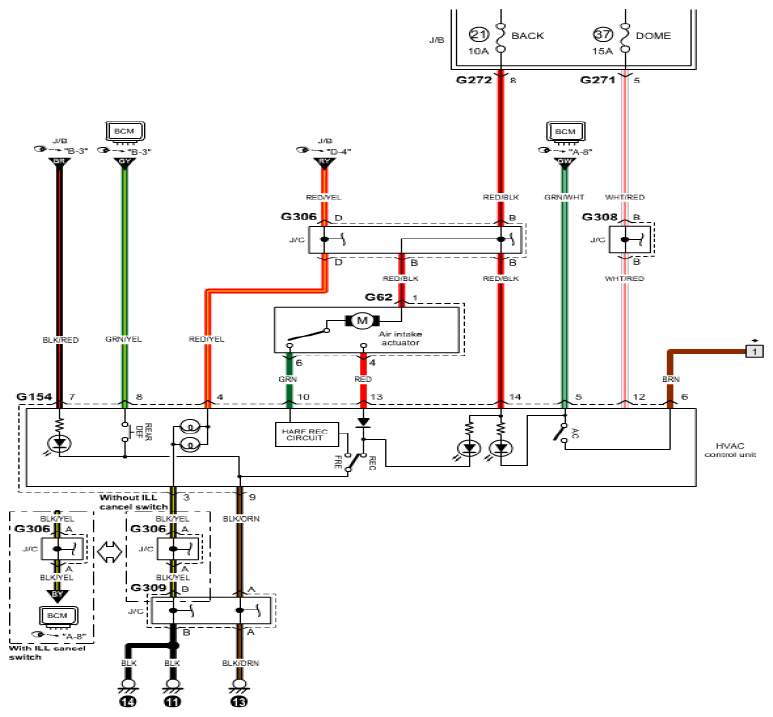

Fig 2: Heater System Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
