D-6 Turn Signal and Hazard Warning Light System Circuit Diagram (Sedan)

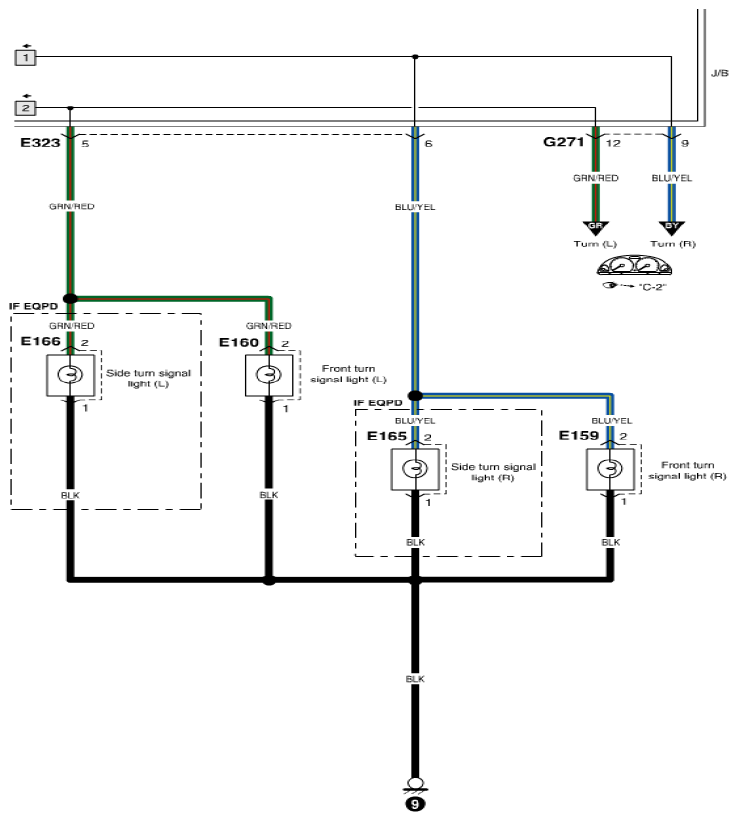

Fig 1: Turn Signal And Hazard Warning Light System Circuit Diagram (Sedan) (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

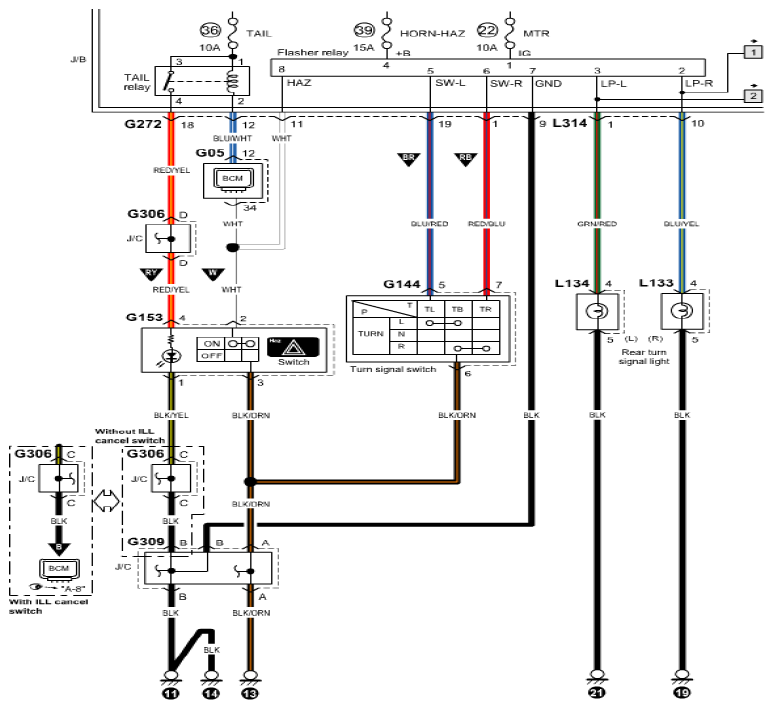

Fig 2: Turn Signal And Hazard Warning Light System Circuit Diagram (Sedan) (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
