C-3 Combination Meter Circuit Diagram (Warning Light)

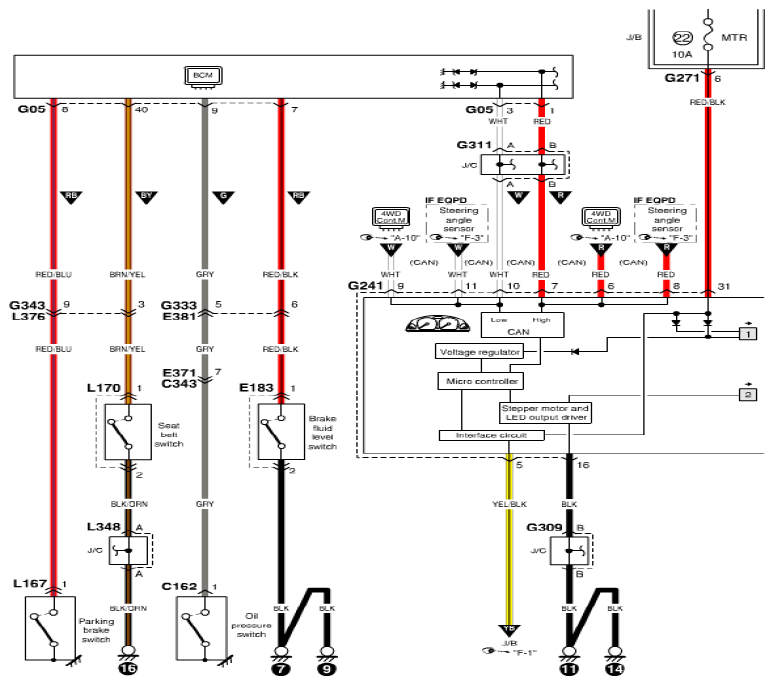

Fig 1: Combination Meter Circuit Diagram (Warning Light) (1 Of 2)
G05472475Courtesy of SUZUKI OF AMERICA CORP.

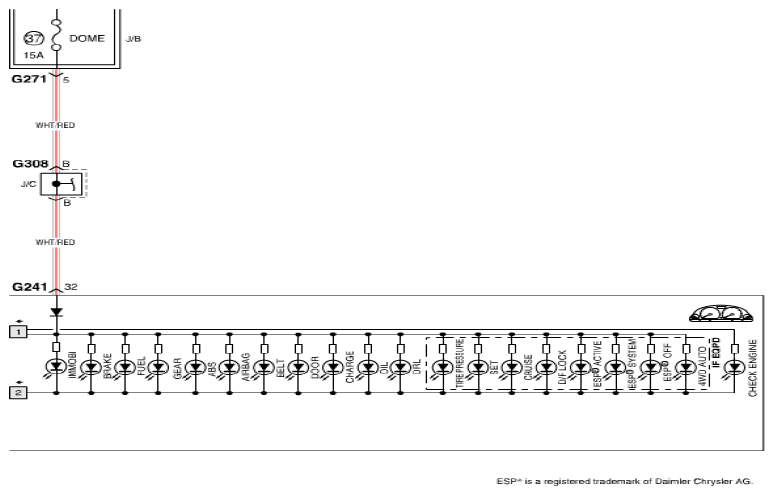

Fig 2: Combination Meter Circuit Diagram (Warning Light) (2 Of 2)
G05472476Courtesy of SUZUKI OF AMERICA CORP.
