C-2 Combination Meter Circuit Diagram (Indicator)

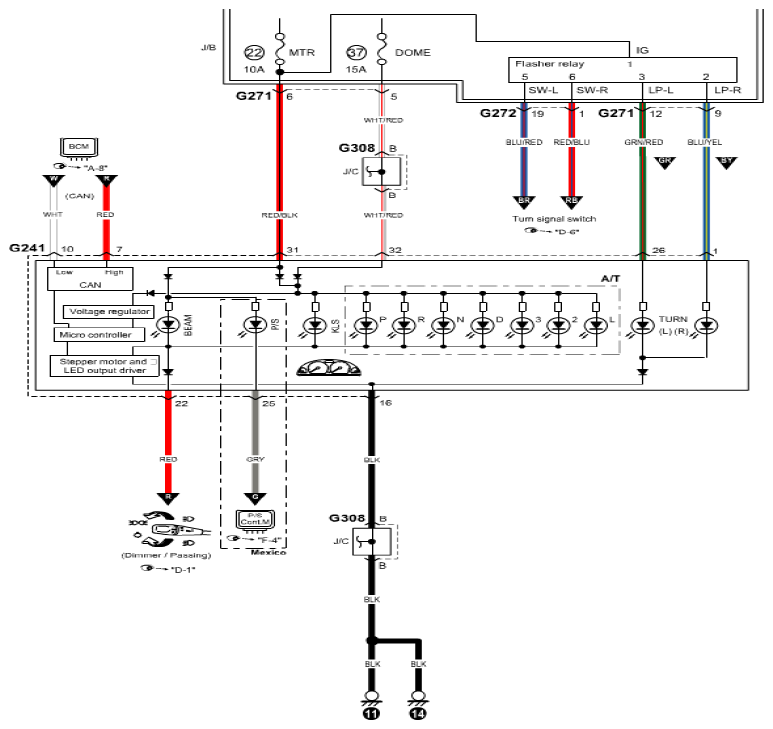

Fig 1: Combination Meter Circuit Diagram (Indicator)
G05472474Courtesy of SUZUKI OF AMERICA CORP.
