System Circuit Diagram
>>
B-9 Keyless Start System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
B-9 Keyless Start System Circuit Diagram

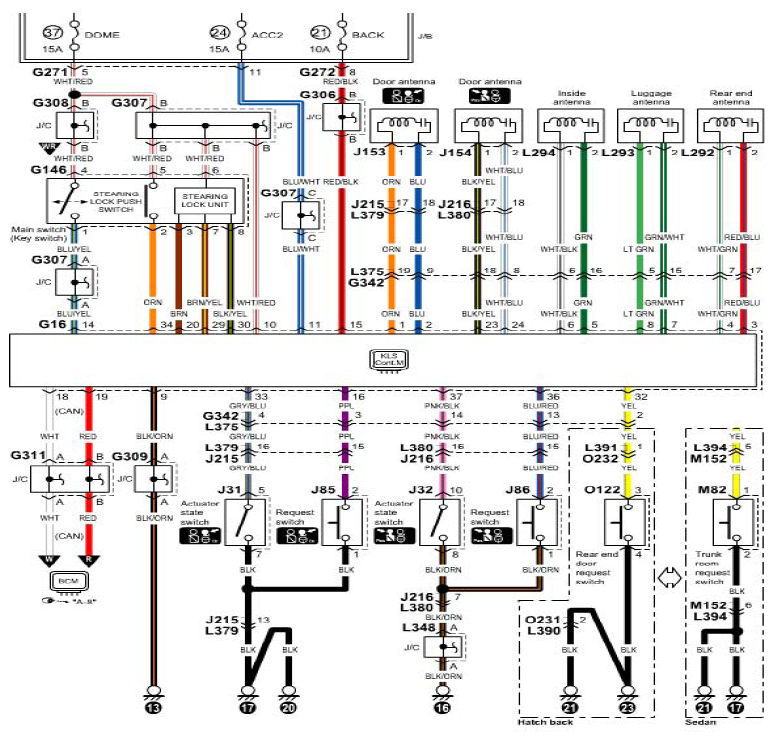

Fig 1: Keyless Start System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
