B-6 Power Mirror Circuit Diagram (Hatchback)

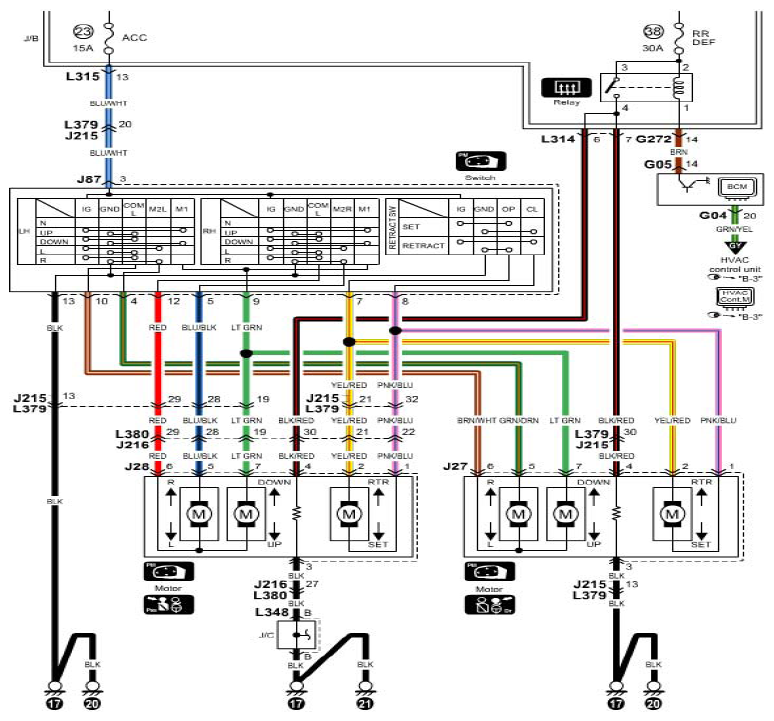

Fig 1: Power Mirror Circuit Diagram (Hatchback)
Courtesy of SUZUKI OF AMERICA CORP.
