Suzuki
>>
2009
>>
SX4 LE, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
Reassembling Note for Wiring Harness
>>
Floor Harness
>>
Right side (Hatch back)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right side (Hatch back)

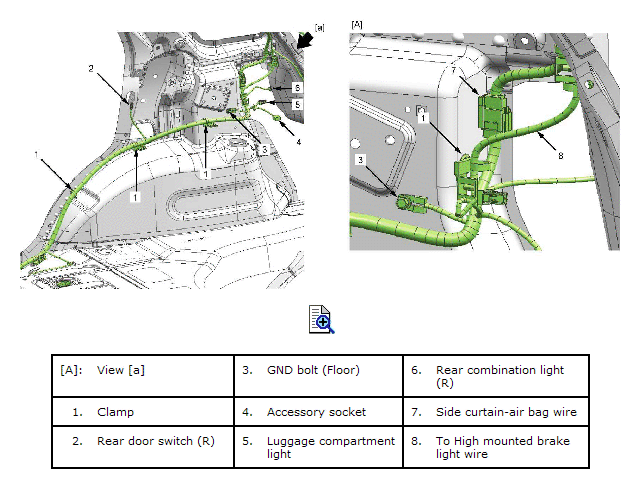

Fig 1: Right Side (Hatch Back) Floor Harness - Part 1 of 2
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Right Side (Hatch Back) Floor Harness - Part 2 of 2
Courtesy of SUZUKI OF AMERICA CORP.
