Junction Block Inner Circuit (Detail)

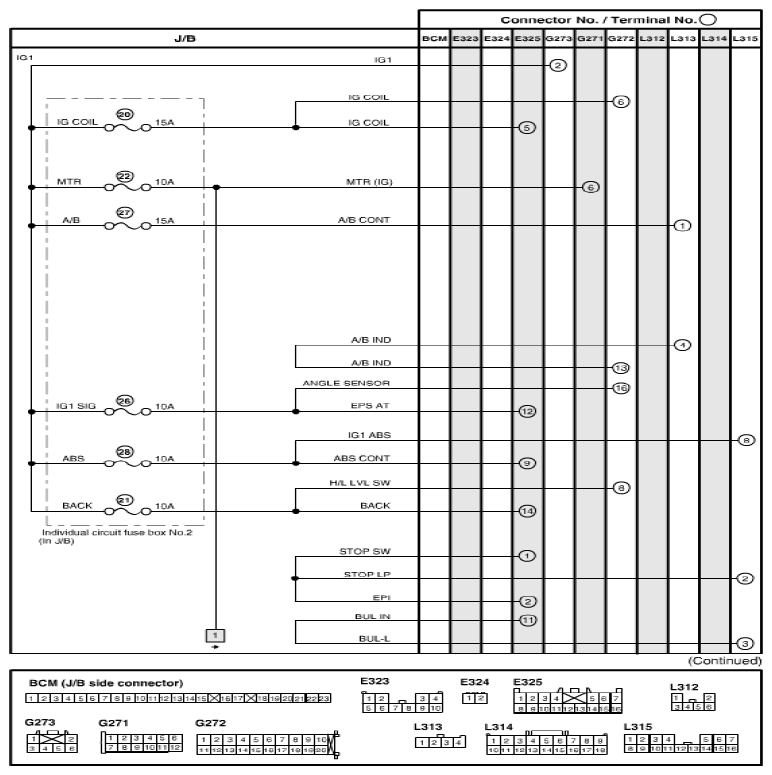

Fig 1: Junction Block Inner Circuit Diagram (Detail) (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

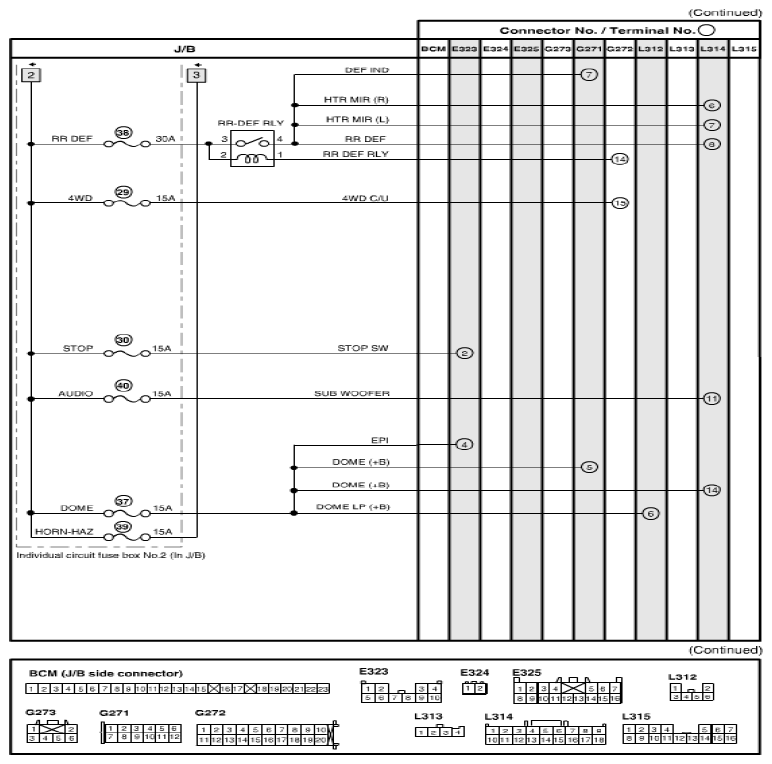

Fig 2: Junction Block Inner Circuit Diagram (Detail) (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

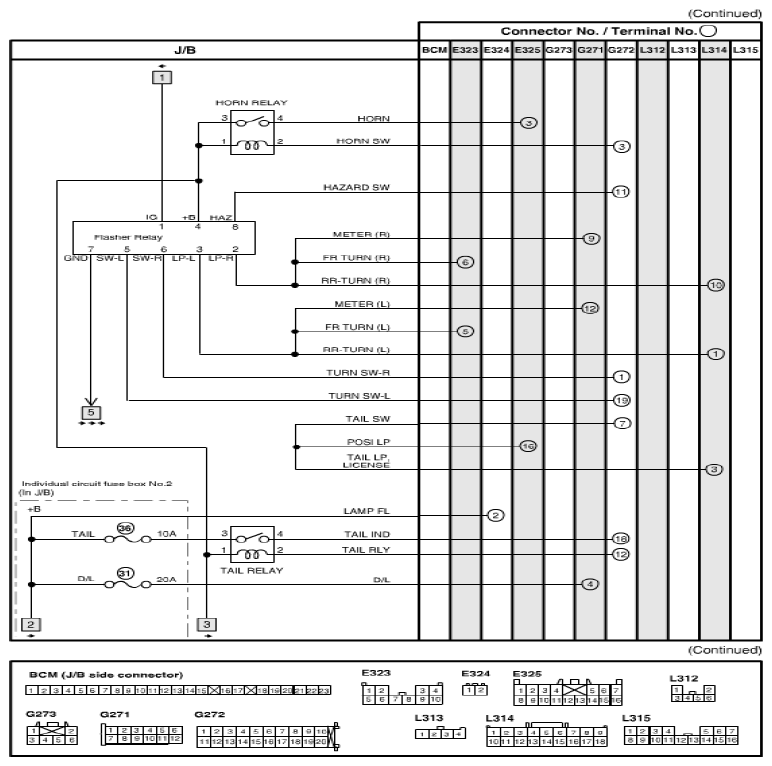

Fig 3: Junction Block Inner Circuit Diagram (Detail) (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

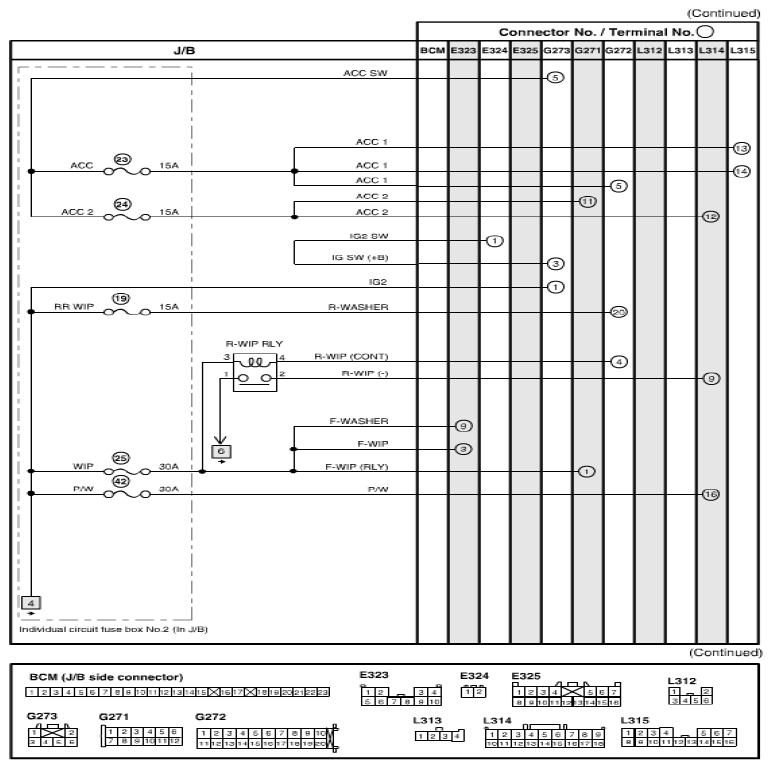

Fig 4: Junction Block Inner Circuit Diagram (Detail) (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

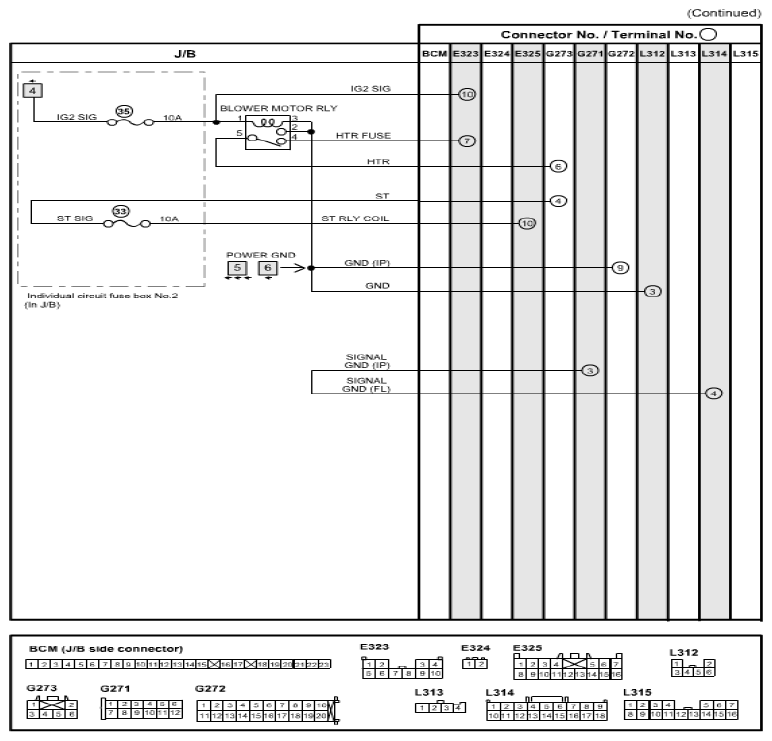

Fig 5: Junction Block Inner Circuit Diagram (Detail) (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
