Suzuki
>>
2009
>>
SX4 LE, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
Power Supply Diagram
>>
Junction Block (J/B) Connector / Fuse Layout
>>
BCM side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
BCM side

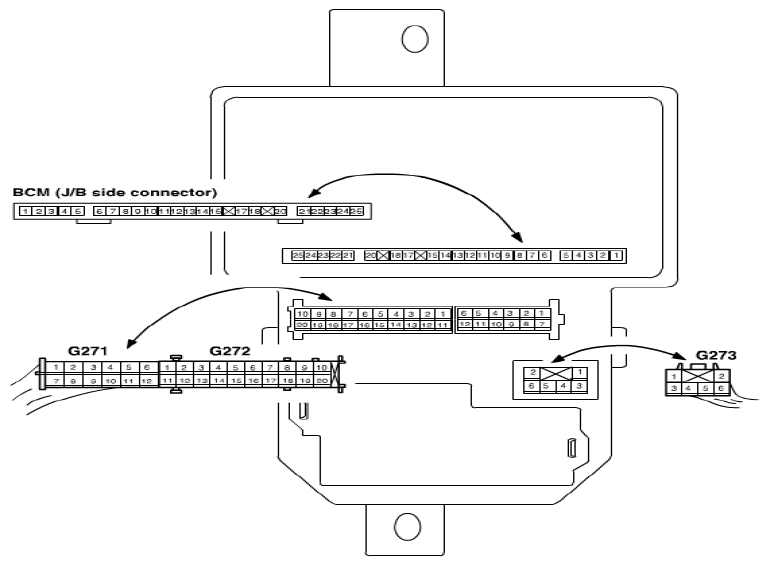

Fig 1: Identifying Junction Block (J/B) Connector / Fuse Layout (BCM Side)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
