Individual Circuit Fuse Box No. 2 (In J/B): Notes

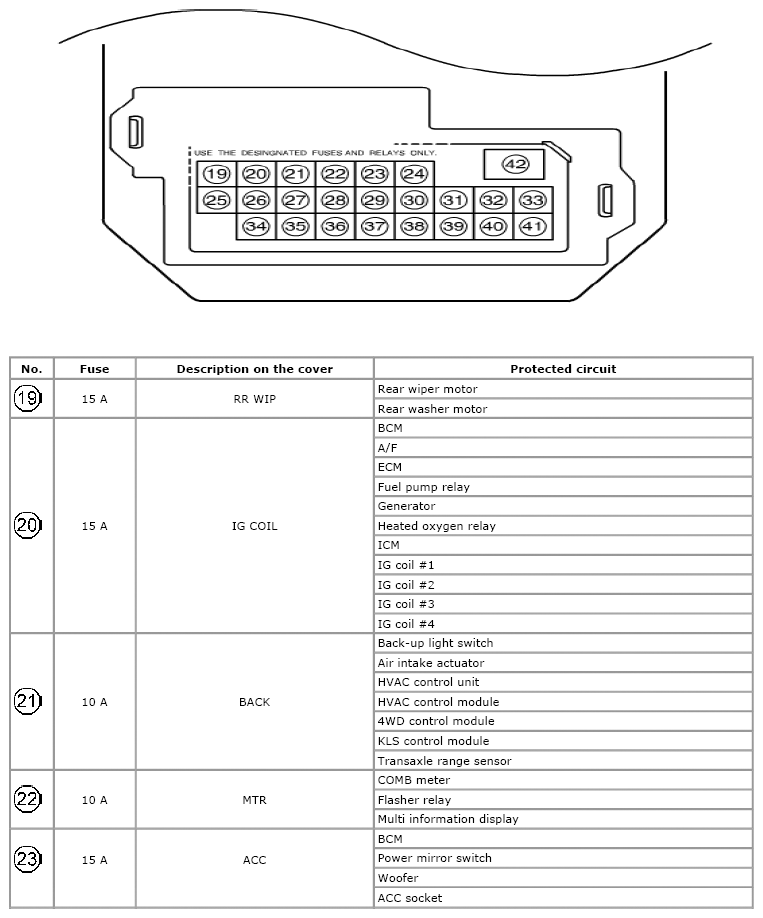

Fig 1: Identifying Individual Circuit Fuse Box No. 2 (In J/B)

Courtesy of SUZUKI OF AMERICA CORP.

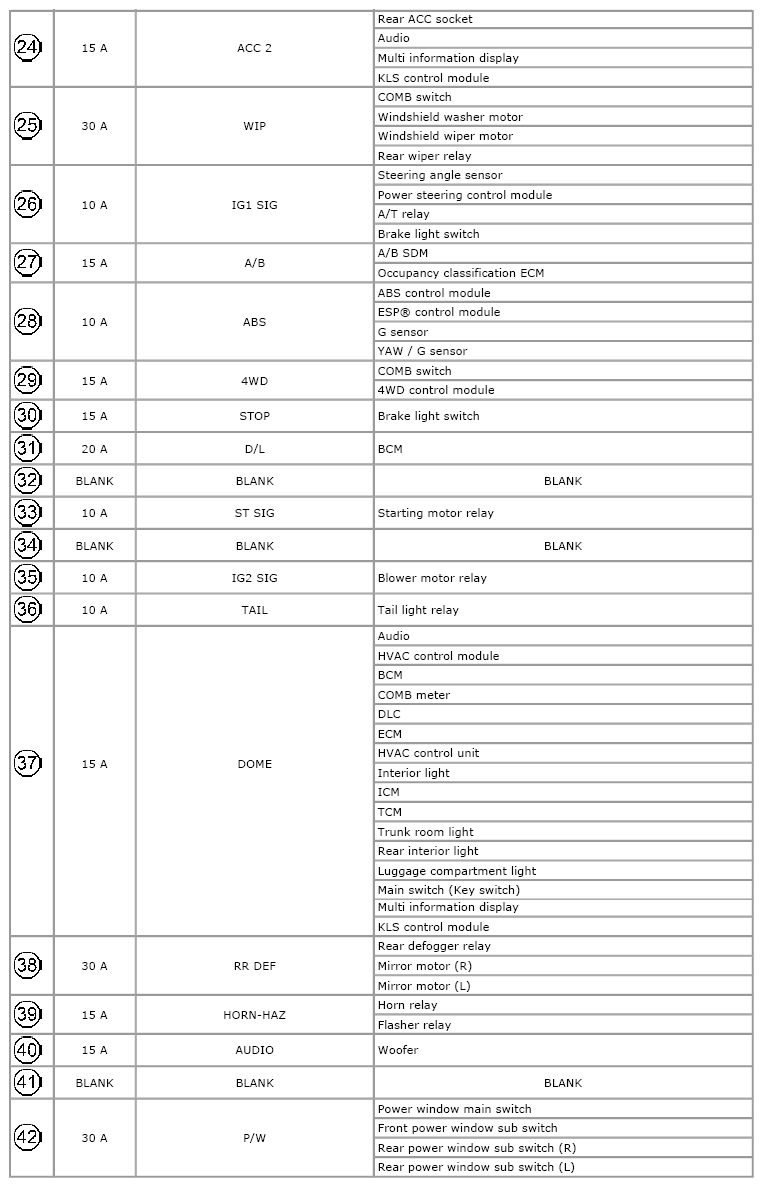

Fig 2: Individual Circuit Fuse Box No. 2 (In J/B) Reference Chart

Courtesy of SUZUKI OF AMERICA CORP.
