Individual Circuit Fuse Box No. 1

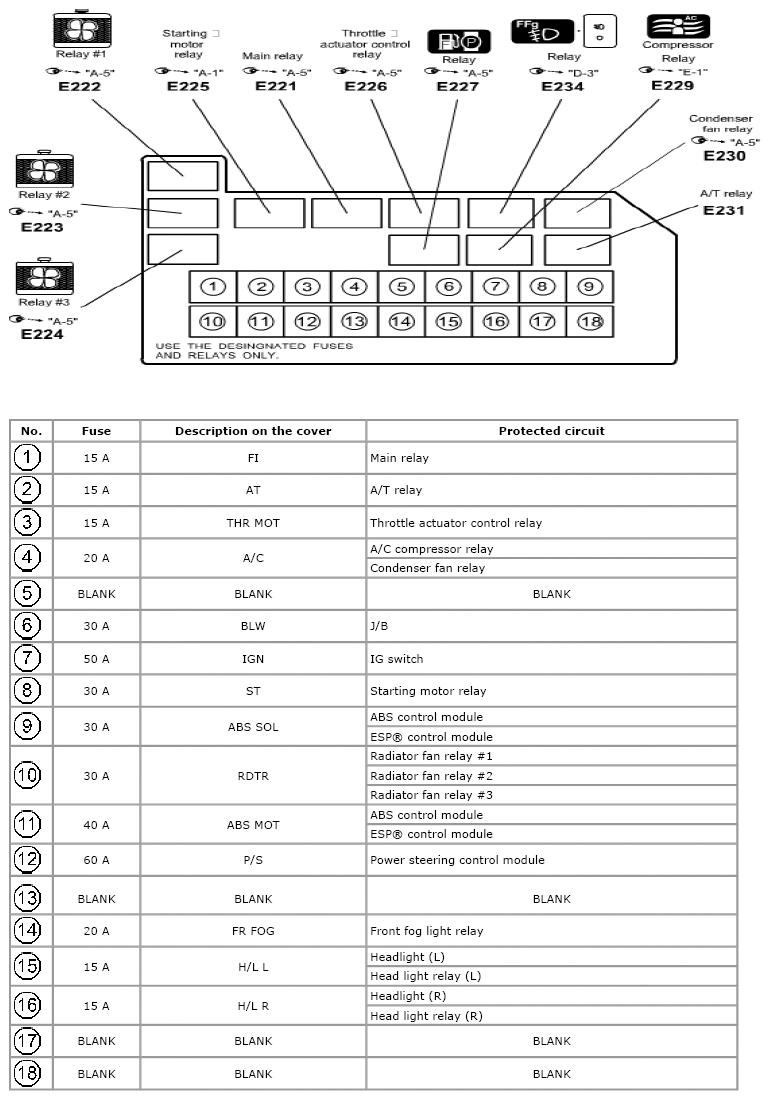

Fig 1: Identifying Individual Circuit Fuse Box No. 1
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
