G Connector

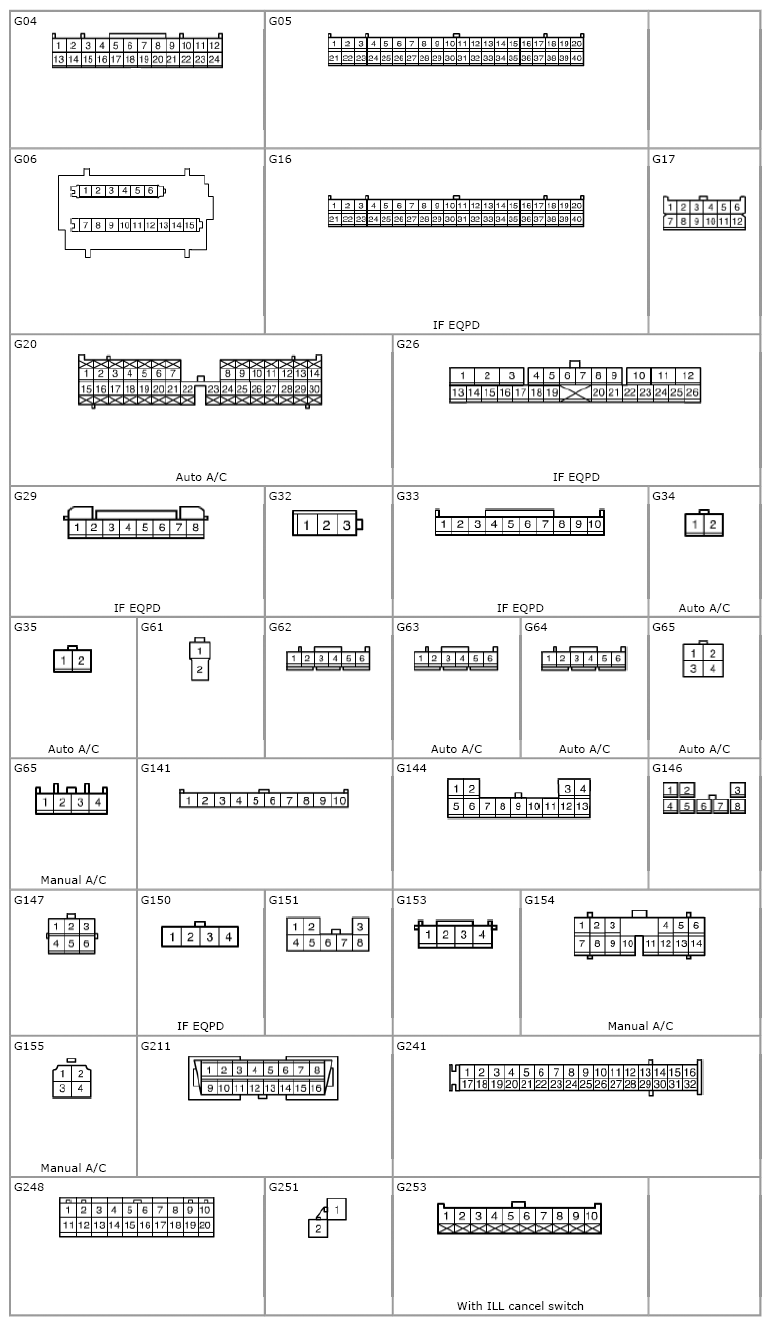

Fig 1: Identifying G Connectors Terminals (1 Of 3)
G05472512Courtesy of SUZUKI OF AMERICA CORP.

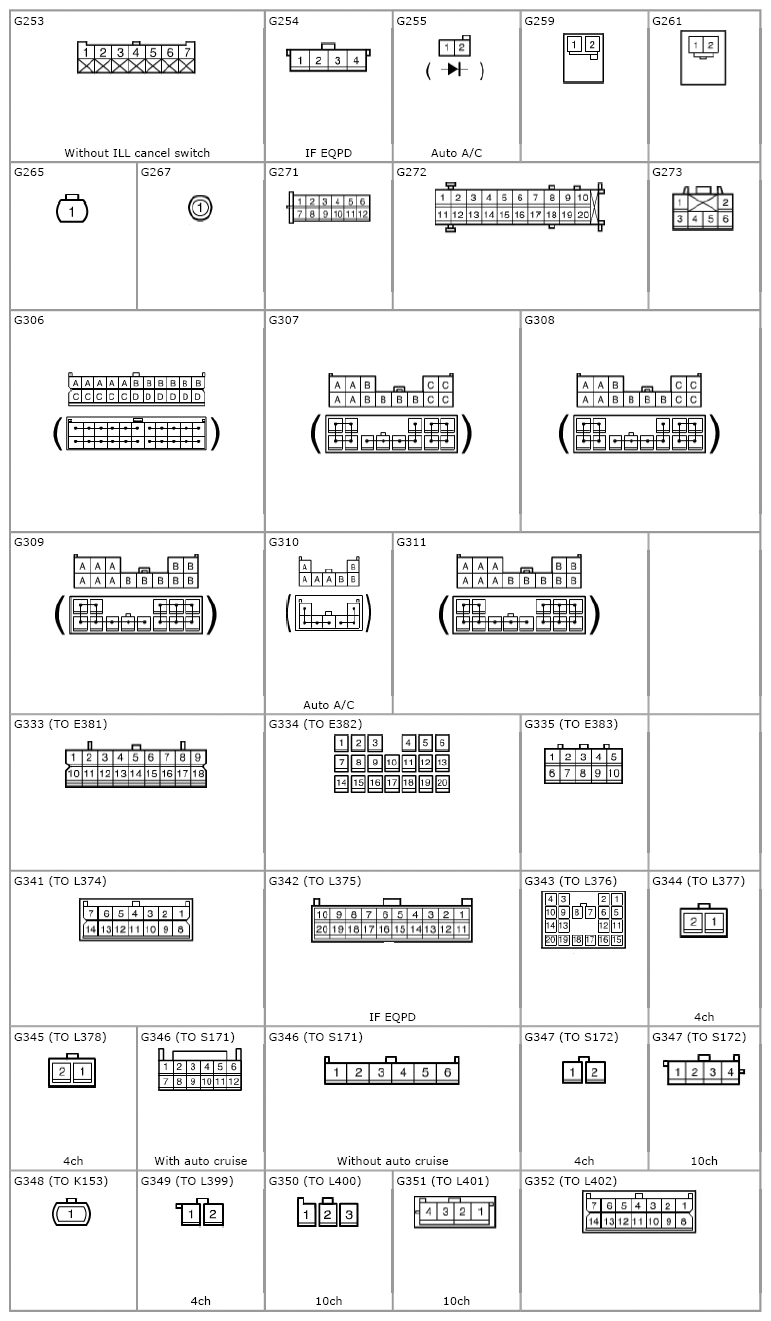

Fig 2: Identifying G Connectors Terminals (2 Of 3)
G05472513Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Identifying G Connectors Terminals (3 Of 3)
G05472514Courtesy of SUZUKI OF AMERICA CORP.
