Symbols and Marks

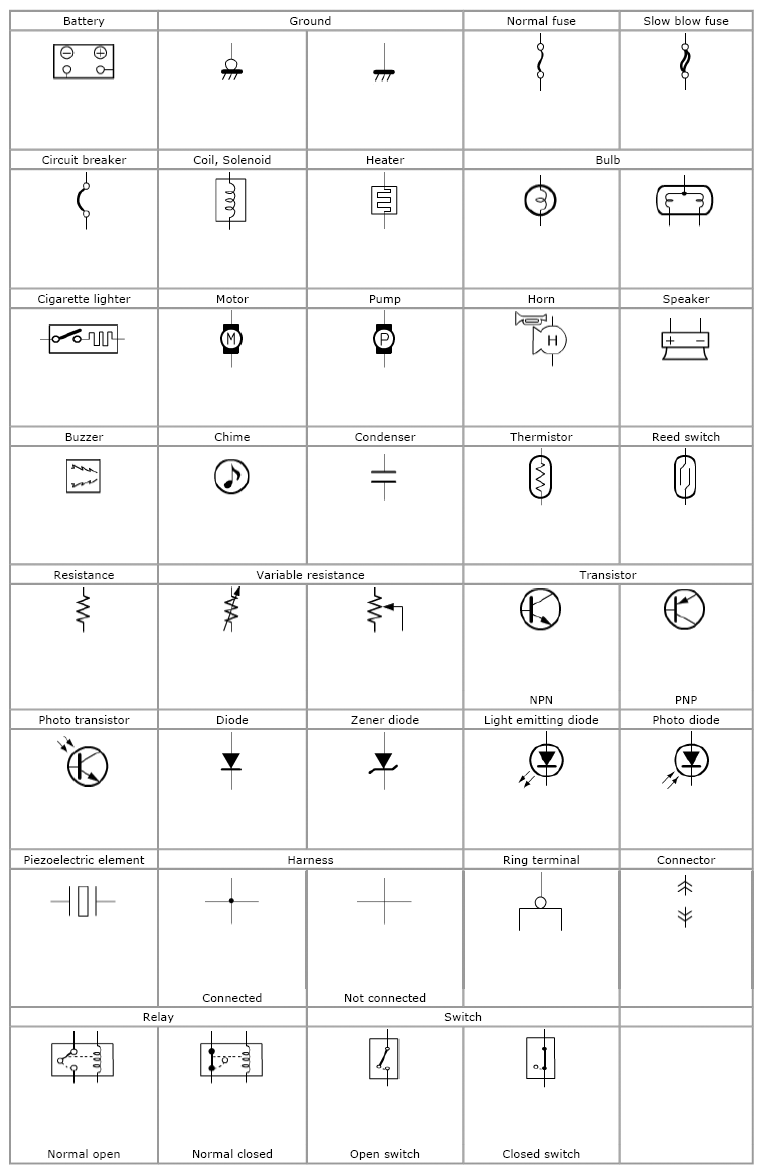

Fig 1: Identifying Wire / Connector Symbols And Marks (1 Of 2)
G05472409Courtesy of SUZUKI OF AMERICA CORP.

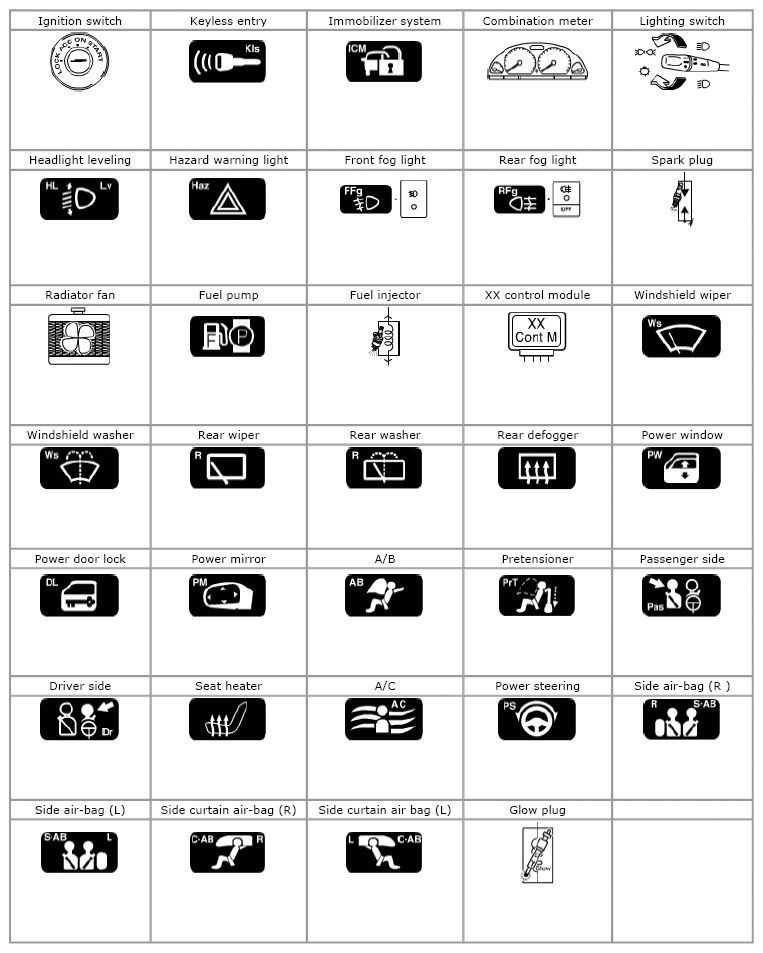

Fig 2: Identifying Wire / Connector Symbols And Marks (2 Of 2)
G05472410Courtesy of SUZUKI OF AMERICA CORP.
