A: Battery cable / C: Engine harness: Notes
C: Engine harness

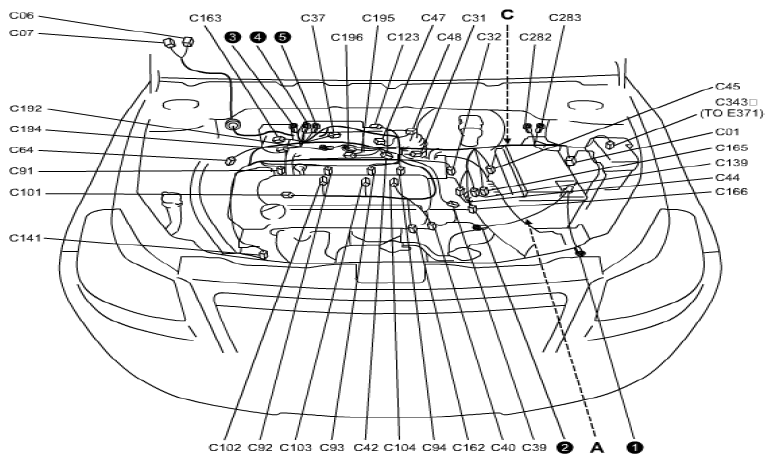

ENGINE HARNESS REFERENCE CHART
| No./Color | Connective position | No./Color | Connective position |
|---|---|---|---|
| C01/GRY | ECM | C101/GRY | IG COIL #1 |
| C06/N (A/T) | TCM | C102/GRY | IG COIL #2 |
| C07/N (A/T) | TCM | C103/GRY | IG COIL #3 |
| C31/GRY | CKP sensor | C104/GRY | IG COIL #4 |
| C32/N | CMP sensor | C123/BLU | EVAP canister purge valve |
| C37/GRY | Knock sensor | C139/GRY (A/T) | Shift solenoid |
| C39/BLK | ECT sensor | C141/BLK | A/C compressor |
| C40/GRN | A/F sensor | C162/N | Oil pressure switch |
| C42/N | Heated oxygen sensor | C163/N | P/S pressure switch |
| C44/BLK (A/T) | Input shaft speed sensor | C165/BLK (M/T) | Back-up light switch |
| C45/BLK (A/T) | Output shaft speed sensor | C166/BLK (A/T) | Transaxle range sensor |
| C47/BLK | MAF sensor | C192/- | Generator |
| C48/BLK | Electric throttle body | C194/BLK | Generator |
| C64/BRN | VIM motor | C195/BLK | Starting motor |
| C91/GRY | Fuel injector #1 | C196/- | Starting motor |
| C92/GRY | Fuel injector #2 | C282/- | Main fuse box |
| C93/GRY | Fuel injector #3 | C283/- | Main fuse box |
| C94/GRY | Fuel injector #4 | C343/N | Main harness (To E371) |
