Suzuki
>>
2009
>>
SX4 LE, Standard
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Differentials & Drive Axles
>>
Differential
>>
Schematic and Routing Diagram
>>
Terminal Arrangement of 4WD Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Arrangement of 4WD Control Module

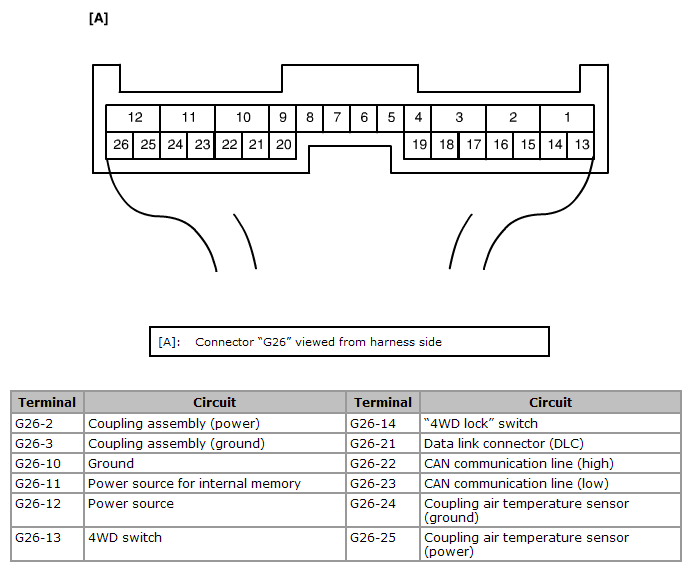

Fig 1: Terminal Arrangement of 4WD Control Module
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
