4WD Control System Wiring Circuit Diagram

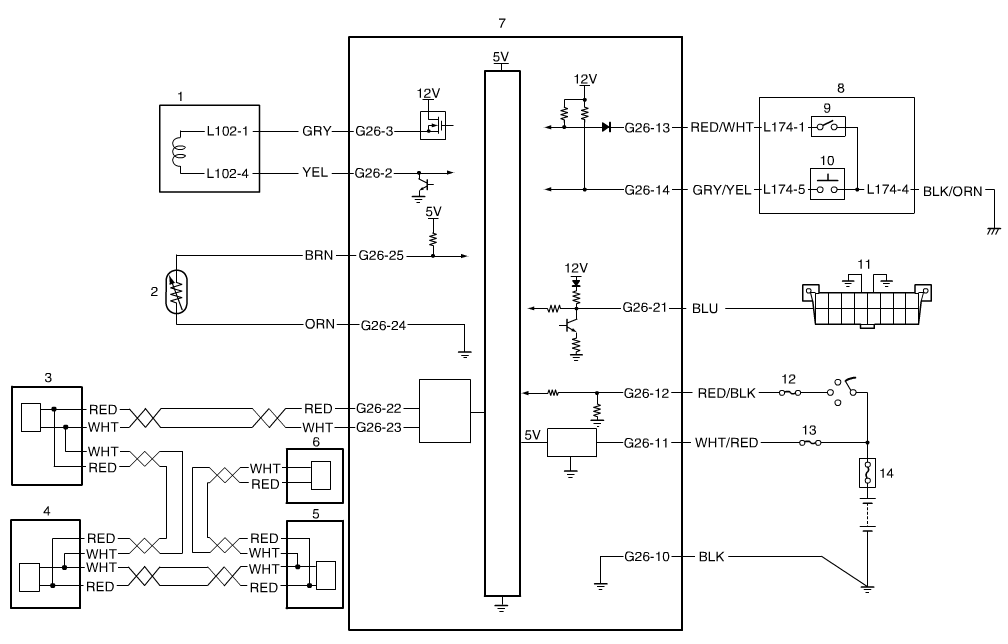

Fig 1: Control System Wiring Circuit Diagram (Part 1 of 2)
G00488108Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Control System Wiring Circuit Diagram (Part 2 of 2)
G00488109Courtesy of SUZUKI OF AMERICA CORP.
