Hatchback Model

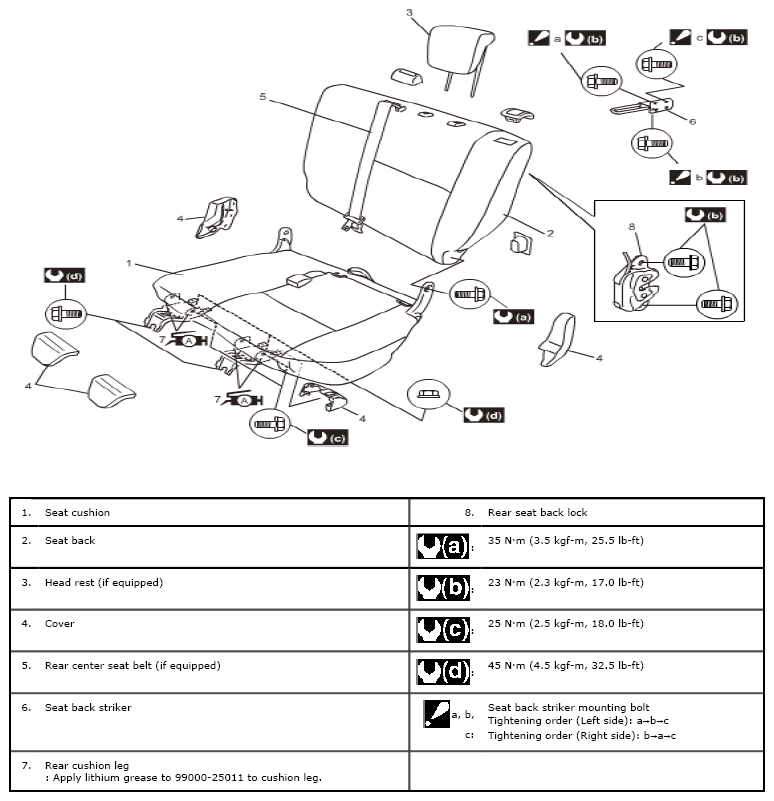

Fig 1: Identifying Rear Seat Components - Hatchback Model
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
