Rear Quarter Window Removal and Installation
Reference: REAR QUARTER WINDOW COMPONENTS
Refer to WINDSHIELD REMOVAL AND INSTALLATION as preparation, removal and installation procedures are basically the same. However, note the following.
- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- Press glass against body quickly after adhesive (1) is applied.

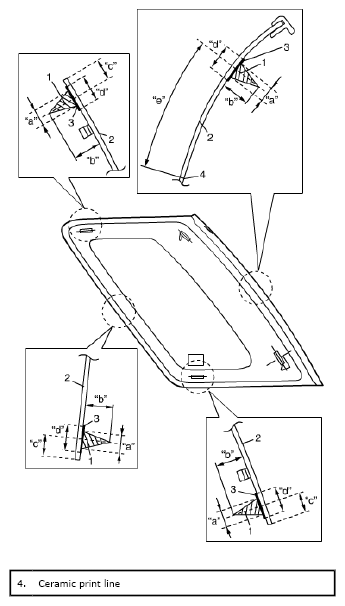

Adhesive amount specifications and position for rear quarter window
Width "a": Approx. 6 mm (0.24 in.)
Height "b": Approx. 13 mm (0.51 in.)
Position "c": Approx. 12 mm (0.47 in.)
Width "d": Approx. 14 mm (0.55 in.)
Position "e": Approx. 84 mm (3.31 in.)
