Rear End Door Glass Removal and Installation
Reference: REAR END DOOR WINDOW COMPONENTS
Refer to WINDSHIELD REMOVAL AND INSTALLATION as preparation, removal and installation procedures are basically the same. However, note the following.

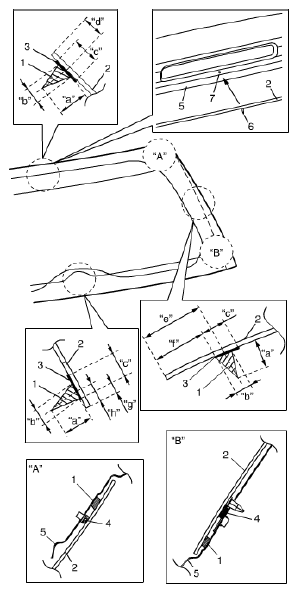

- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- Install glass (2) on rear end door panel (5) noting the following.
- With the position of fastener (4) properly aligned.
- With the position of ceramic mark (6) aligned to the mark (7) of rear end door panel (5).
- Press glass against body quickly after adhesive (1) is applied.
Adhesive amount specifications and position for rear end door glass
Height "a": 13 mm (0.51 in.)
Width "b": 7 mm (0.28 in.)
Width "c": 14 mm (0.55 in.)
Position "d": 15 mm (0.59 in.)
Position "e": 42 mm (1.65 in.)
Position "f": 37 mm (1.46 in.)
Position "g": 9 mm (0.35 in.)
Position "h": 14 mm (0.55 in.)
