Rear Door Glass Removal and Installation: Installation

Reverse removal procedure noting the following instructions.

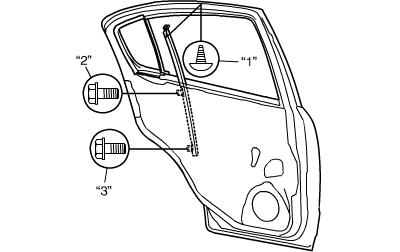

• Tighten door sash mounting bolts and screw (" 1" - "3") according to numerical order as shown in figure. If there is deformity for glass run, replace it with a new one.
  Fig 1: Installing Door Sash Mounting Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• Secure door sealing cover (1) with adhesive (2).
  Fig 2: Identifying Door Sealing Cover With Adhesive

  Courtesy of SUZUKI OF AMERICA CORP.
• Install rear door trim.

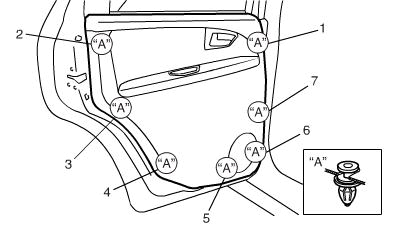

  Rear door trim attaching order

  (1) --> (2) --> (3) --> (4) --> (5) --> (6) --> (7)

  Fig 3: Identifying Rear Door Trim Attaching Order

  Courtesy of SUZUKI OF AMERICA CORP.
