Sealant Application Areas

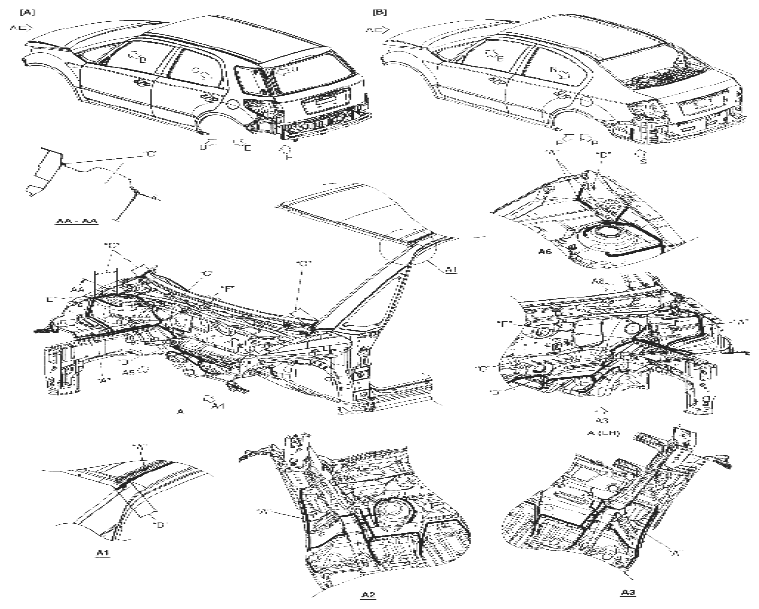

Fig 1: Identifying Sealant Application Areas (1 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

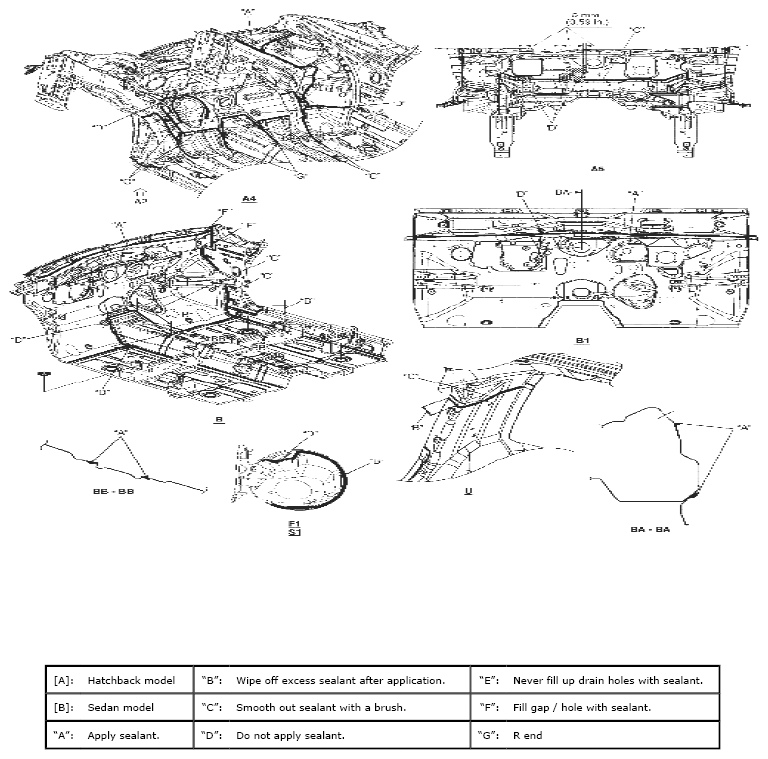

Fig 2: Identifying Sealant Application Areas (2 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

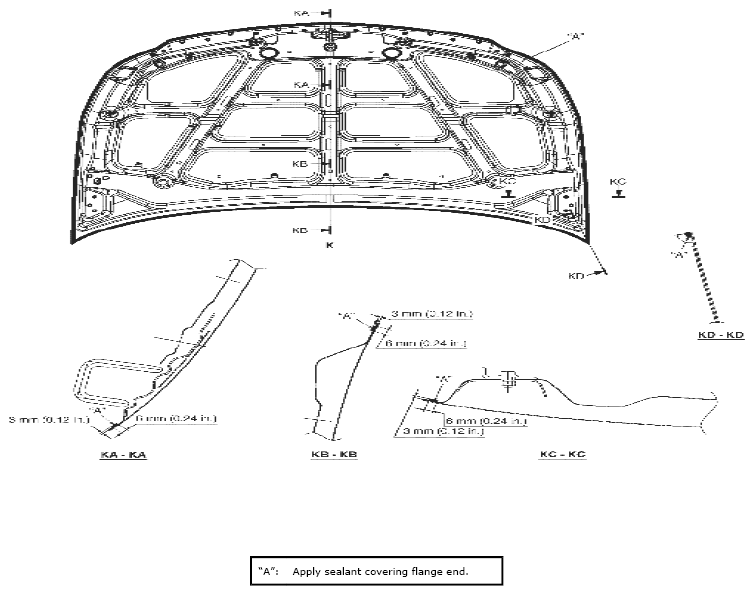

Fig 3: Identifying Sealant Application Areas (3 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

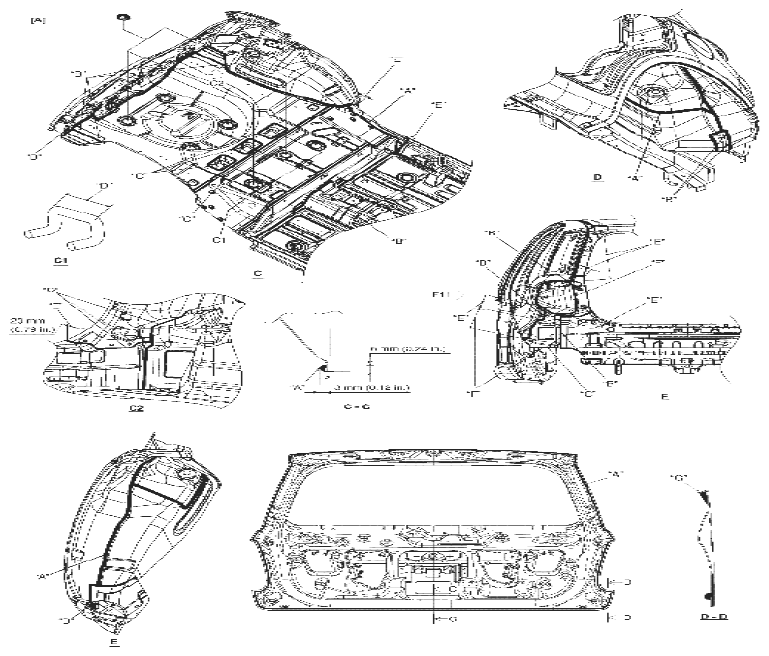

Fig 4: Identifying Sealant Application Areas (4 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

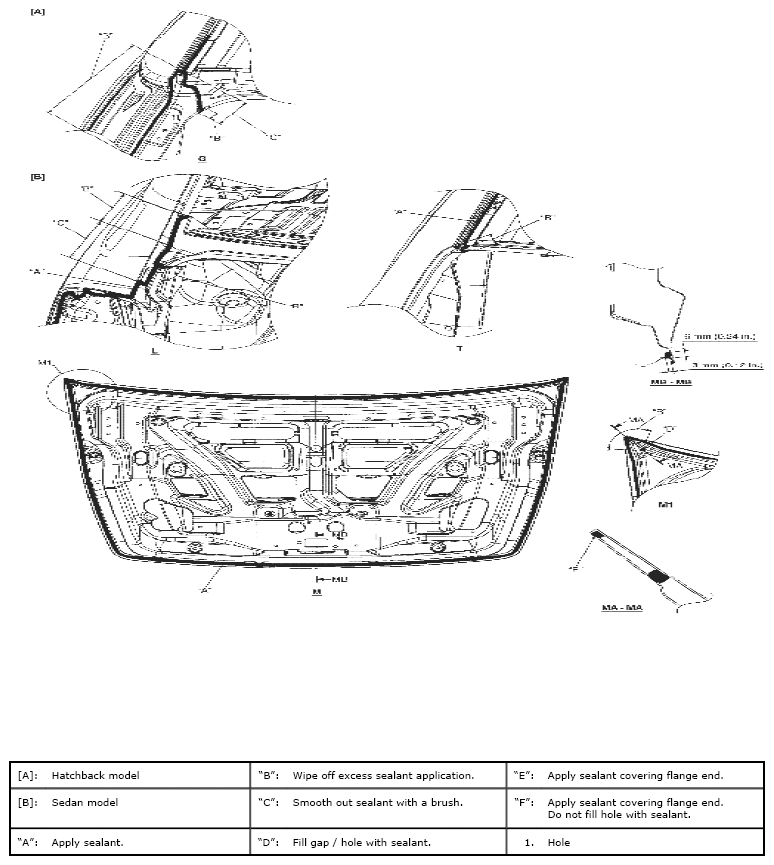

Fig 5: Identifying Sealant Application Areas (5 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

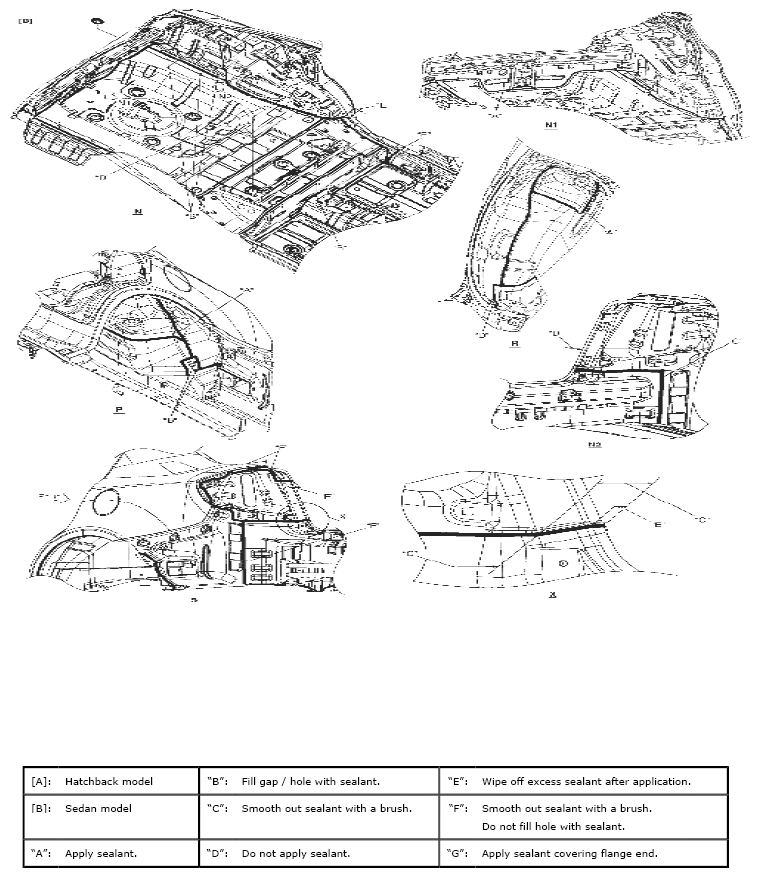

Fig 6: Identifying Sealant Application Areas (6 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

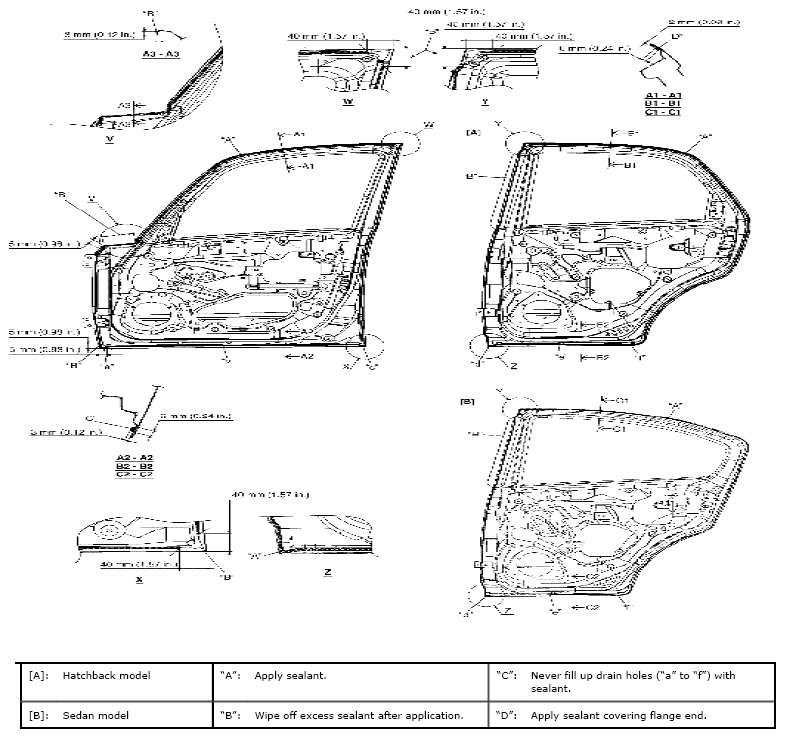

Fig 7: Identifying Sealant Application Areas (7 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.

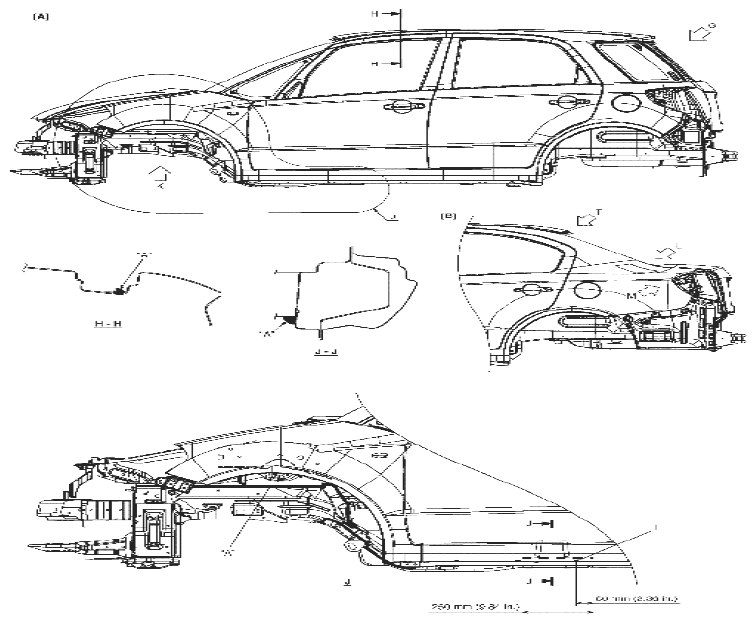

Fig 8: Identifying Sealant Application Areas (8 Of 8)

Courtesy of SUZUKI OF AMERICA CORP.
