Under Body (Hatchback Model)

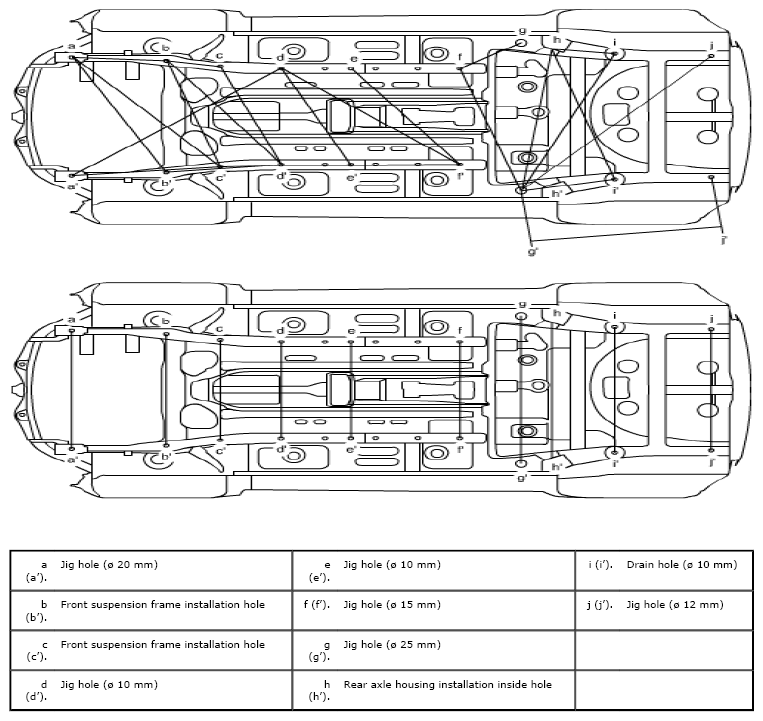

Hole to hole distance
HOLE DISTANCE SPECIFICATION
| a-b: 529 mm (20.827 in.) | c-d': 849 mm (33.425 in.) | g'-h: 1,184 mm (46.614 in.) |
| a-b': 1,066 mm (41.969 in.) | c'-d': 318 mm (12.520 in.) | g'-i: 1,274 mm (50.157 in.) |
| a-c': 1,167 mm (45.945 in.) | d-e': 850 mm (33.465 in.) | g'-i': 666 mm (26.220 in.) |
| a'-d: 1,386 mm (54.567 in.) | d-f': 1,204 mm (47.402 in.) | g'-j: 1,579 mm (62.165 in.) |
| a'-c': 773 mm (30.433 in.) | d'-e': 361 mm (14.213 in.) | g'-j': 1,163 mm (45.787 in.) |
| b-c: 377 mm (14.843 in.) | e-f': 955 mm (37.598 in.) | h-i: 331 mm (13.031 in.) |
| b-c': 931 mm (36.654 in.) | e'-f': 565 mm (22.244 in.) | h-i': 1,102 mm (43.386 in.) |
| b-d': 1,064 mm (41.890 in.) | f-g: 261 mm (10.276 in.) | |
| b'-d': 663 mm (26.102 in.) | f-g': 986 mm (38.819 in.) |
Hole to hole distance
HOLE DISTANCE SPECIFICATION
| a-a': 951 mm (37.441 in.) | e-e': 770 mm (30.315 in.) | i-i': 1,006 mm (39.606 in.) |
| b-b': 900 mm (35.433 in.) | f-f': 770 mm (30.315 in.) | j-j': 972 mm (38.268 in.) |
| c-c': 805 mm (31.693 in.) | g-g': 1,174 mm (46.220 in.) | |
| d-d': 770 mm (30.315 in.) | h-h': 1,098 mm (43.228 in.) |
Hole to hole distance
HOLE DISTANCE SPECIFICATION
| a-b: 489 mm (19.252 in.) | d-e: 360 mm (14.173 in.) | g-h: 325 mm (12.795 in.) |
| b-c: 280 mm (11.024 in.) | e-f: 565 mm (22.244 in.) | g-i: 644 mm (25.354 in.) |
| c-d: 316 mm (12.441 in.) | f-g: 155 mm (6.102 in.) | g-j: 1,145 mm (45.079 in.) |

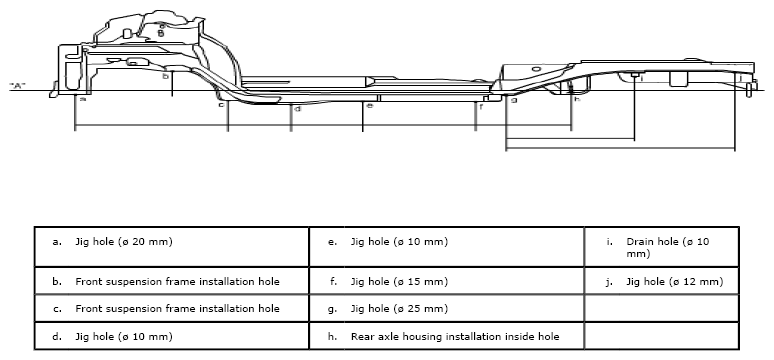

Projection dimension from standard line "A"
PROJECTION DIMENSION SPECIFICATION
| a: -31 mm (-1.220 in.) | e: -91 mm (-3.583 in.) | i: 112 mm (4.409 in.) |
| b: 172 mm (6.772 in.) | f: -89 mm (-3.504 in.) | j: 145 mm (5.709 in.) |
| c: -78 mm (-3.071 in.) | g: -34 mm (-1.339 in.) | |
| d: -112 mm (-4.409 in.) | h: 36 mm (1.417 in.) |
