Trunk Lid Lock Assembly Removal and Installation (Sedan): Removal

  1. Remove trunk lid trim (1) from trunk lid panel (if equipped).

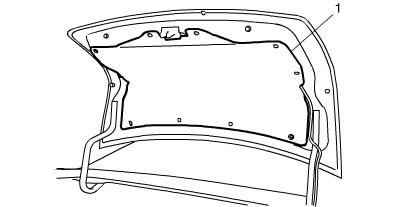

    2. Fig 1: Removing Trunk Lid Trim
    G00425764Courtesy of SUZUKI OF AMERICA CORP.
  2. Disconnect trunk lid latch control rod (1) from trunk lid.
  3. (Keyless start model) Disconnect trunk lid latch actuator coupler (3).
  4. (Keyless start model) Remove trunk lid latch actuator (2) from trunk lid.

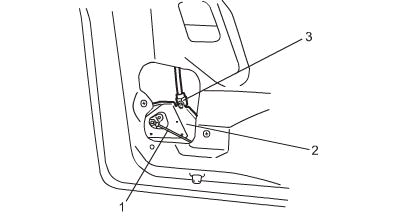

    5. Fig 2: Disconnecting Trunk Lid latch Control Rod (1) From Trunk Lid
    G00425765Courtesy of SUZUKI OF AMERICA CORP.
  5. (Non-keyless start model) Remove trunk lid lock cylinder (1) from trunk lid.

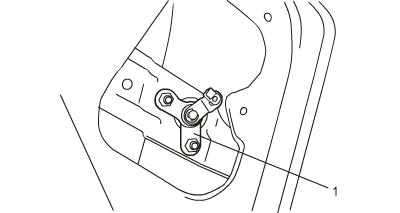

    6. Fig 3: Removing Trunk Lid Lock Cylinder (1) From Trunk Lid (Non-Keyless)
    G00425766Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove trunk lid latch bolt (1), and then disconnect trunk lid opener wire (2) from trunk lid latch (4).
  7. Remove trunk lid latch (4) with trunk lid latch control rod (3).

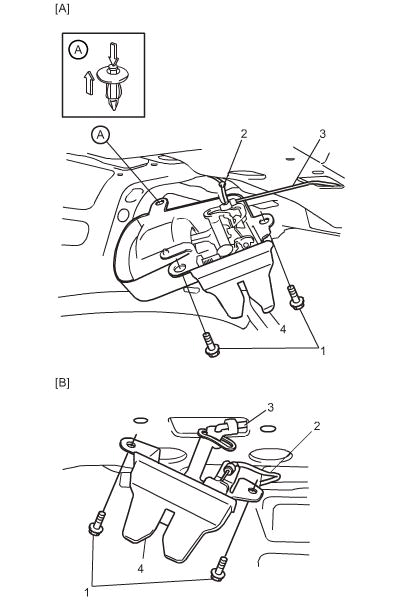

    8. Fig 4: Removing Trunk Lid Latch Bolt (1) And Disconnecting Trunk Lid Opener Wire
    G00425767Courtesy of SUZUKI OF AMERICA CORP.
[A]: Trunk lid latch with release lever
[B]: Trunk lid latch without release lever
