Trunk Lid Lock Assembly Removal and Installation (Sedan): Installation

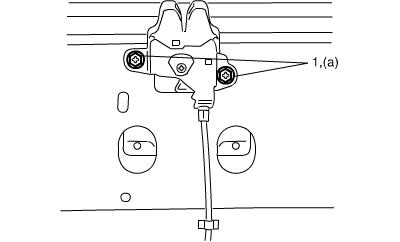

- Reverse removal procedure to install trunk lid lock assembly noting the following instruction. Tighten trunk lid latch bolt (1) to specified torque. Tightening torque: Trunk lid latch bolt (a): 4.5 N.m (0.45 kg-m, 3.5 lbf-ft).
Courtesy of SUZUKI OF AMERICA CORP.

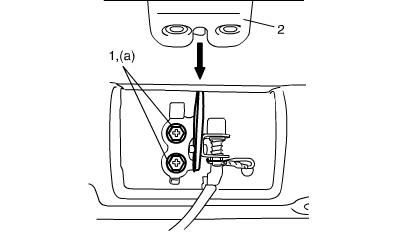

- Adjust trunk lid latch striker (1) so that its center aligns with the center of groove in trunk lid latch base (2). Tightening torque: Trunk lid latch striker bolt (a): 4.5 N.m (0.45 kg-m, 3.5 lbf-ft).
Courtesy of SUZUKI OF AMERICA CORP.
