Key Indicator Light Circuit Check (Key Indicator Light Doesn't Light when Ignition Knob Switch is Pushed): Wiring Diagram

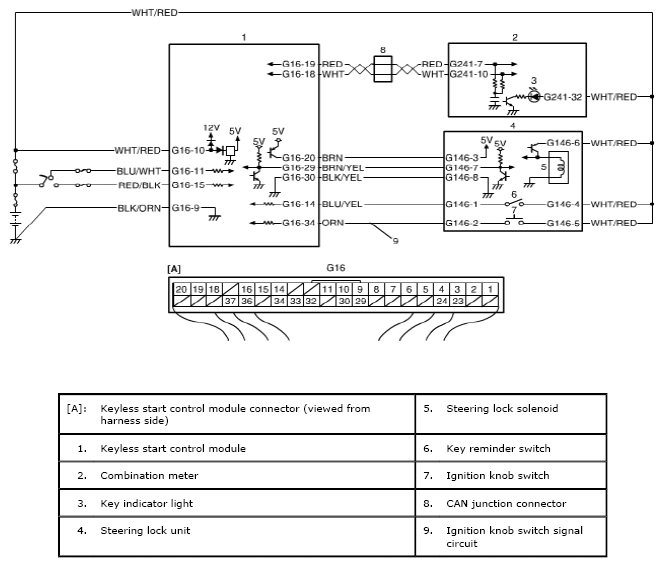

Fig 1: Key Indicator Light Circuit Check - Wiring Diagram
