Immobilizer Control System Wiring Circuit Diagram

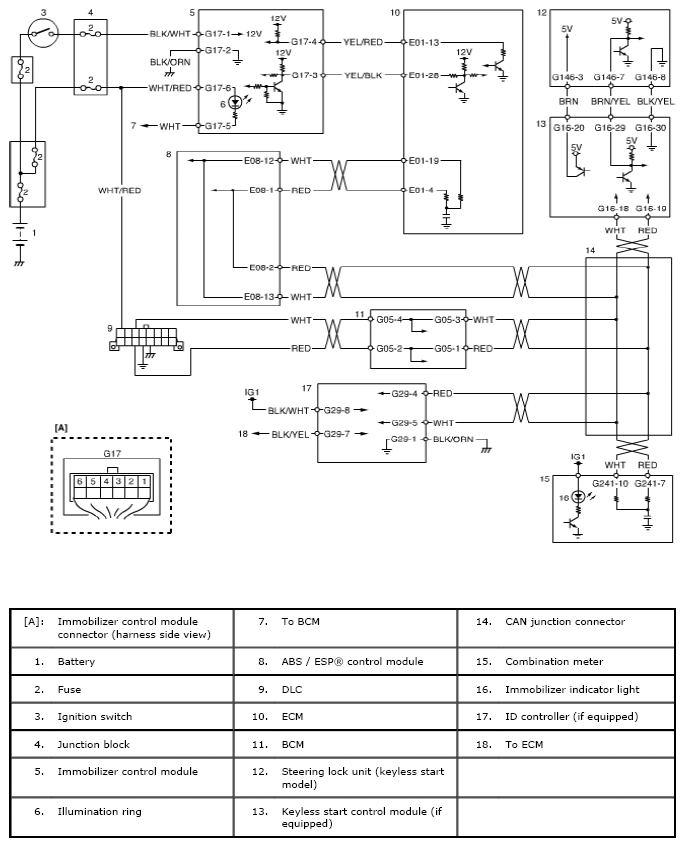

Fig 1: Immobilizer Control System Wiring Circuit Diagram
G05472622Courtesy of SUZUKI OF AMERICA CORP.
