ICM Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Remove dash side trim (4) and steering column hole cover (3).
Remove steering column covers (1).
Turn steering wheel to access steering column cover screws (2).

Fig 1: Identifying Steering Column Covers, Screws, Dash Side Trim And Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove knee protector plate (if equipped).
Remove engine start knob (keyless start model).
Disconnect connector (1) from ICM (2).
Remove a screw (3) from ICM.

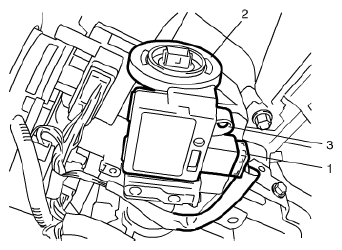

Fig 2: Identifying Connector, ICM And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Remove ICM from steering lock assembly or steering lock unit.

NOTE: The antenna part of ICM is fragile. Therefore, do not add strong power to the part or twist the part.
