Tail Light Relay, Headlight Relay, Front Fog Light Relay Inspection

1. Remove tail light relay (1), headlight relay and/or front fog light relay (4).

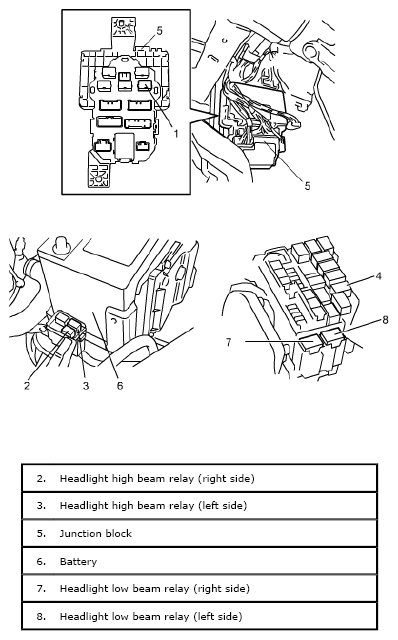

   Fig 1: Identifying Tail Light Relay, Headlight Relay And/Or Front Fog Light Relay

   Courtesy of SUZUKI OF AMERICA CORP.
2. Check that there is no continuity between terminal "3" and "4". If there is continuity, replace relay.
3. Connect battery positive (+) terminal to terminal "2" of relay.
4. Connect battery negative (-) terminal to terminal "1" of relay.
5. Check continuity between terminal "3" and "4". If there is no continuity when relay is connected to the battery, replace relay.

Fig 2: Checking Continuity Between Terminal 3 And 4

Courtesy of SUZUKI OF AMERICA CORP.
