Control Unit: Service and Repair

4WD Control Module Removal and Installation

Removal
1. Disconnect negative cable at battery.
2. Remove center ventilation louver.

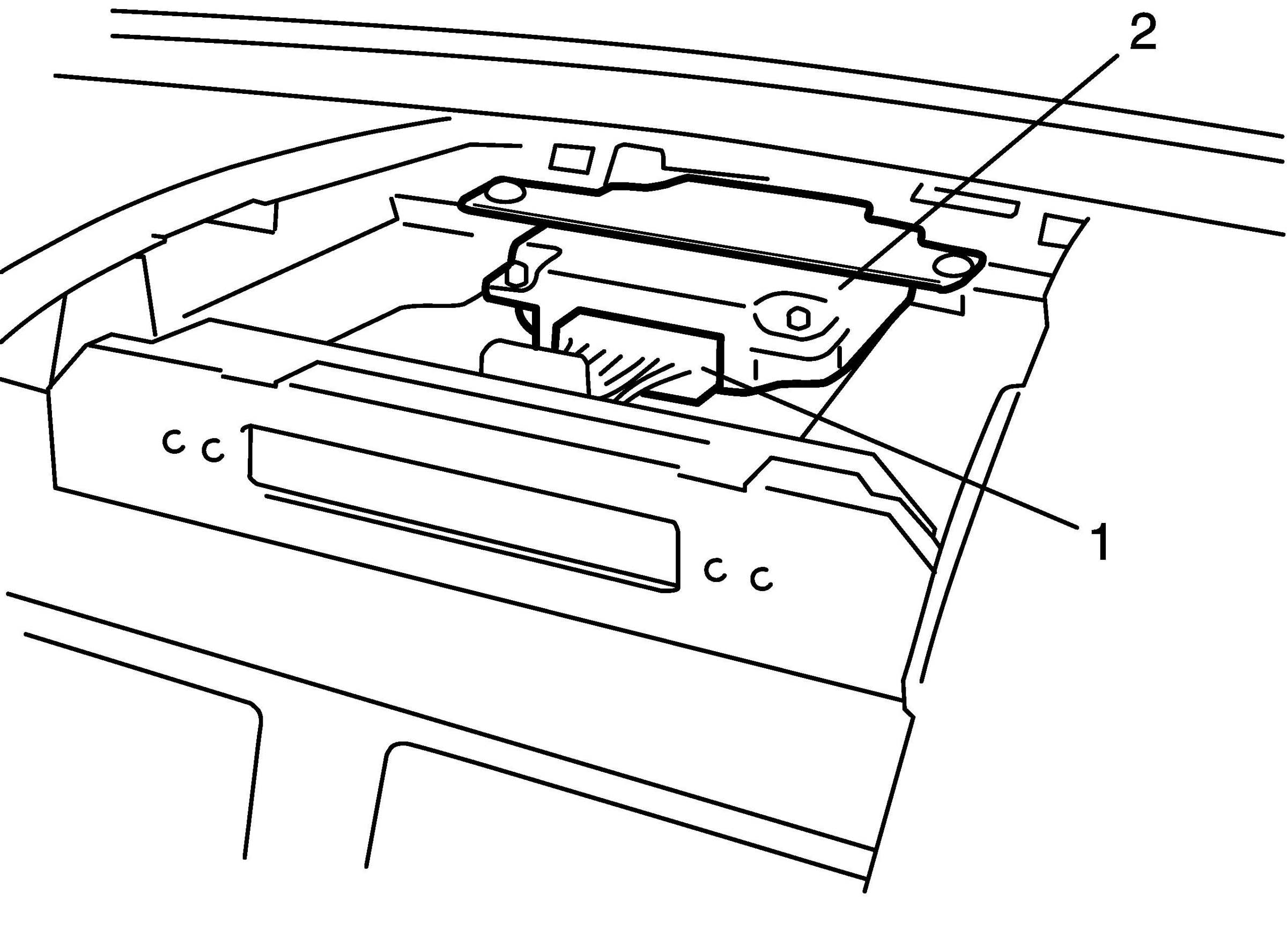

3. Disconnect connector (1) from 4WD control module.
4. Remove 4WD control module (2).





Installation
Reverse removal procedure for installation.
