Instruments - Navigation Door Noisy Opening/Closing

Section Title: Body, Cab and Accessories

TSB No.: TS 05 11248

Division: Automotive

Category: Technical

SUBJECT:
NAVIGATION UNIT DOOR MAKES NOISE WHEN OPENING OR CLOSING

MODEL(S):
SX4 (RW420) EQUIPPED WITH NAVIGATION

YEAR:
2008~2009

CONDITION:

When the navigation unit lid is opening or closing, a grinding sound can be heard.

CAUSE:

The pivot spring is vibrating on the pivot shaft when the door is opening or closing.

CORRECTION:

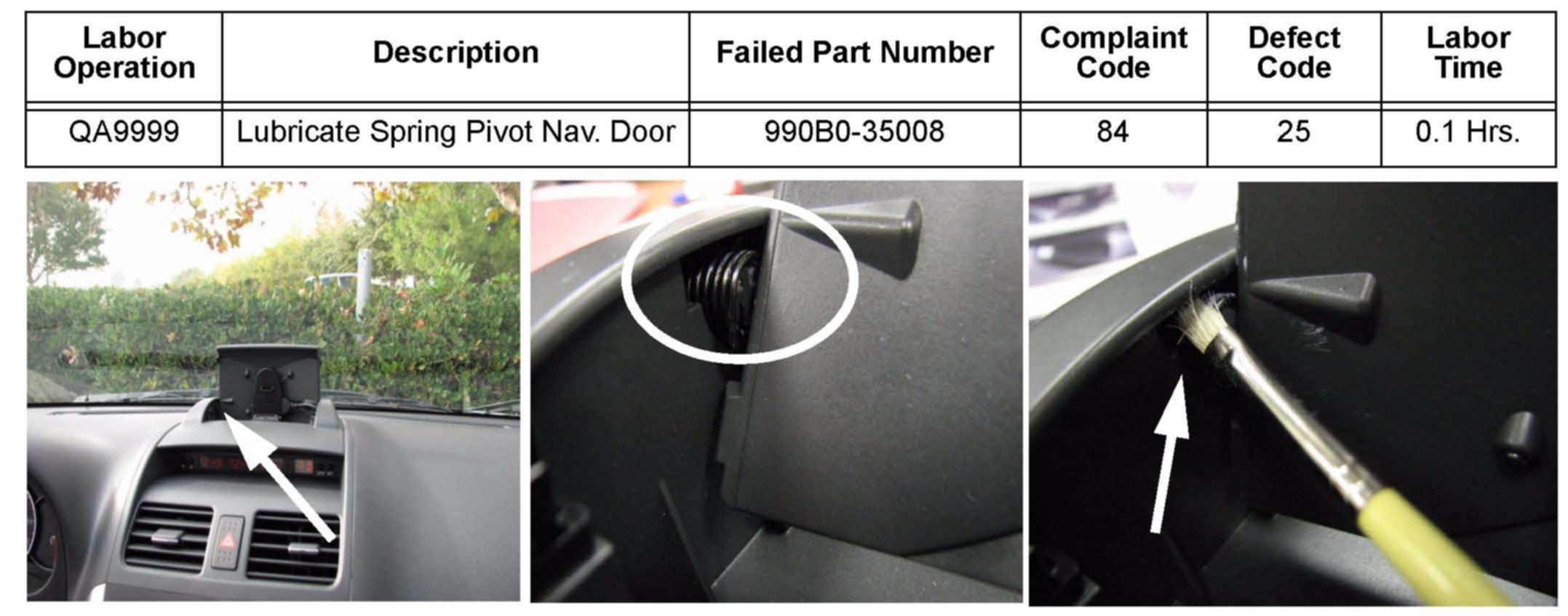

Apply a small amount of grease with a small brush to the spring pivot shaft. See below.

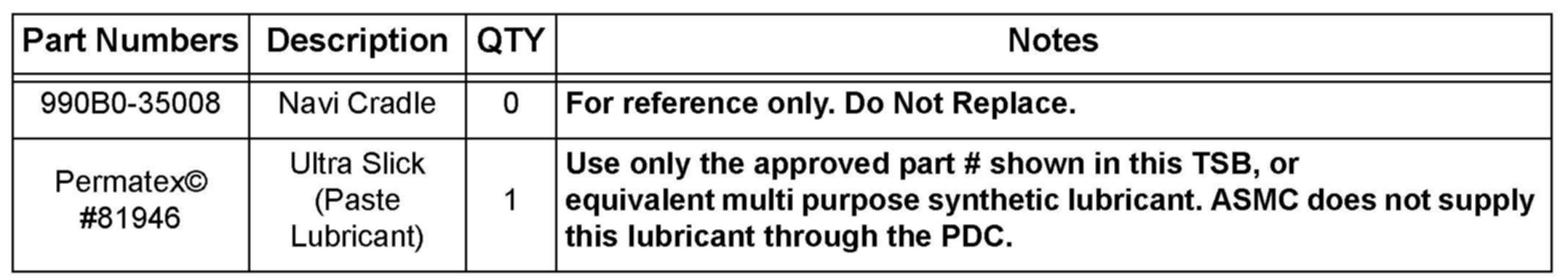

PART(S) INFORMATION





WARRANTY CLAIM INFORMATION
