Fluid - Transfer Case: Testing and Inspection

Transfer Oil Level Check
1. Lift up vehicle and check oil leakage.

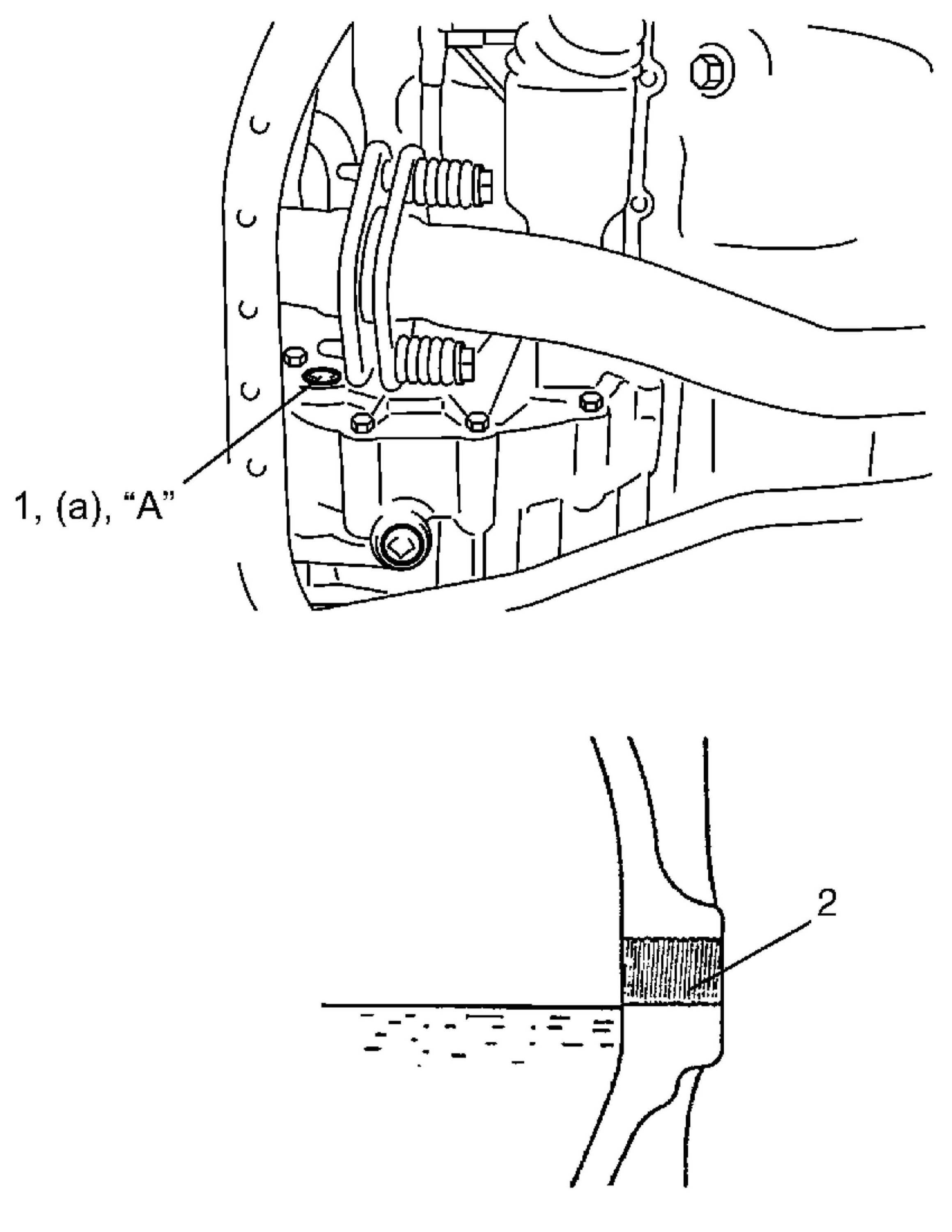

2. Remove oil level / filler plug (1) and check oil level is lower end of oil level / filler plug hole (2).
If oil is insufficient, pour specified oil up to plug hole.
3. Apply sealant to thread of level / filler plug, and then tighten it to specified torque.
"A": Sealant 99000-31260SUZUKI Bond No.1217G
Tightening torque
Transfer oil level / filler plug a: 23 Nm (2.3 kgf-m, 17.0 ft. lbs.)
