License Plate Lamp: Service and Repair

LICENSE LIGHT REMOVAL AND INSTALLATION

Removal
1. Disconnect negative (-) cable at battery.
2. Remove rear end door license garnish referring to Rear End Door Lock Assembly Components.

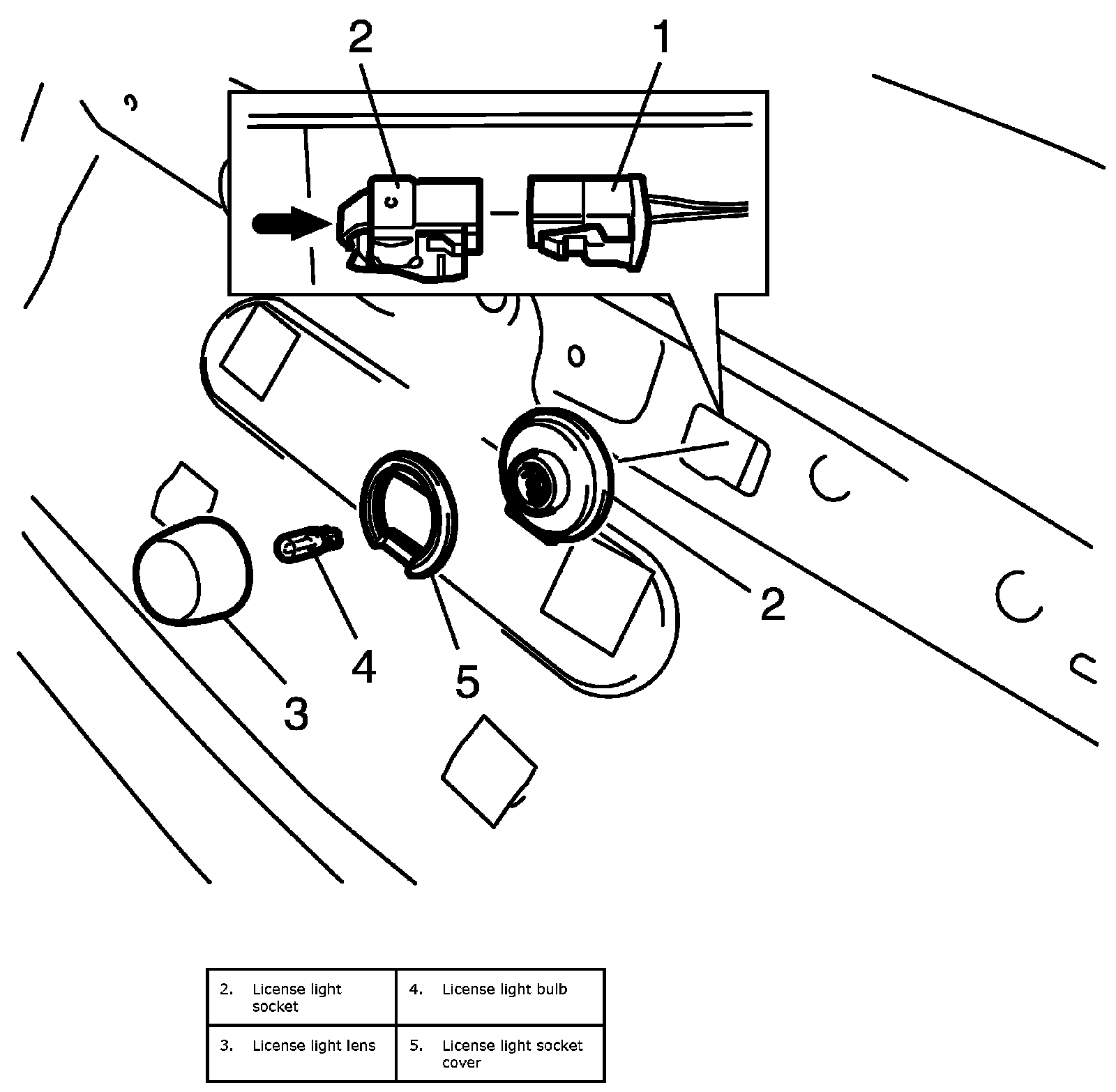

3. Disconnect coupler (1) from license light.
4. Push locking part to arrow direction, and then remove license light.





Installation
Reverse removal procedure for installation.
