Refrigerant Temperature Sensor: Testing and Inspection

Thermal Switch Inspection

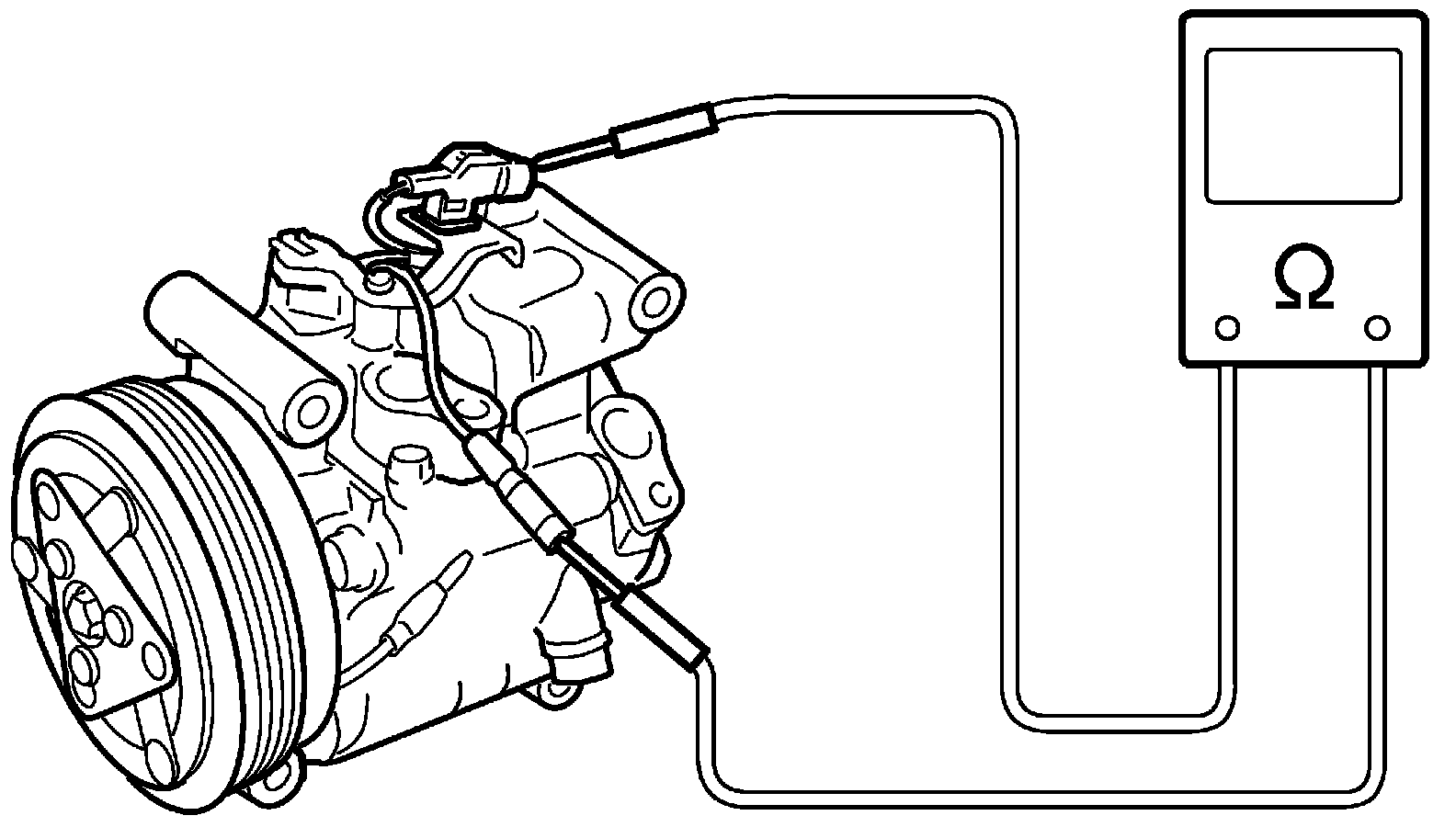

Measured thermal switch for resistance at 20 °C (68 °F)

Thermal switch resistance
Standard: 50 Mohms (DC 16 V, 5A at 20 °C (68 °F))
