Condenser Fan: Testing and Inspection

A/C Condenser Cooling Fan Control System Inspection

Wiring Diagram

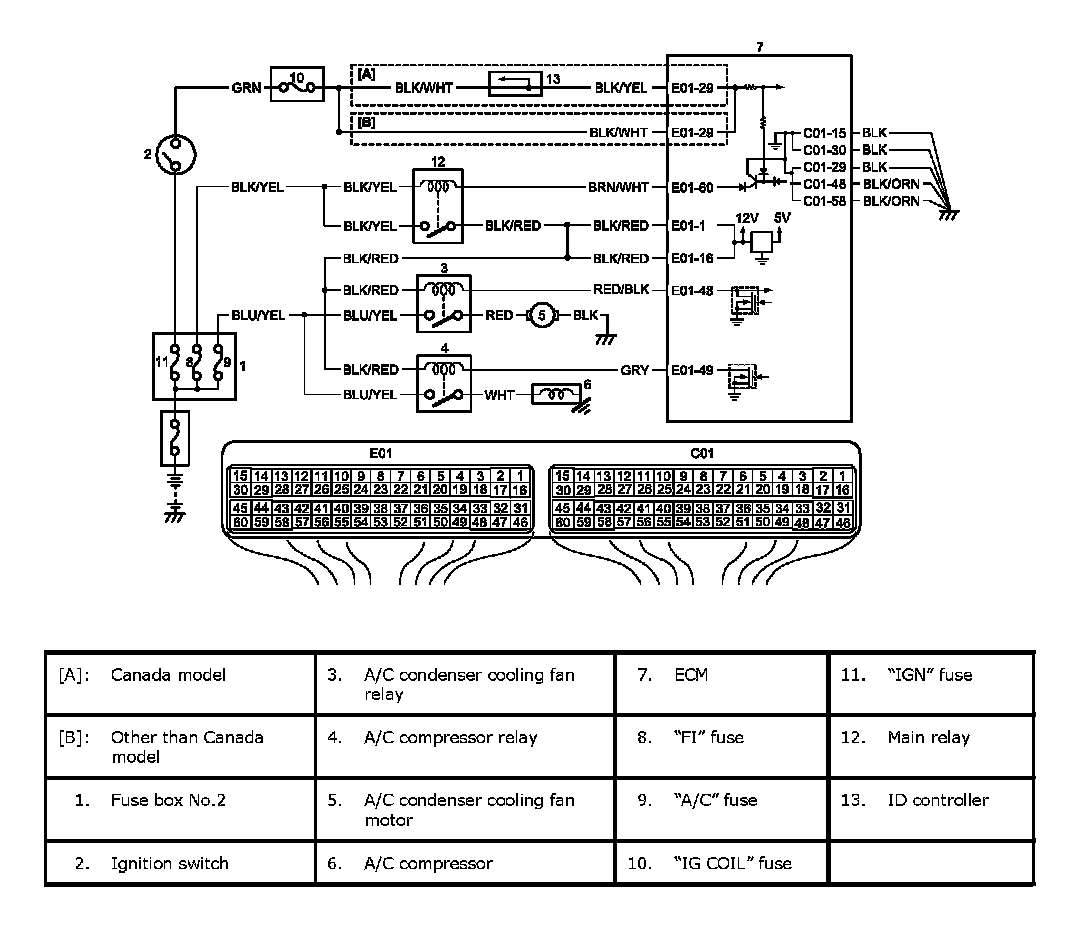

Wiring Diagram:





Troubleshooting

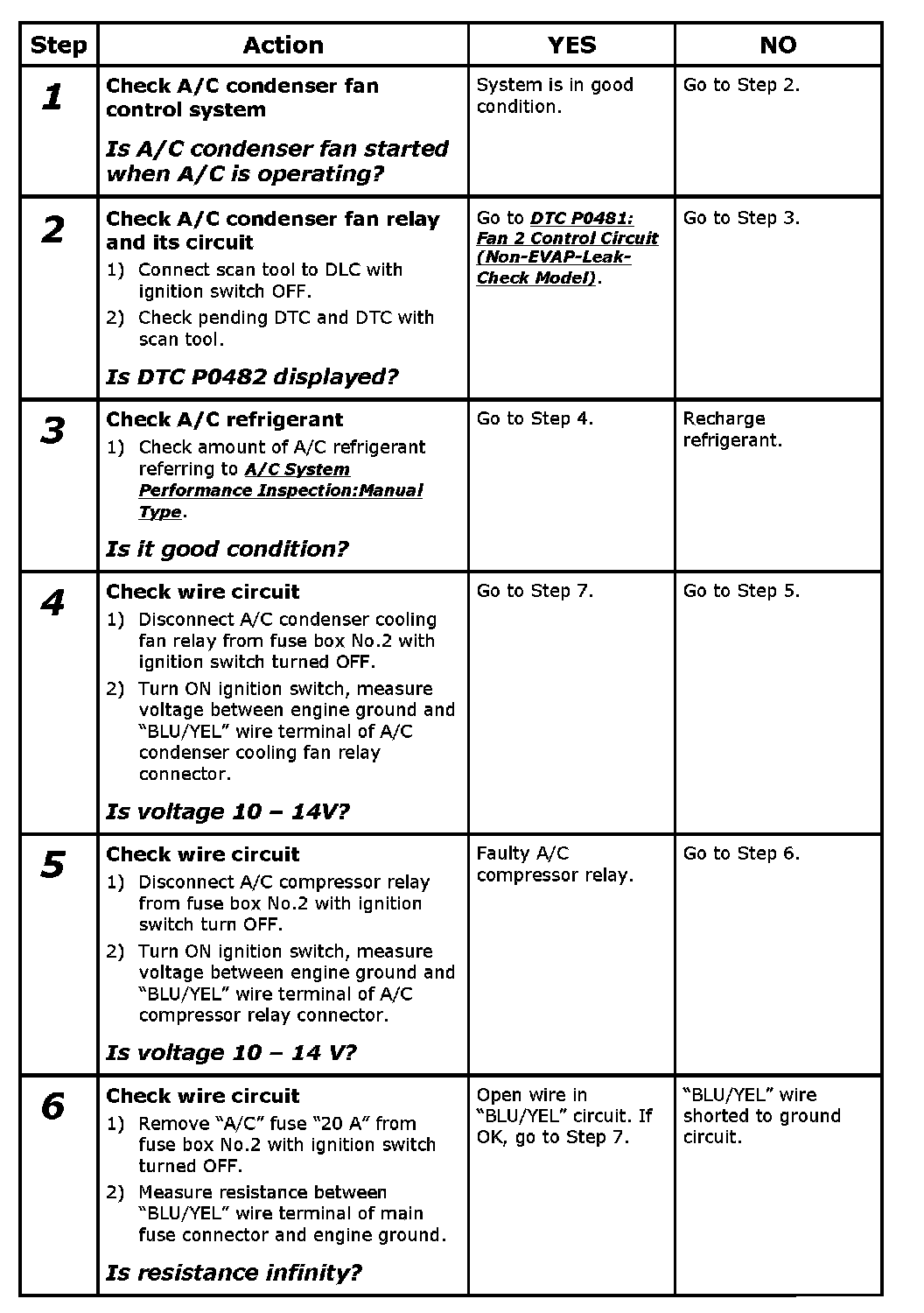

Step 1-6:

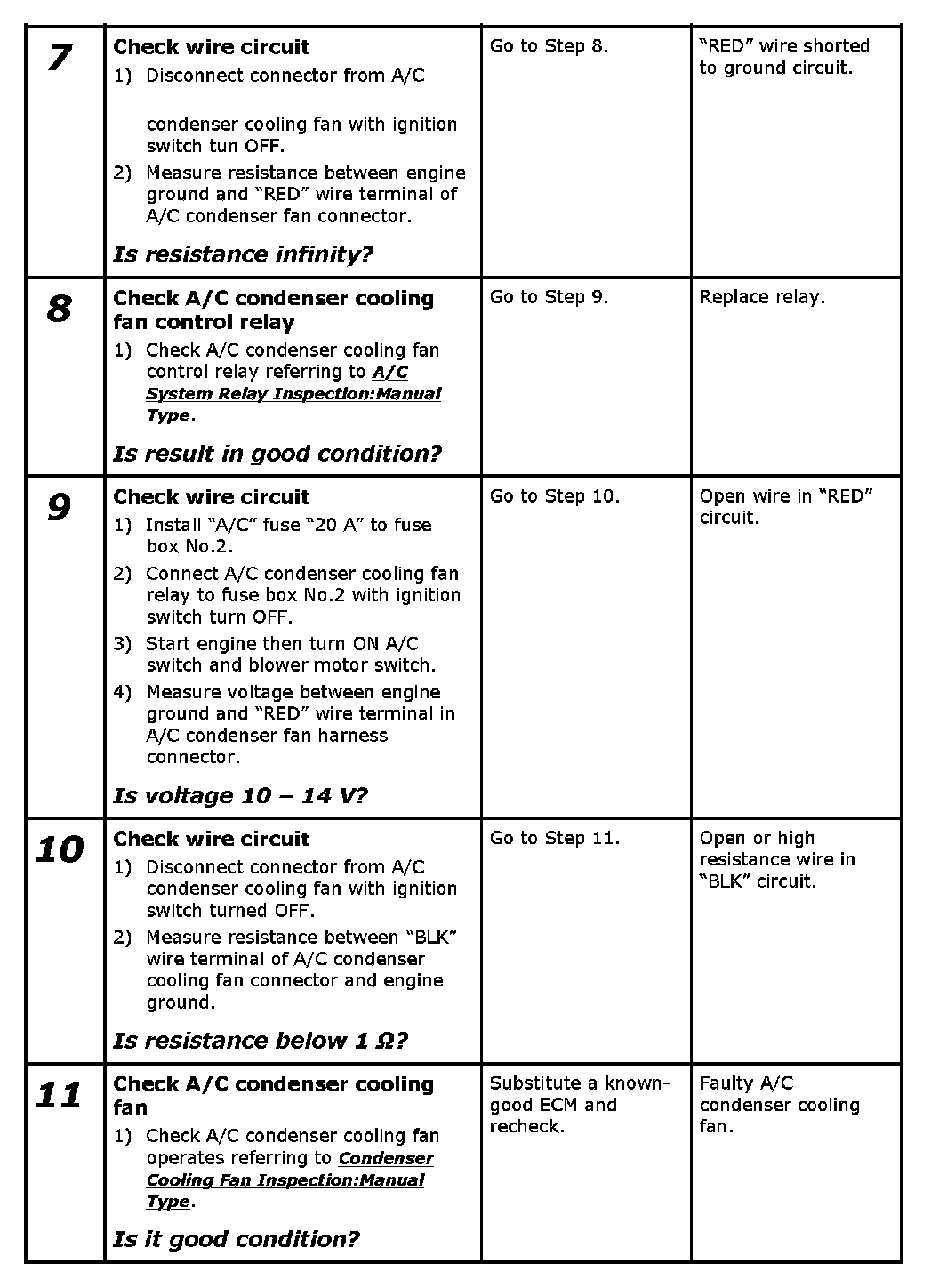

Step 7-11:
