L Connectors

L04 - L133:



L134 - L291:



L292 - L348:

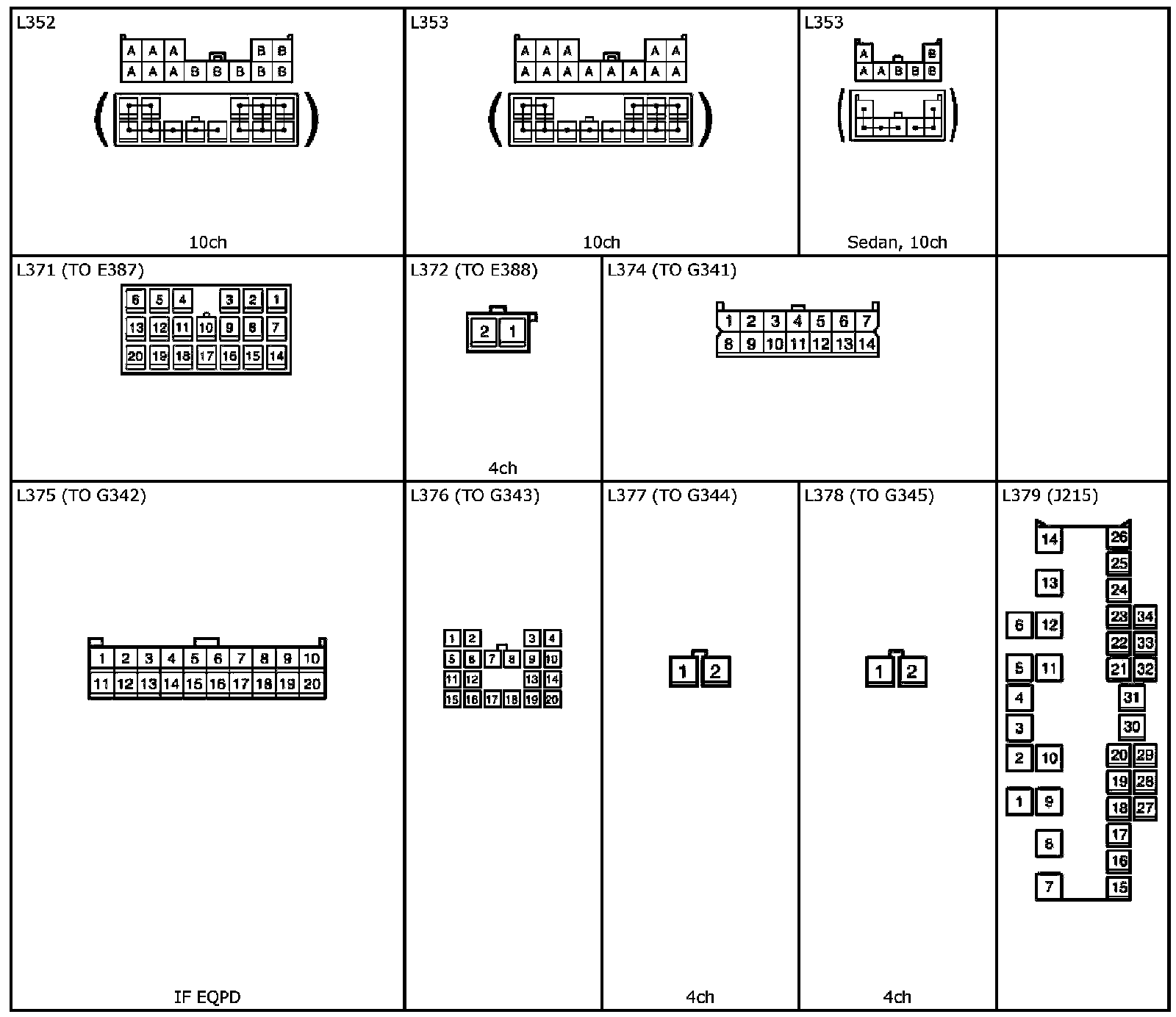

L352 - L379:



L380 - L394:



L395 - L408:



L04 - L285:



L290 - L347:



L348 - L377:



L378 - L383:



L383 - L406:



L405 - L397:
