Switch: Service and Repair

2WD/4WD Switch Removal and Installation

Removal
1. Disconnect negative cable at battery.

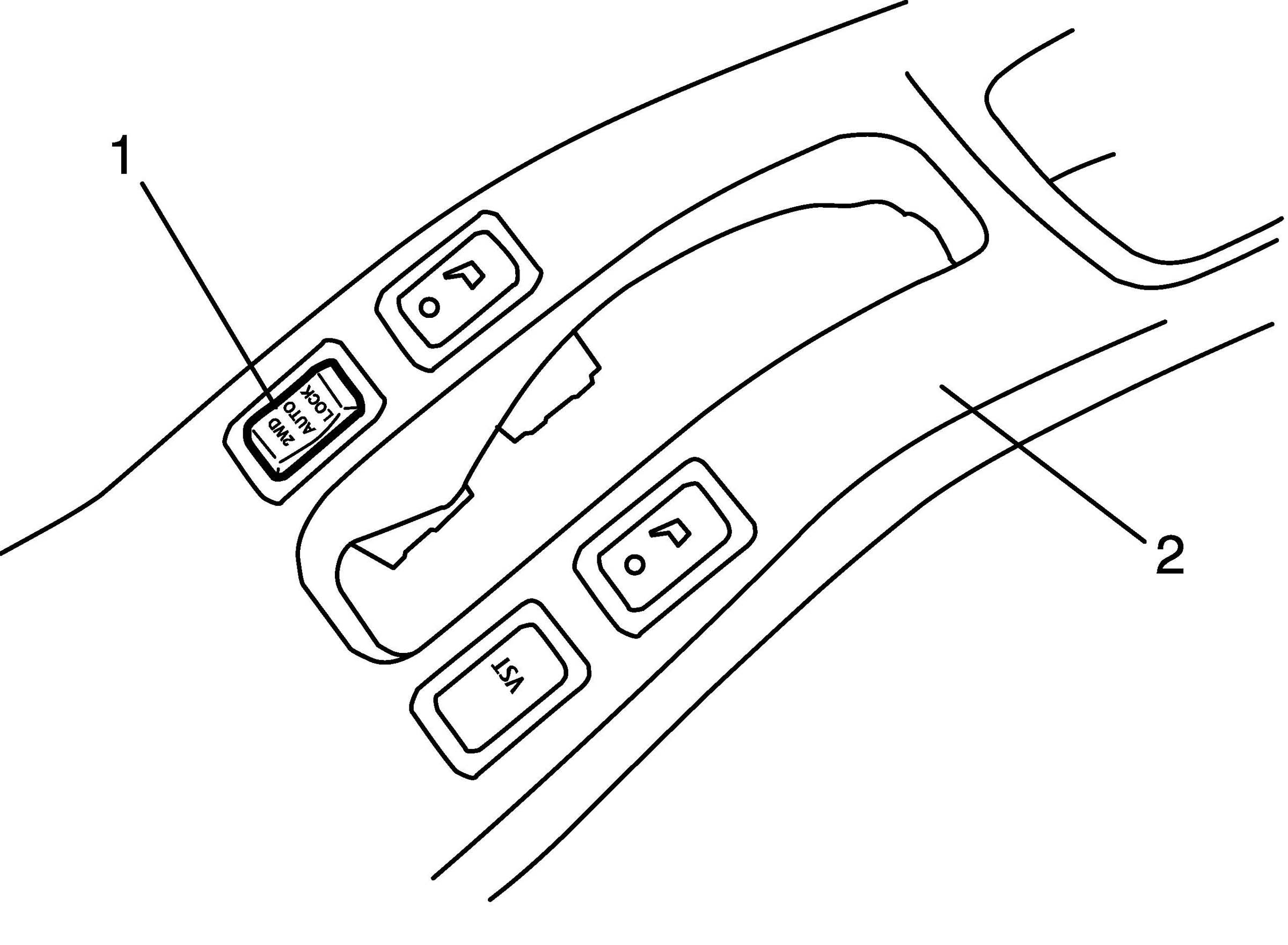

2. Remove console box (2).
3. Remove 2WD/4WD switch (1) from console box.





Installation
Reverse removal procedure for installation.
