Planetary Gear Disassembly and Reassembly
Planetary Gear Disassembly and ReassemblyDisassembly

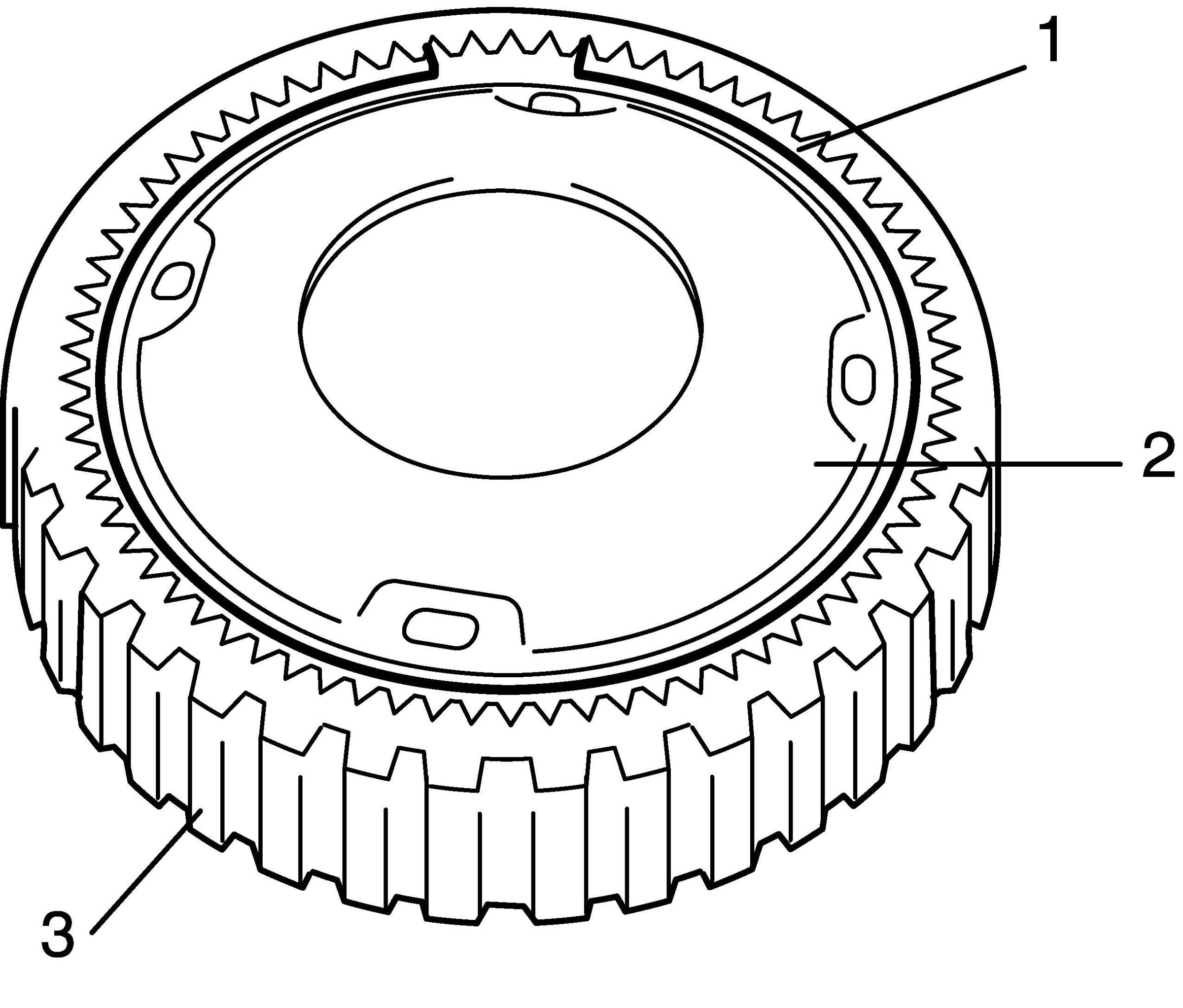

Rear planetary ring gear assembly
1. Remove snap ring (1) using flat end rod or the like.
2. Remove rear planetary ring gear flange (2) from rear planetary ring gear (3).
Reassembly
Rear planetary ring gear assembly
1. Install rear planetary ring gear flange (1) to rear planetary ring gear (2).
2. Install snap ring (3).
