4WD

CAN Communication System Description

When 4WD control module receive the signal of abnormal as following information, vehicle is not changed to 4WD-auto and 4WD-lock mode.

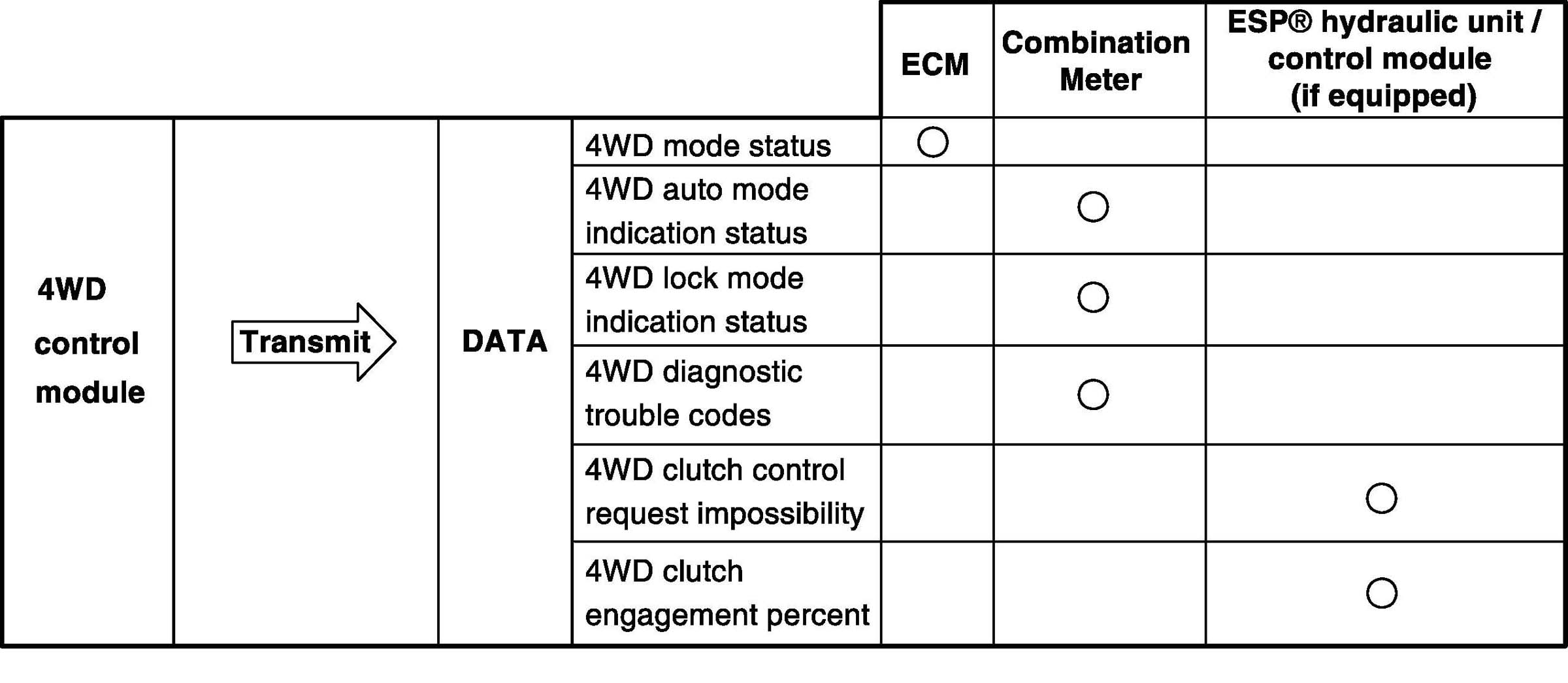

4WD Control Module Transmission Data

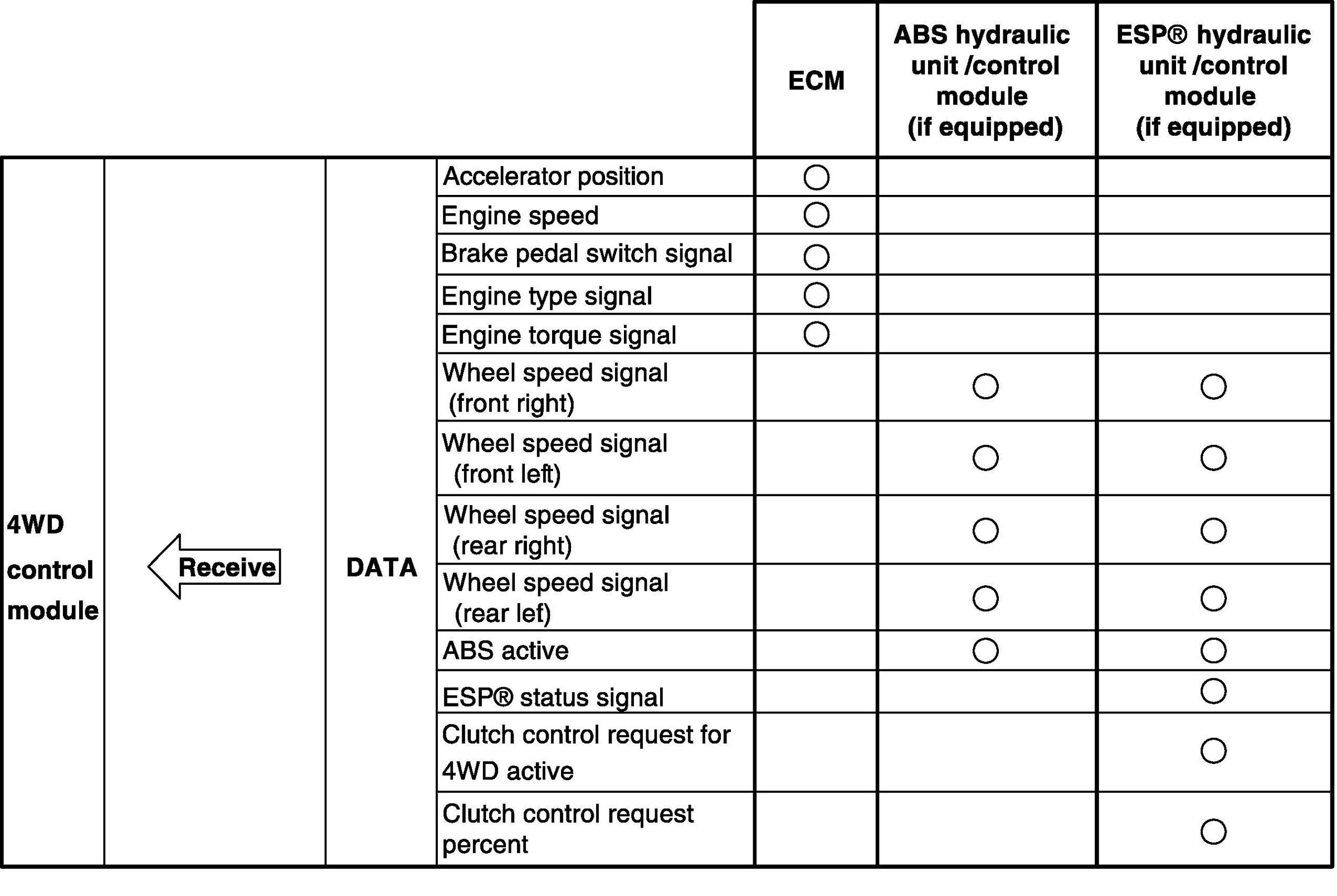

4WD Control Module Reception Data
