Engine - Corrected Cylinder Head Bolt Diameter

Division: Automotive
Category: Technical

Section Title: Engine
TSB No: TS 08 12220

SUBJECT:
SERVICE MANUAL UPDATE: CORRECTION OF THE NOMINAL DIAMETER FOR THE CYLINDER HEAD BOLT

MODEL(S): SX-4 (RW420)

YEAR: 2007-2009

CONDITION:

This bulletin is to inform you that there has been a correction made for the nominal diameter of the cylinder head bolt(s) mentioned in the Service Manual for the 2007, 2008, and 2009 SX-4 (RW420)

CORRECTION:

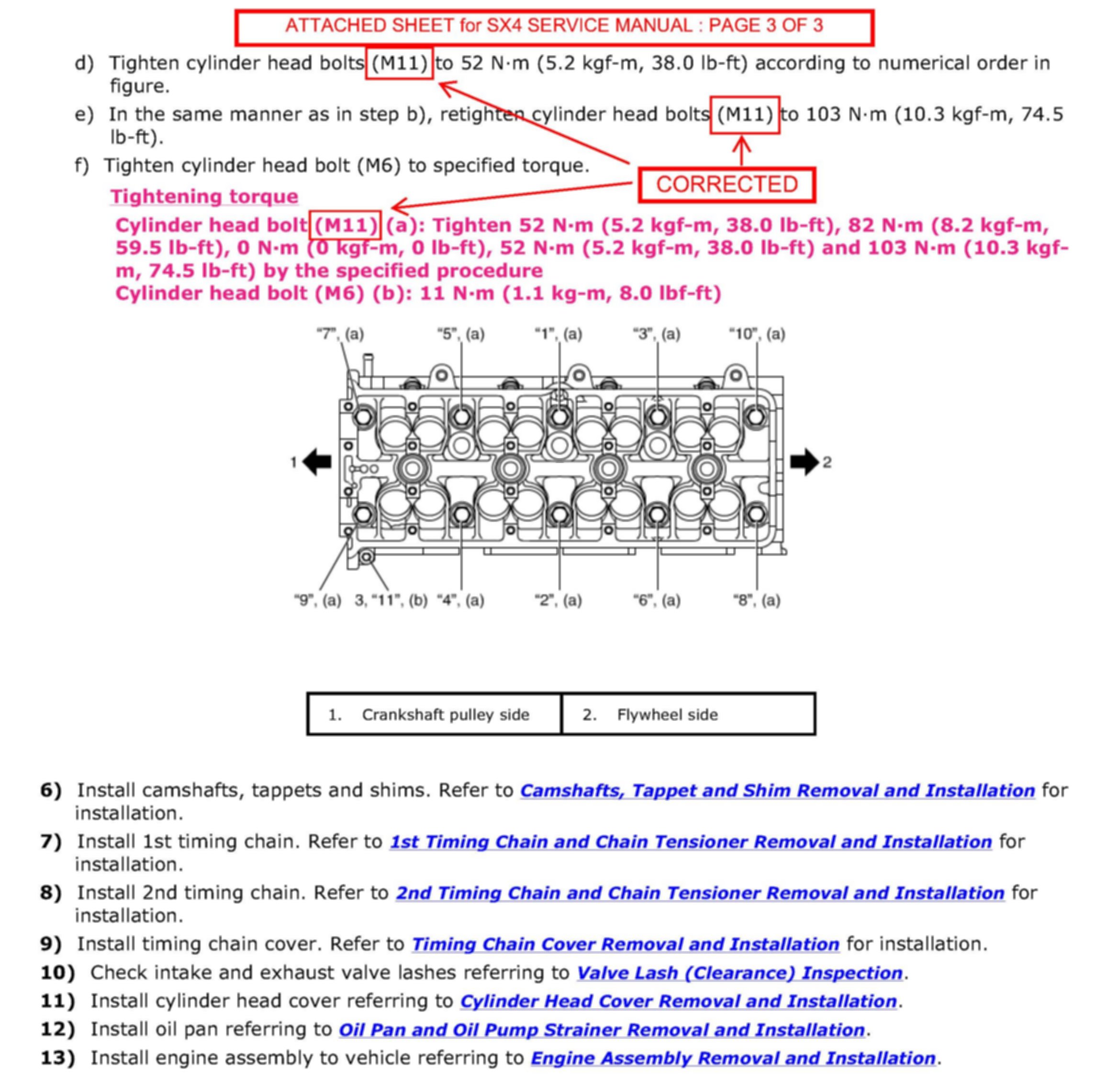

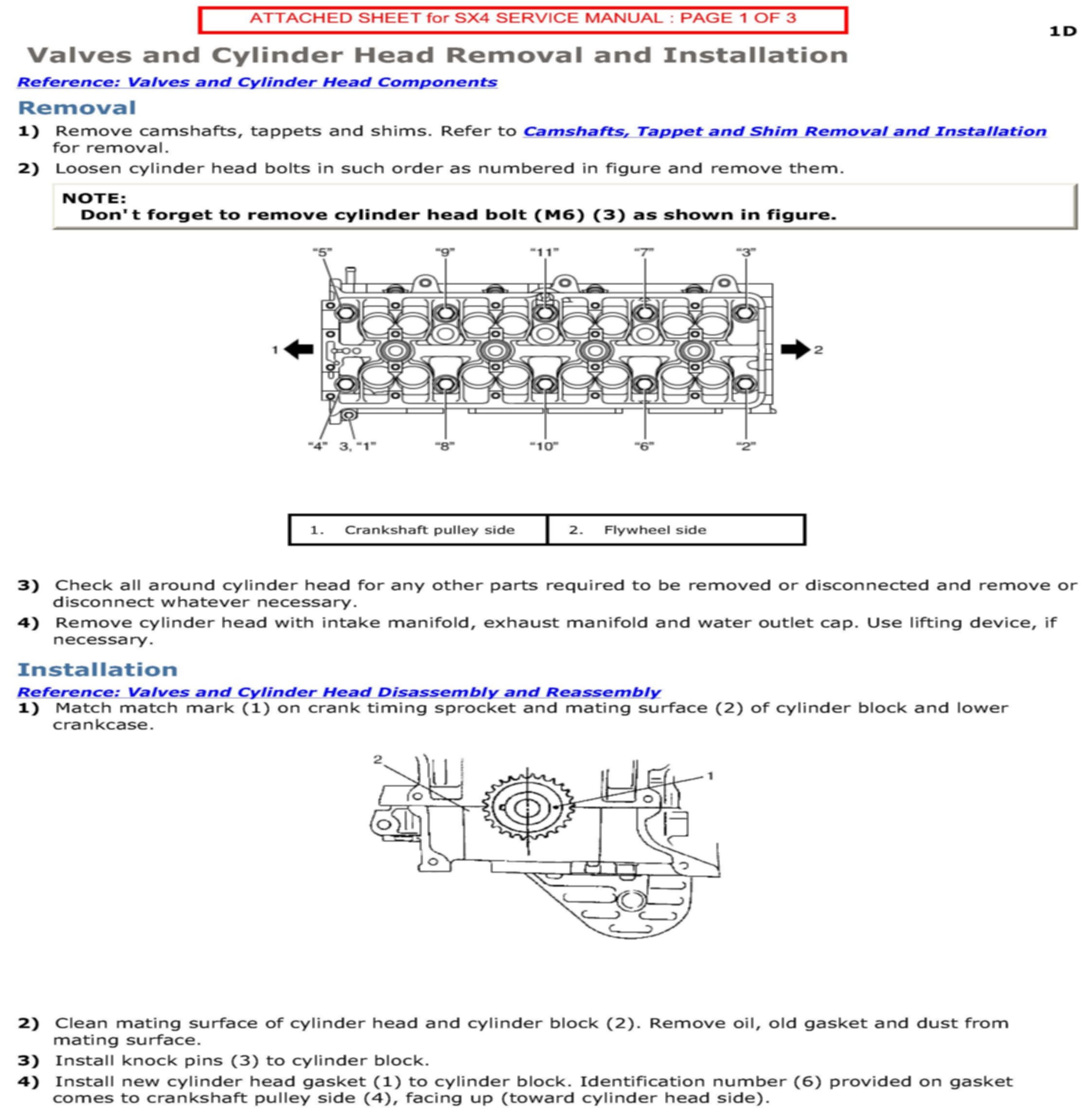

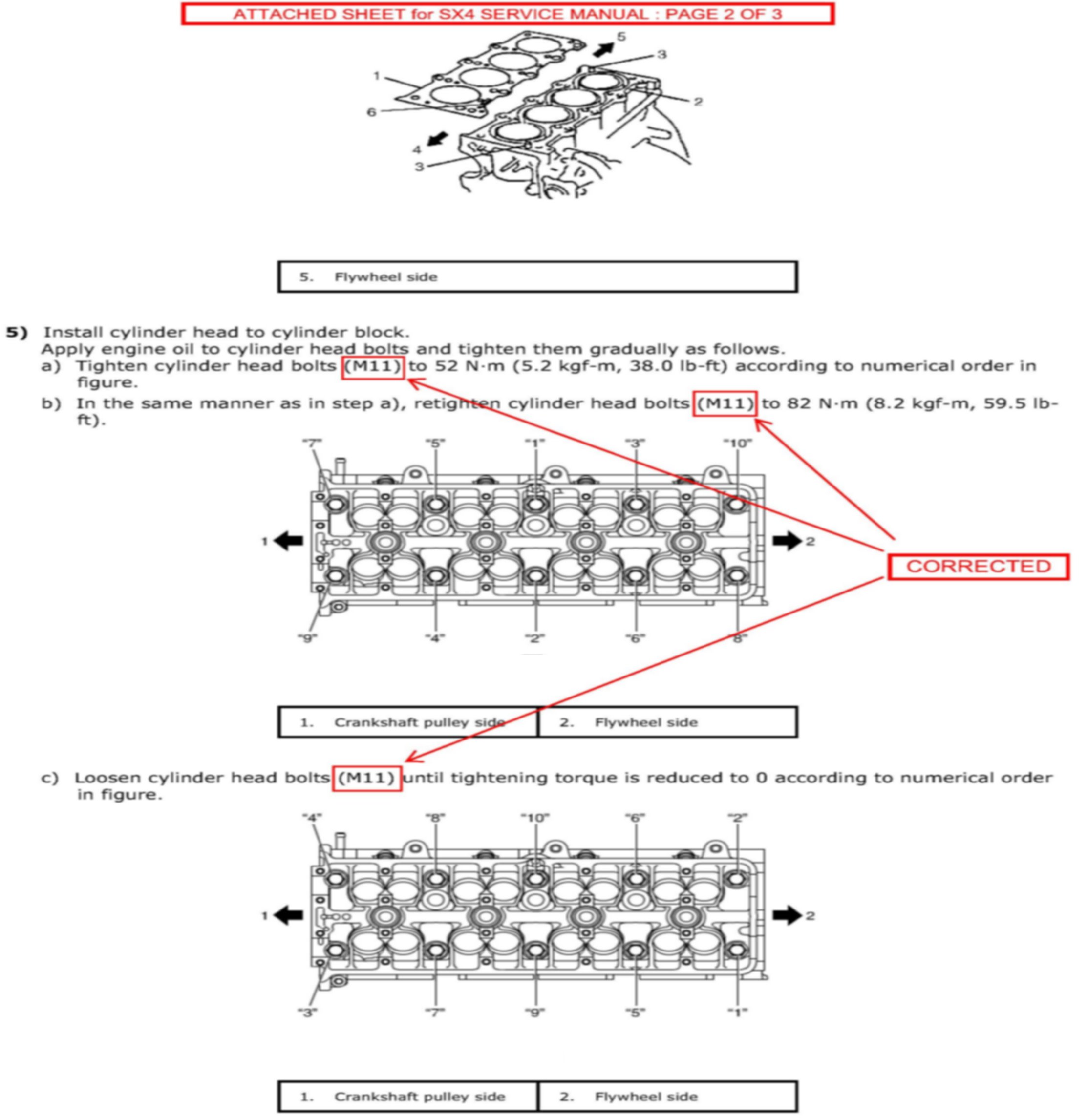

For users of the Online Service Manuals, please refer to the corrections illustrated in this bulletin that have been made to the service manual sections applying to the Valves and Cylinder Head Removal and Installation. The following table describes the Service Manual and the corresponding pages that were corrected.

For the printed version of the 2007 SX-4 (RW420) Service Manual, please print the attached pages and insert them to replace the affected pages in the book.





AFFECTED SERVICE MANUAL(S)
