OCM Power Supply and Ground Circuit Check

OCM Power Supply and Ground Circuit Check

Wiring Diagram

Wiring Diagram:

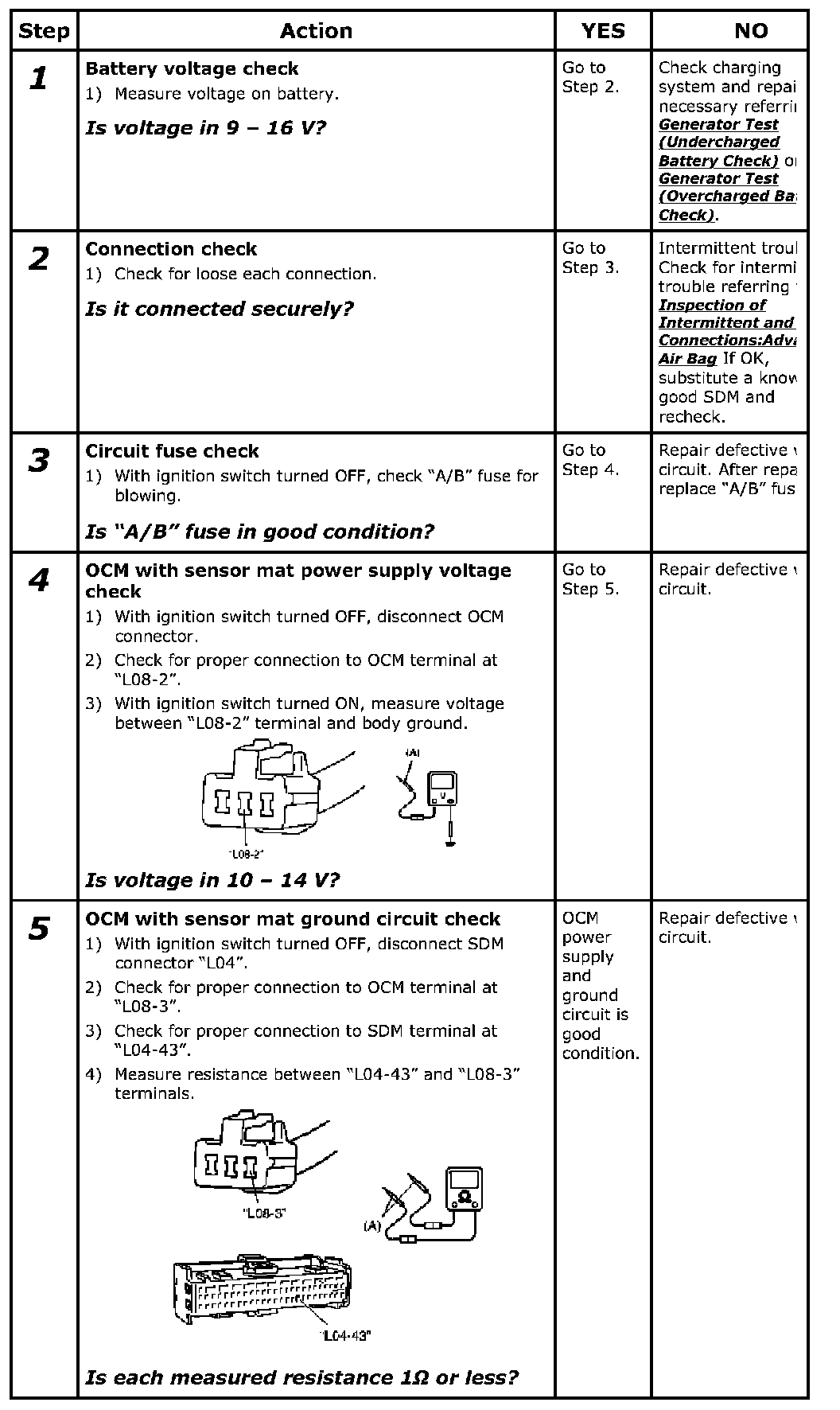

Troubleshooting

Step 1-5:
