E Connectors

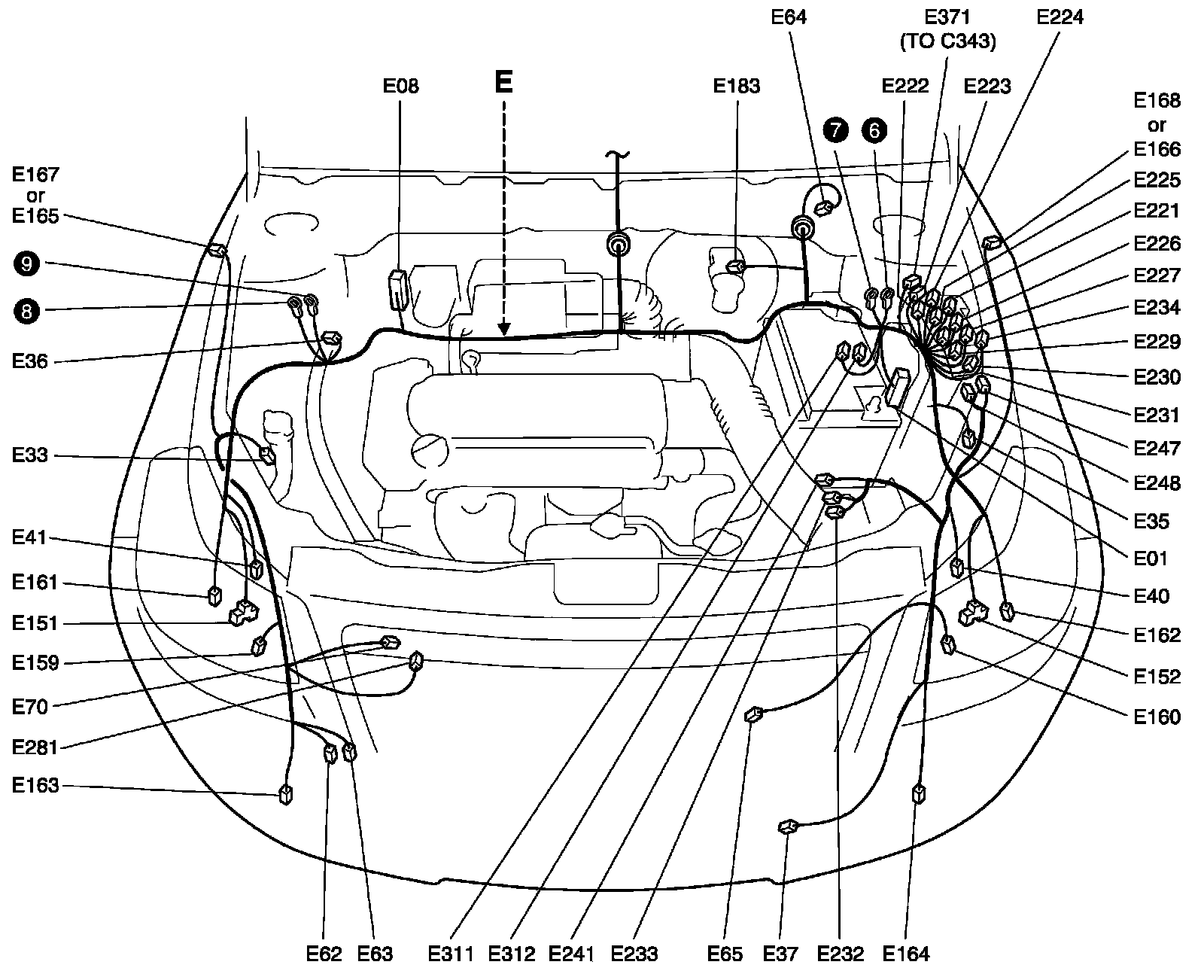

E: Main Harness View:

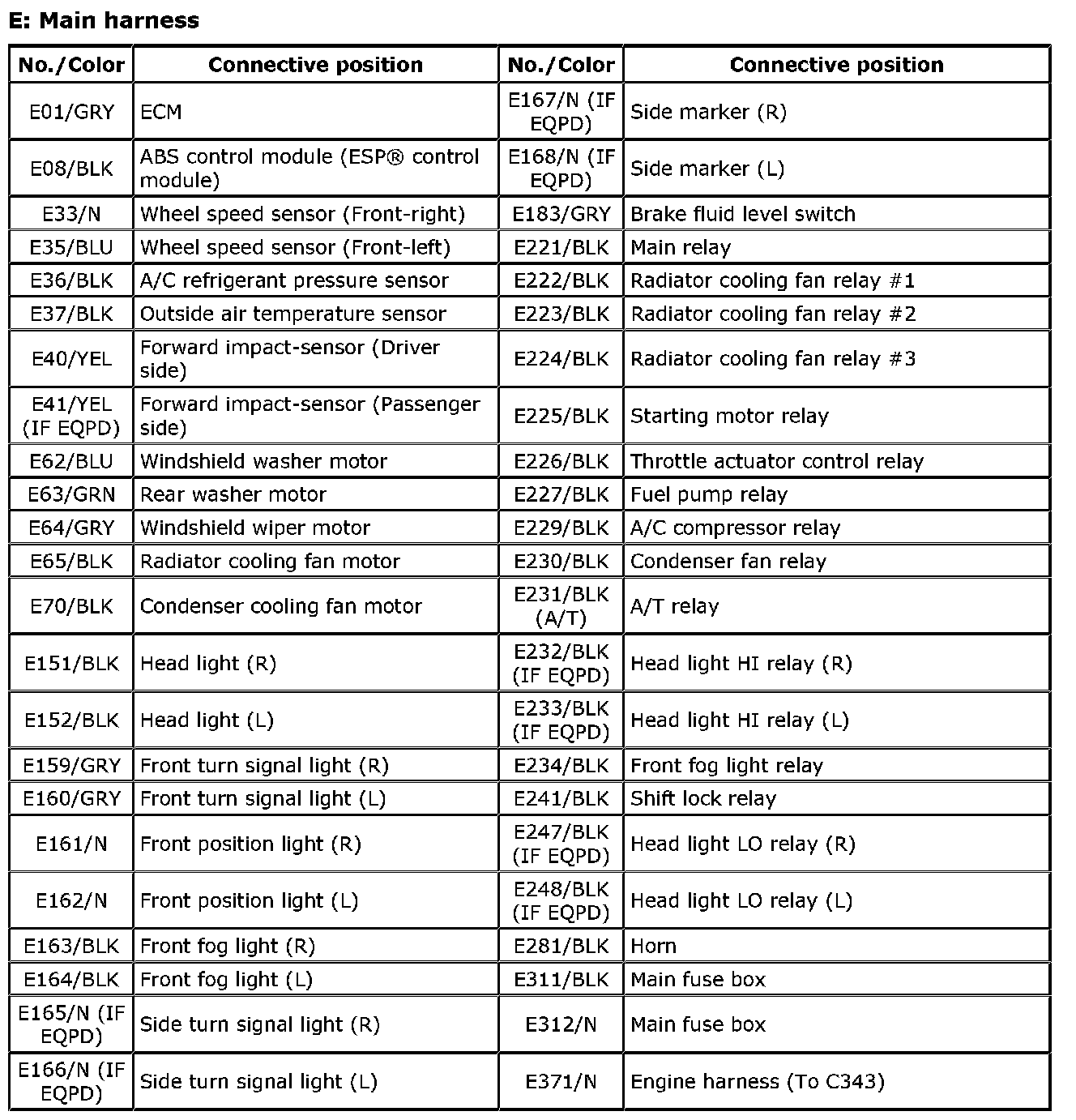

E: Main Harness Index:

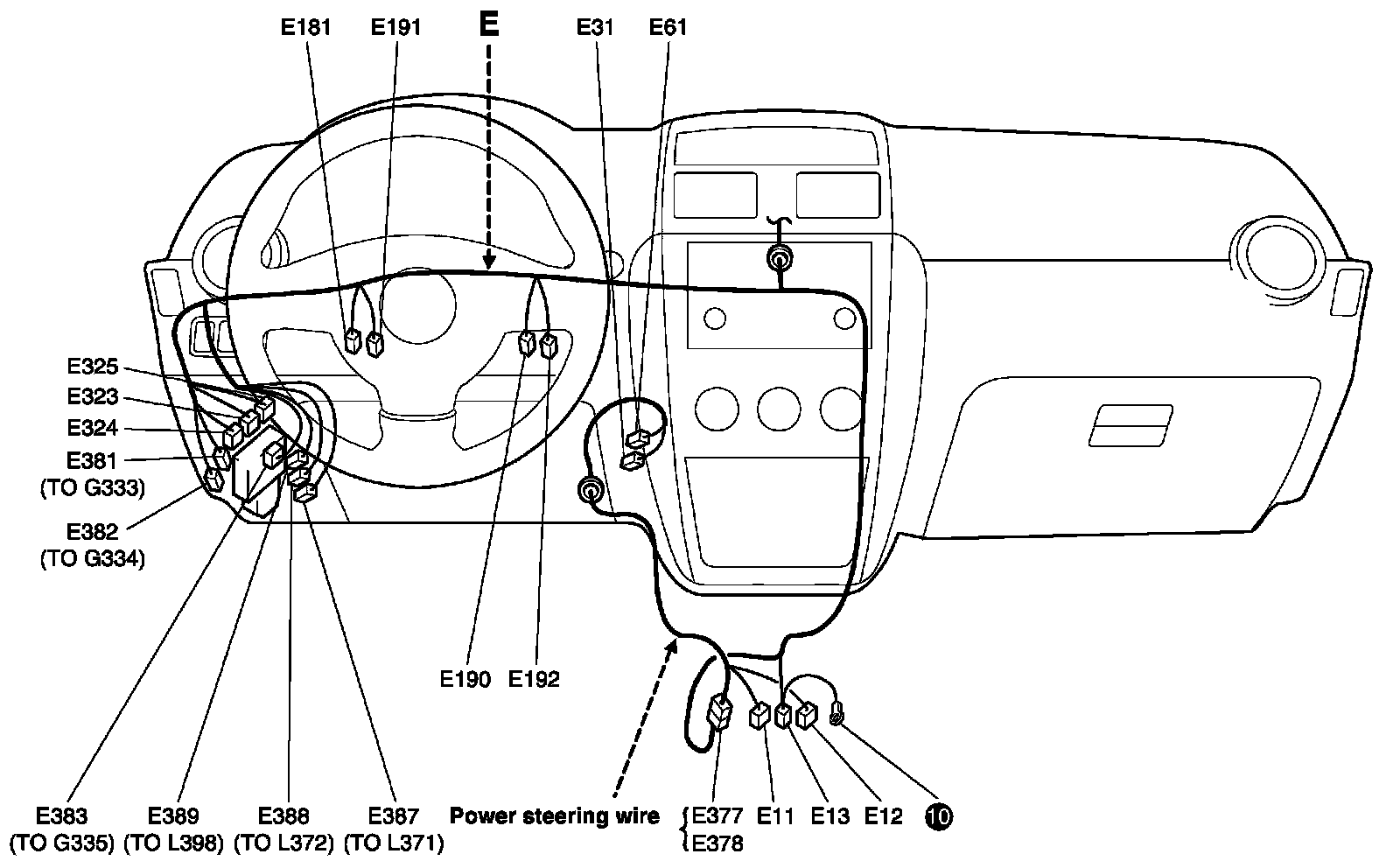

E: Main Harness, Power Steering Wire View:



E: Main Harness Index:



E: Power Steering Wire Index:
