Headlight Switch (In Lighting Switch) Inspection

HEADLIGHT SWITCH (IN LIGHTING SWITCH) INSPECTION

Reference: Headlight Switch (in Lighting Switch) Removal and Installation

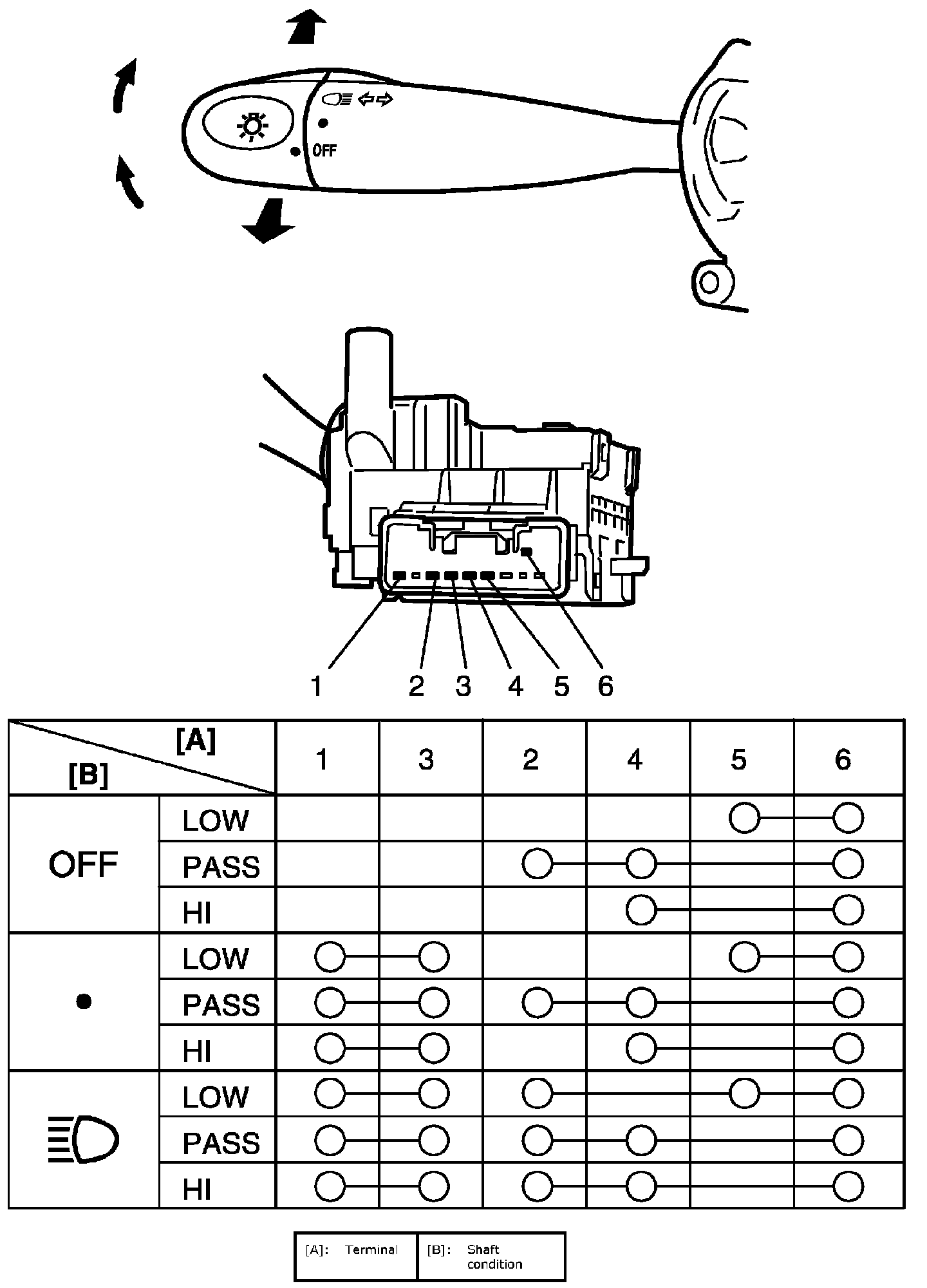

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
