Clock: Service and Repair
INFORMATION DISPLAY (CLOCK) REMOVAL AND INSTALLATIONRemoval
1. Remove audio unit referring to Audio Unit Removal and Installation (If Equipped).

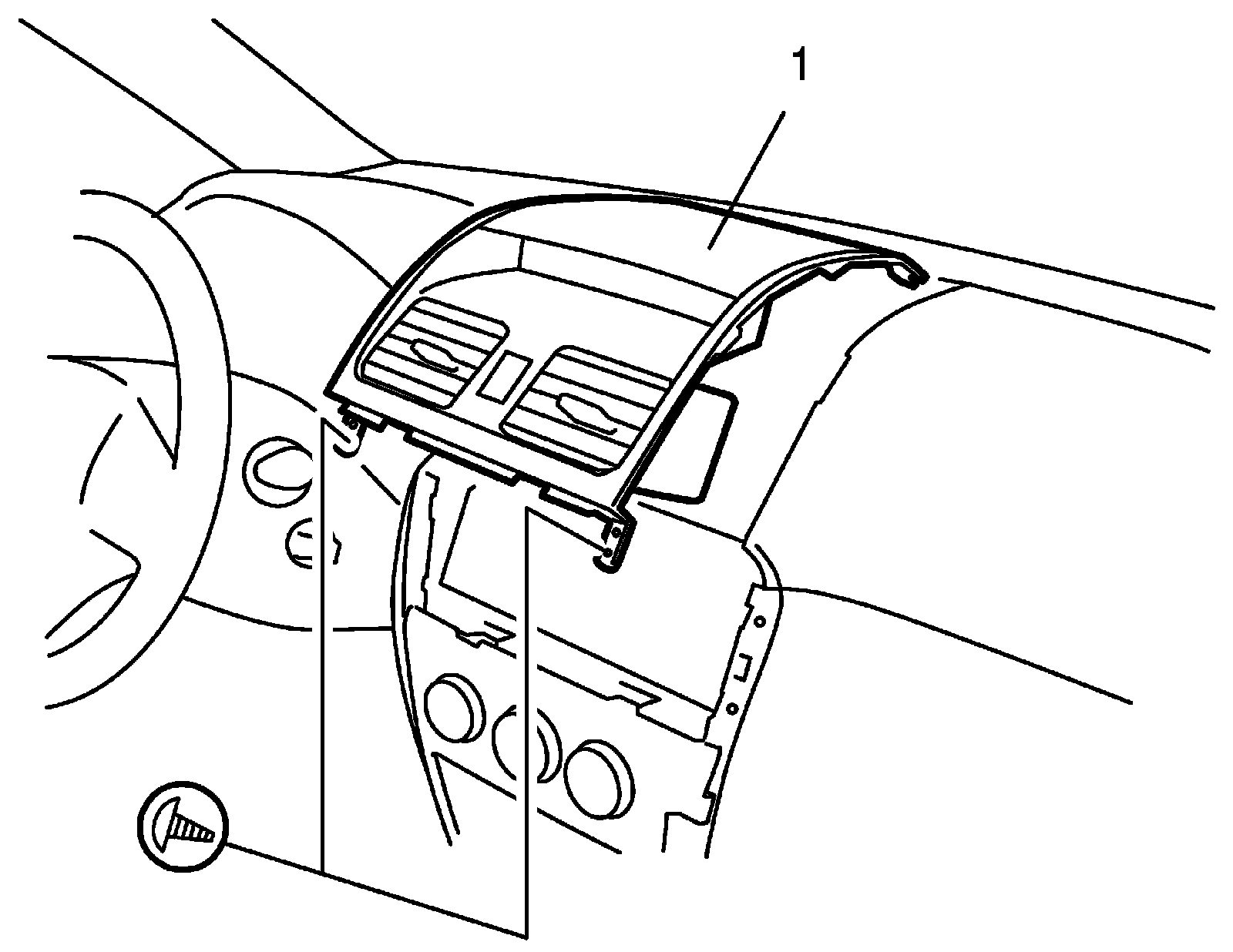

2. Remove center ventilation louver (1) from instrument panel and then disconnect hazard switch connector.

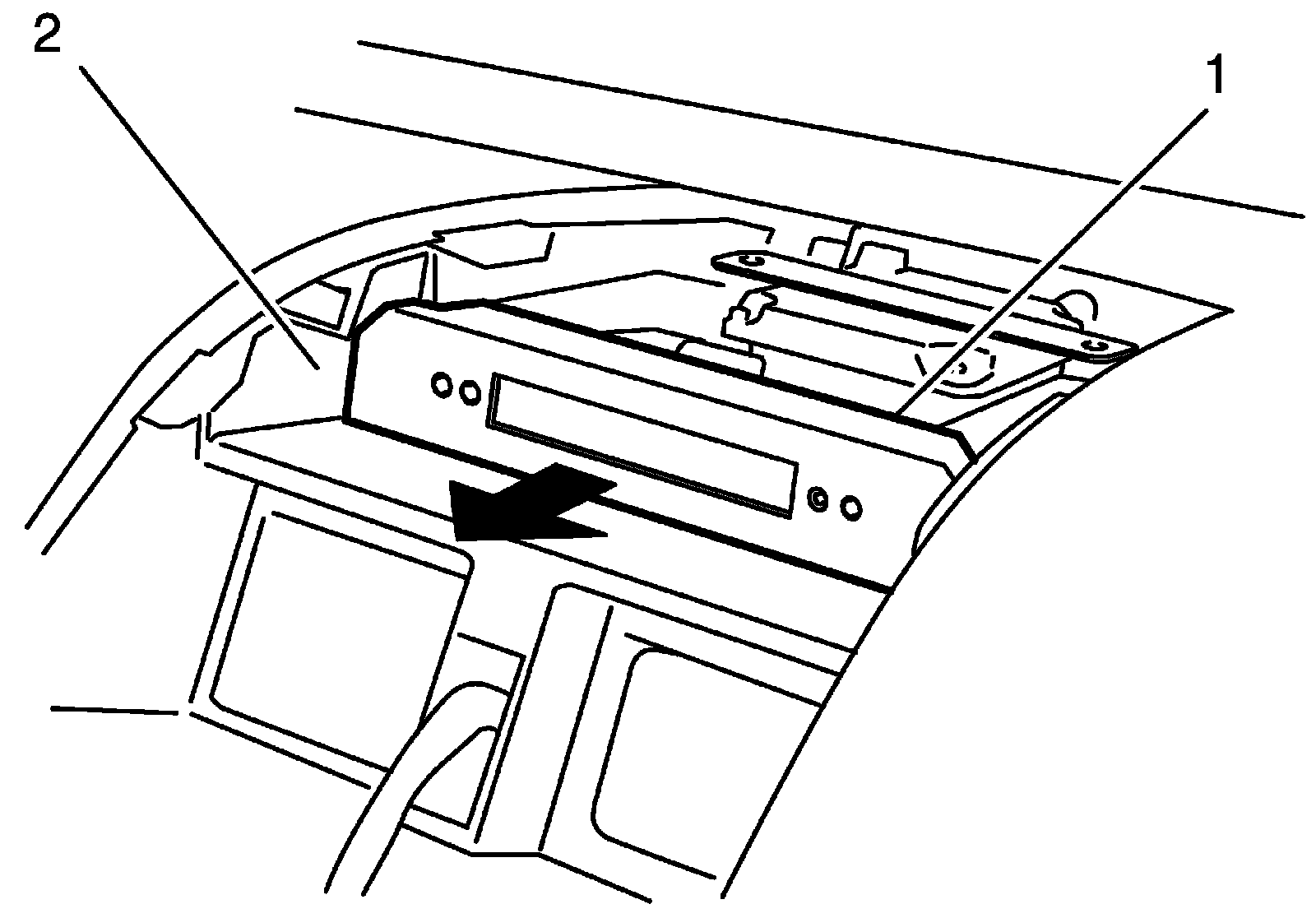

3. Remove information display (clock) (1) from instrument panel (2) pulling it in arrow direction shown in figure.
4. Disconnect information display coupler.
Installation
Reverse removal procedure.
