Junction Block Inner Circuit (Detail)

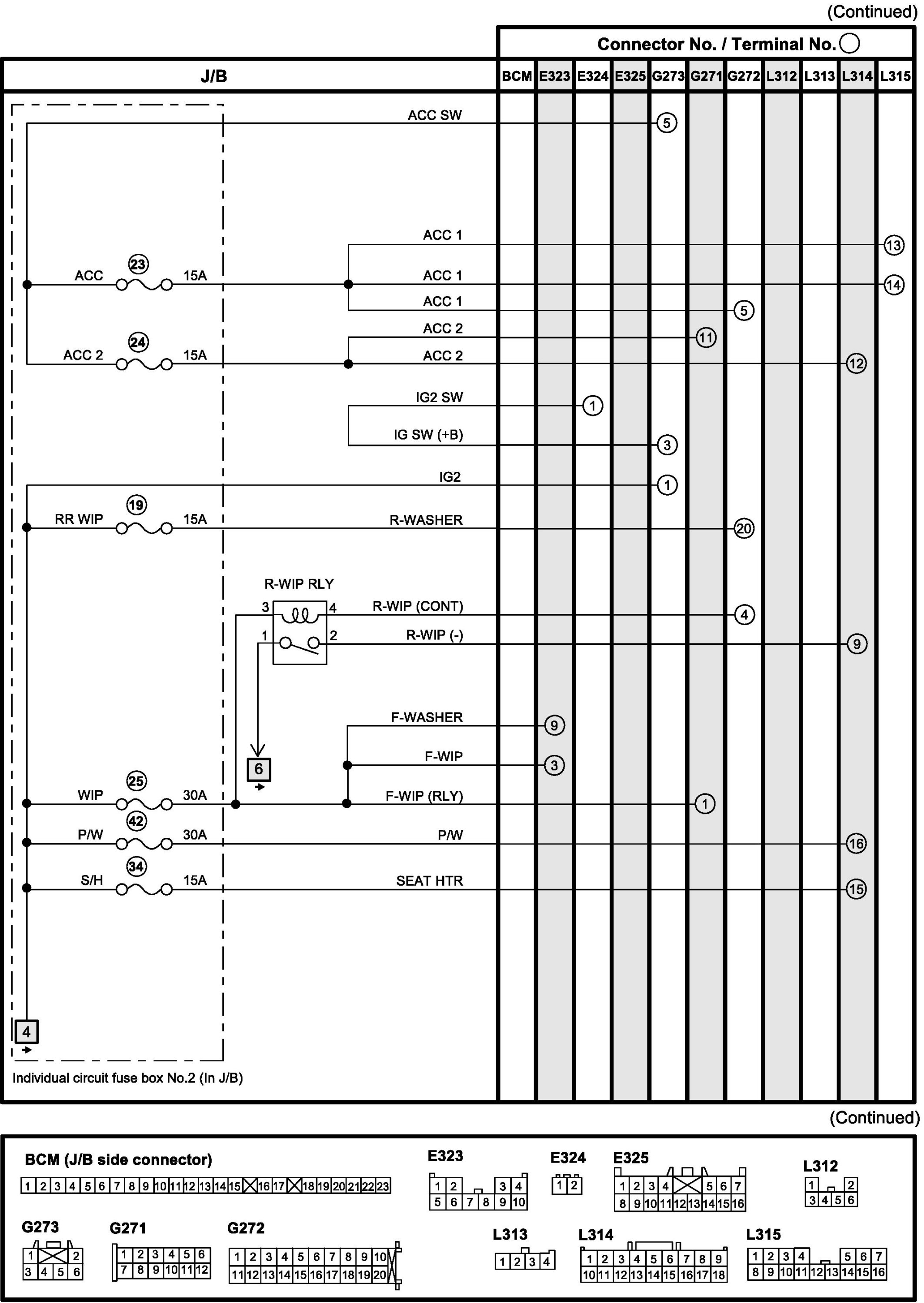

Junction Block Inner Circuit (Detail) Diagram 1:

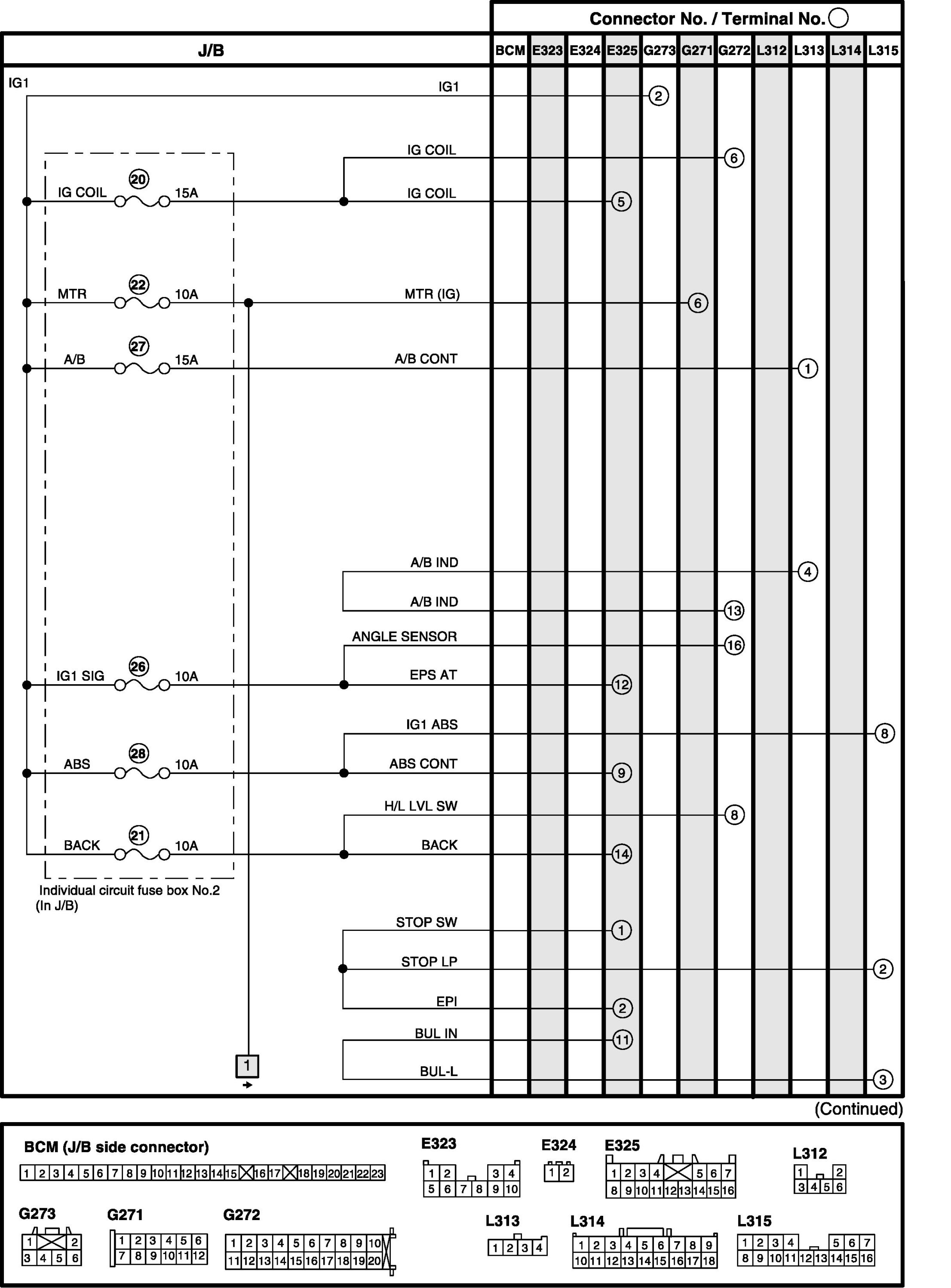

Junction Block Inner Circuit (Detail) Diagram 2:

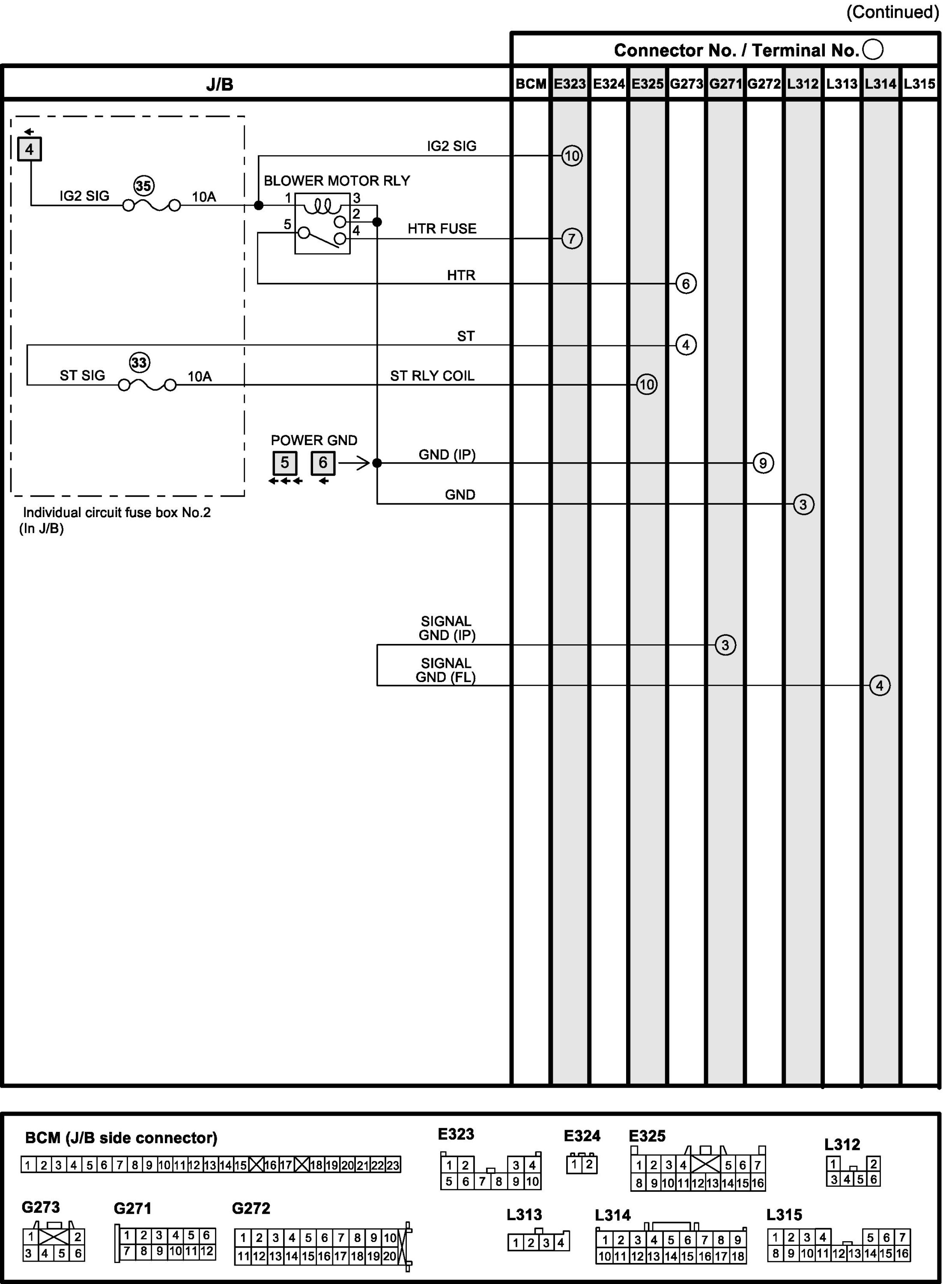

Junction Block Inner Circuit (Detail) Diagram 3:

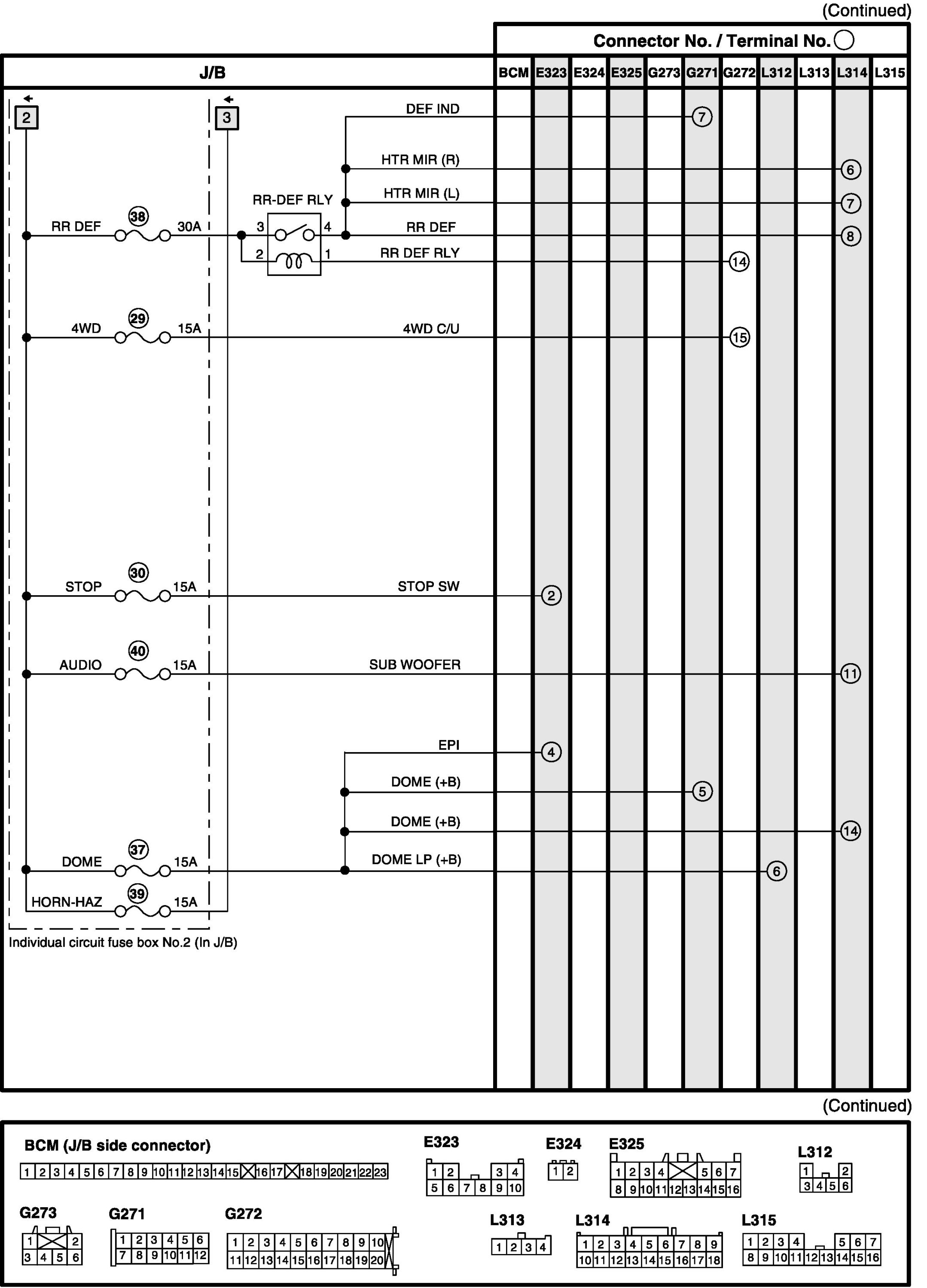

Junction Block Inner Circuit (Detail) Diagram 4:

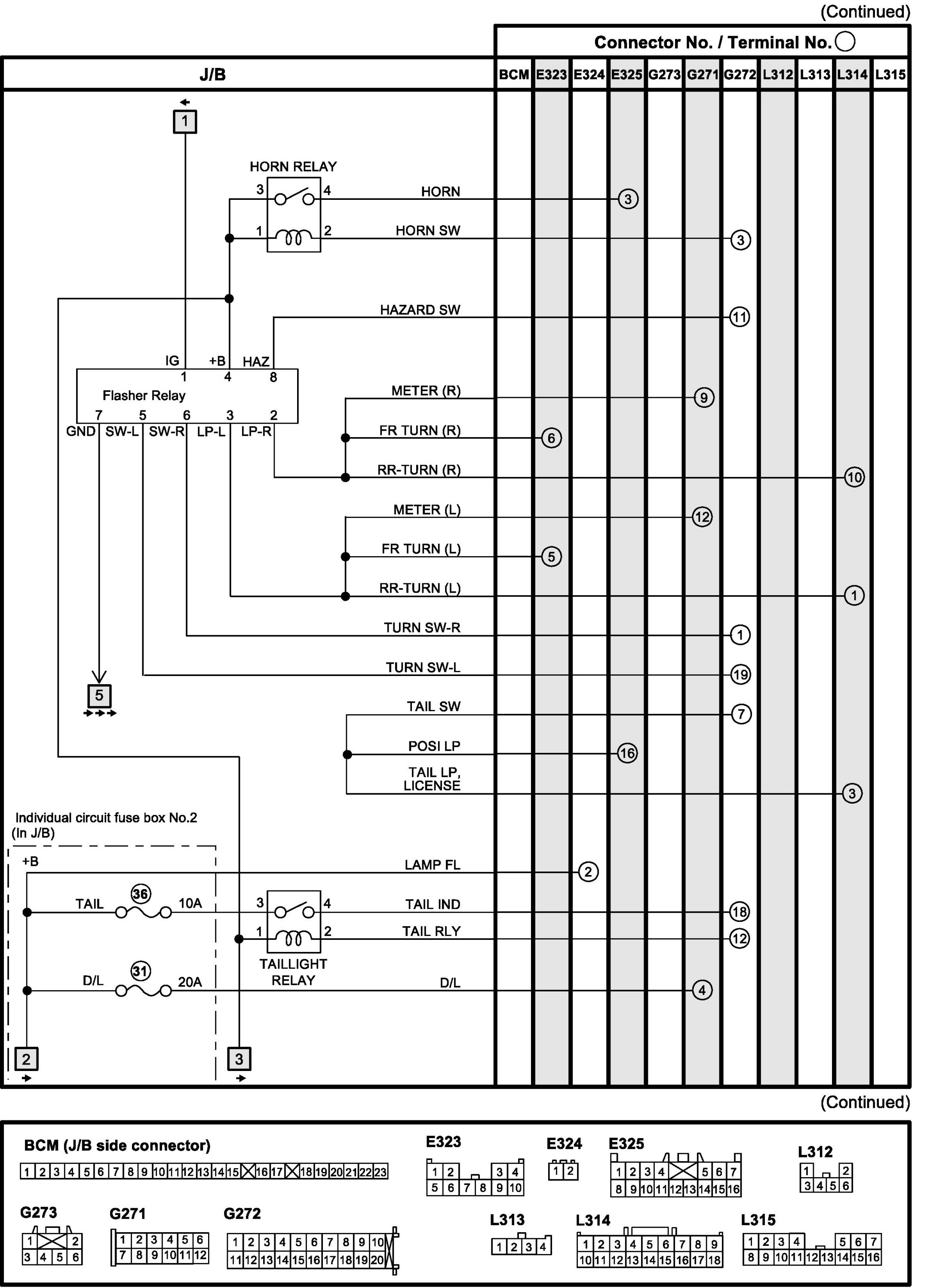

Junction Block Inner Circuit (Detail) Diagram 5:
