SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Transmission Control Module (TCM) Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

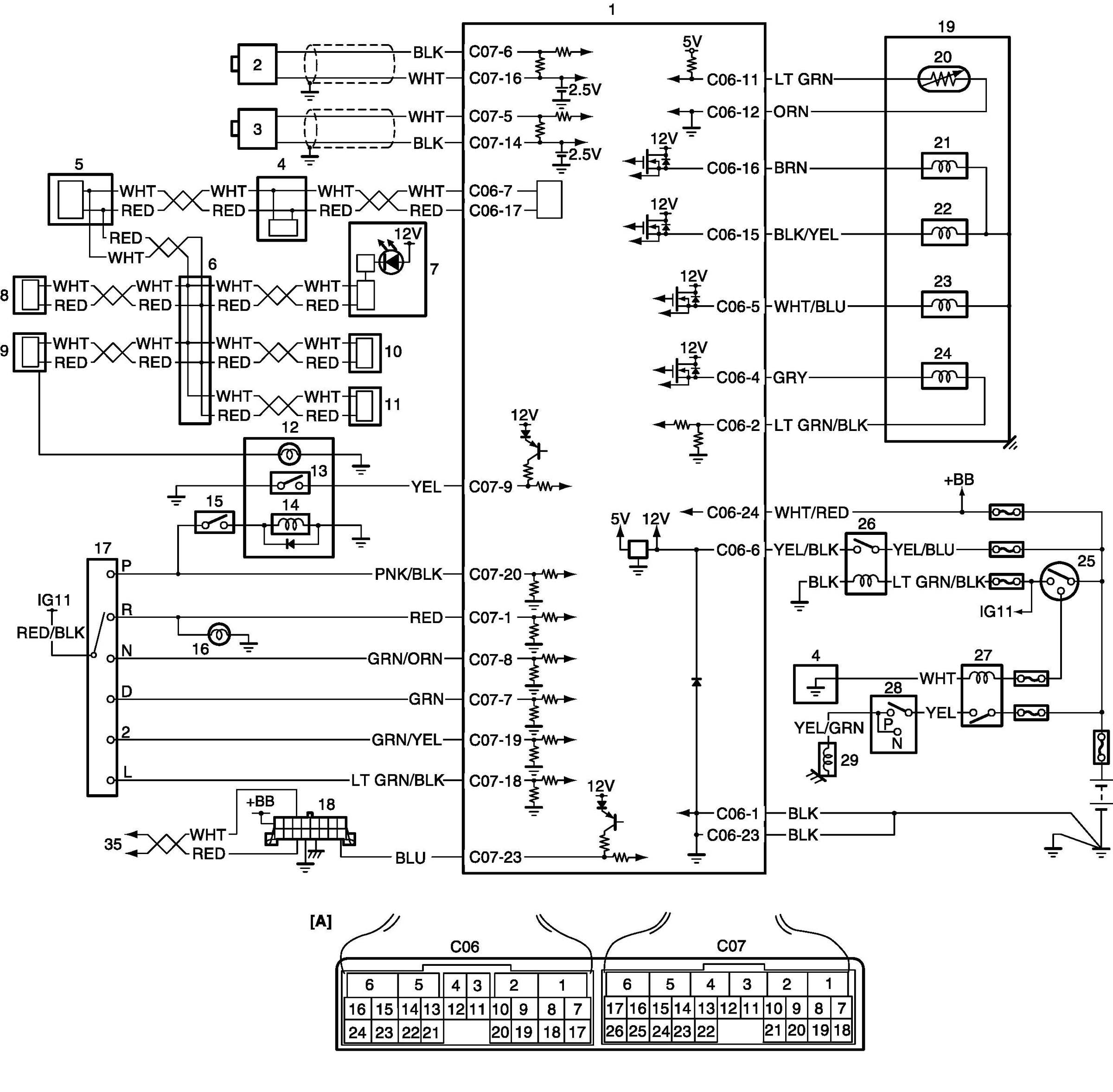

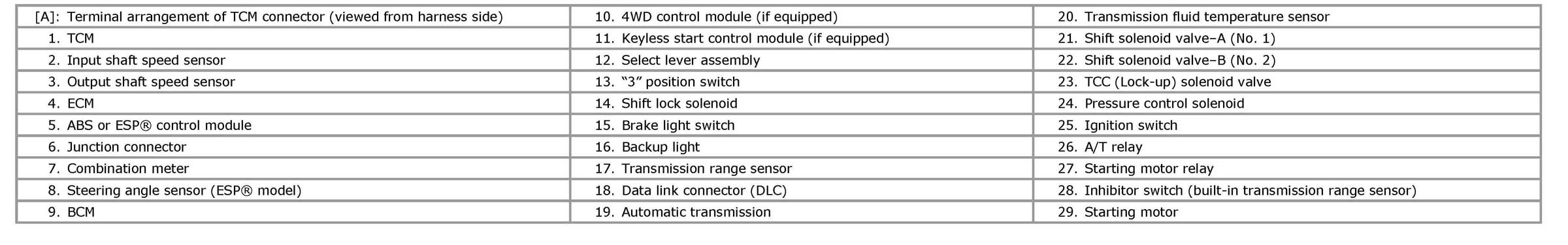

Transmission Control Module (TCM) Wiring Diagram
Transmission Control Module (TCM) Wiring Diagram

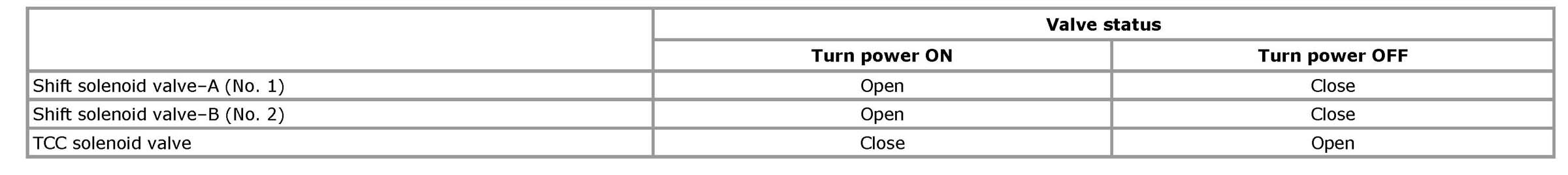

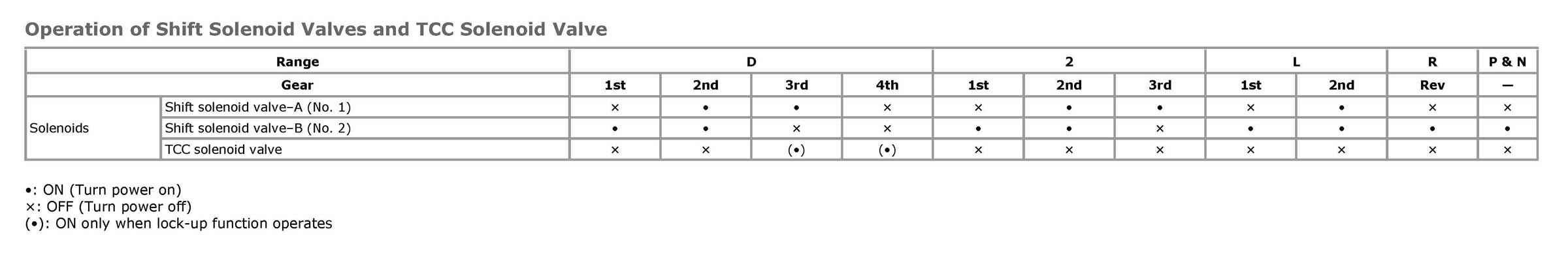

Operation of Shift Solenoid Valves and TCC Solenoid Valve
