G Connectors

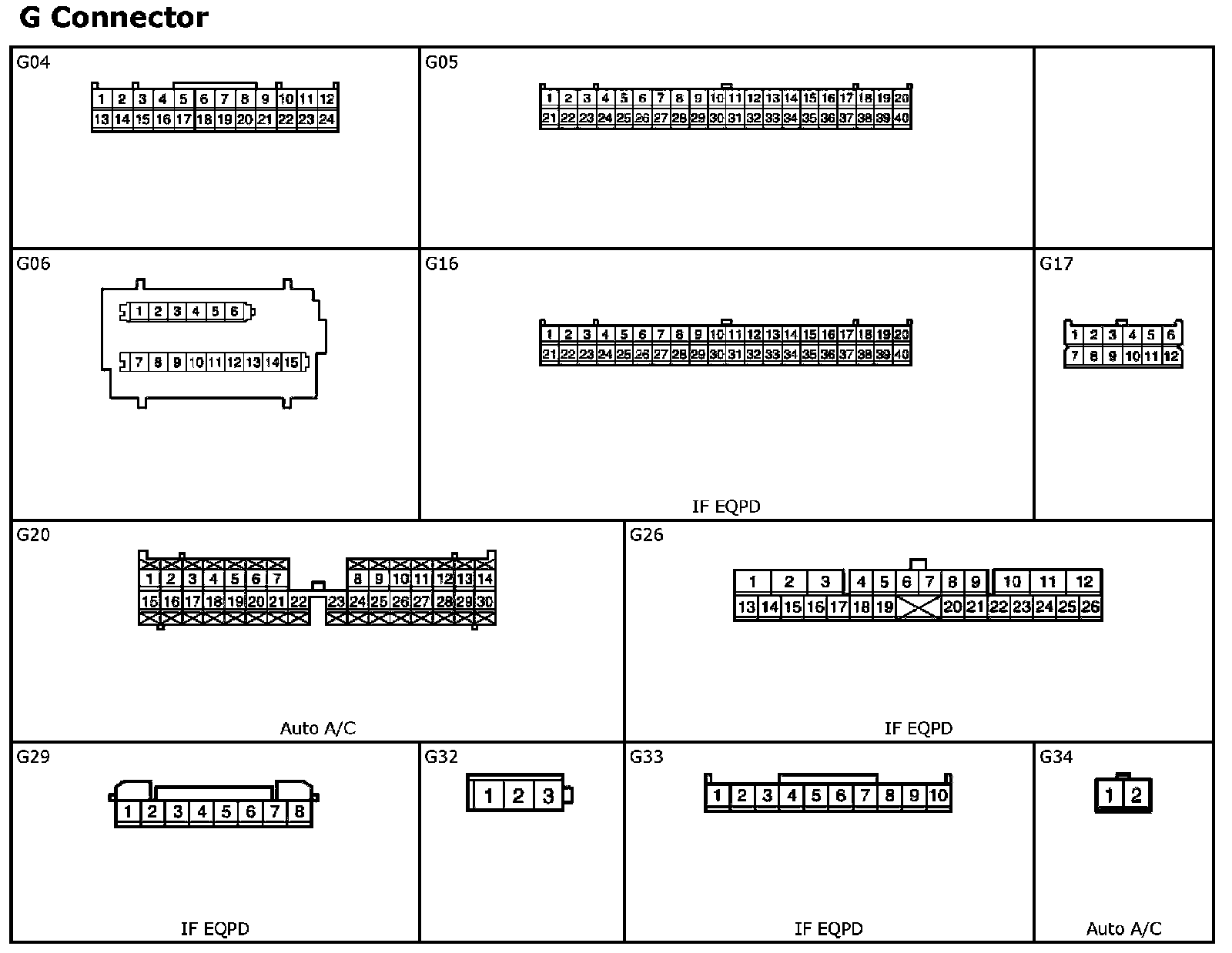

G04 - G34:

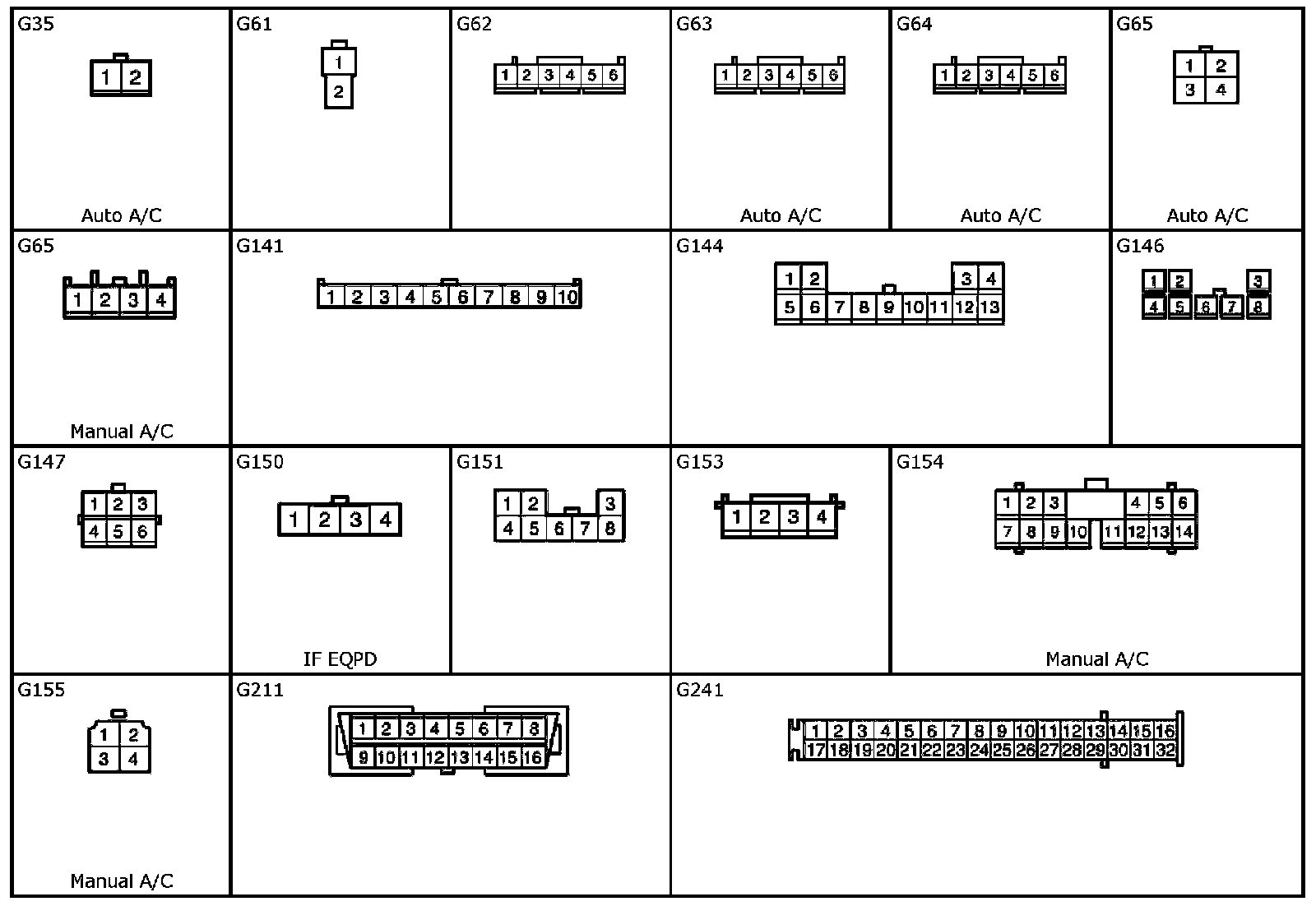

G35 - G241:

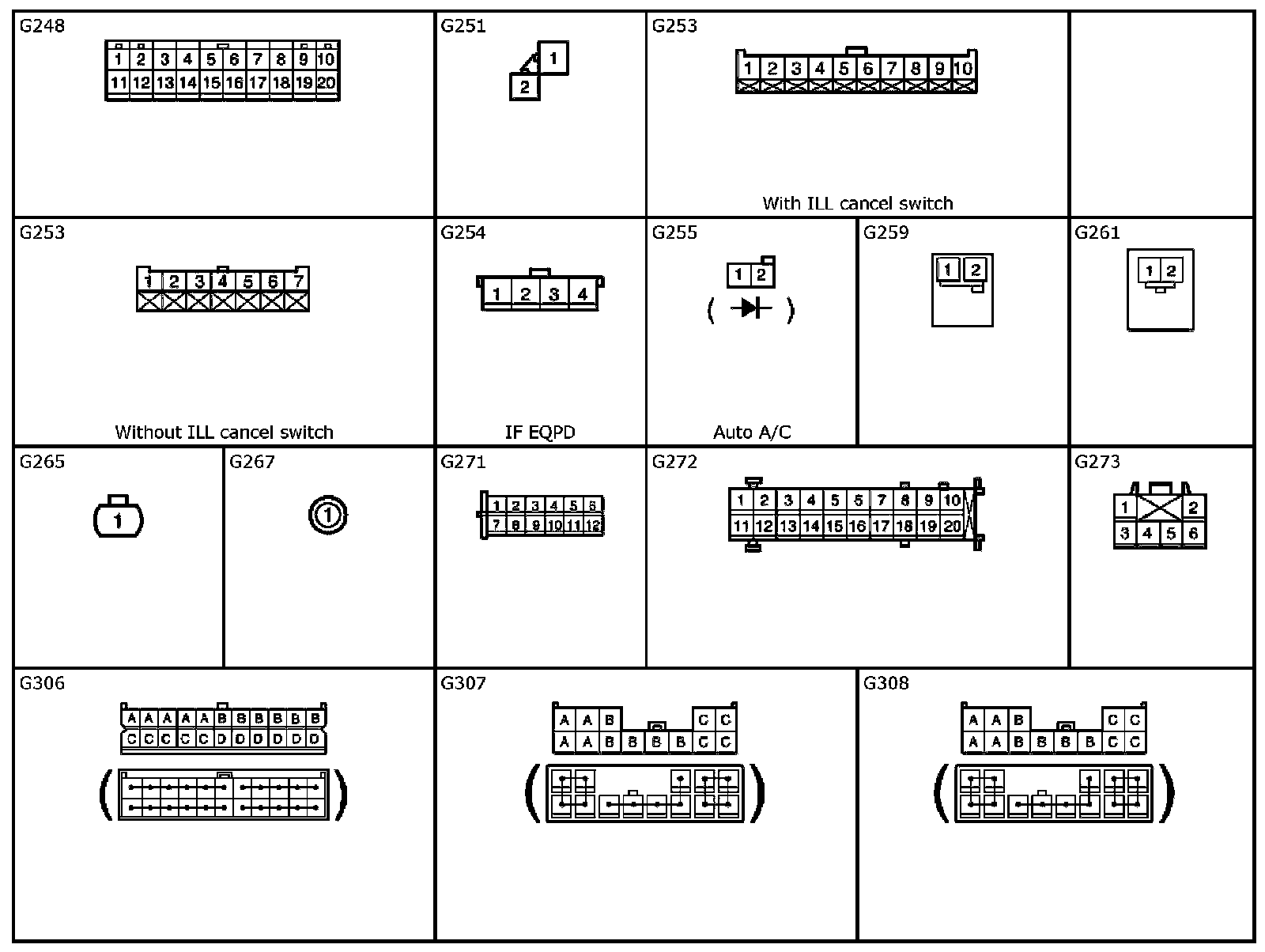

G248 - G308:

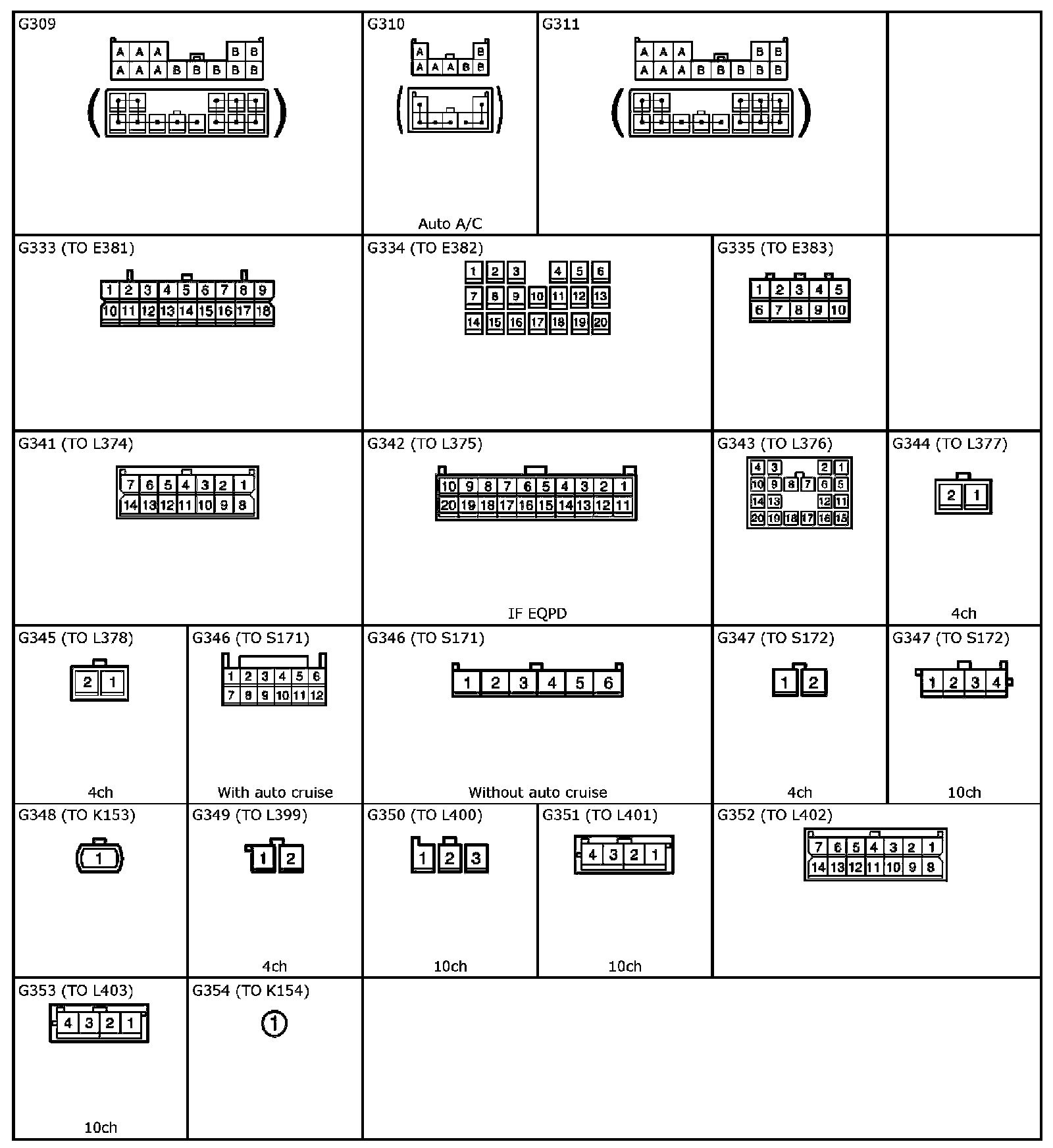

G309 - G354:
G04 - G146:
G147 - G273:

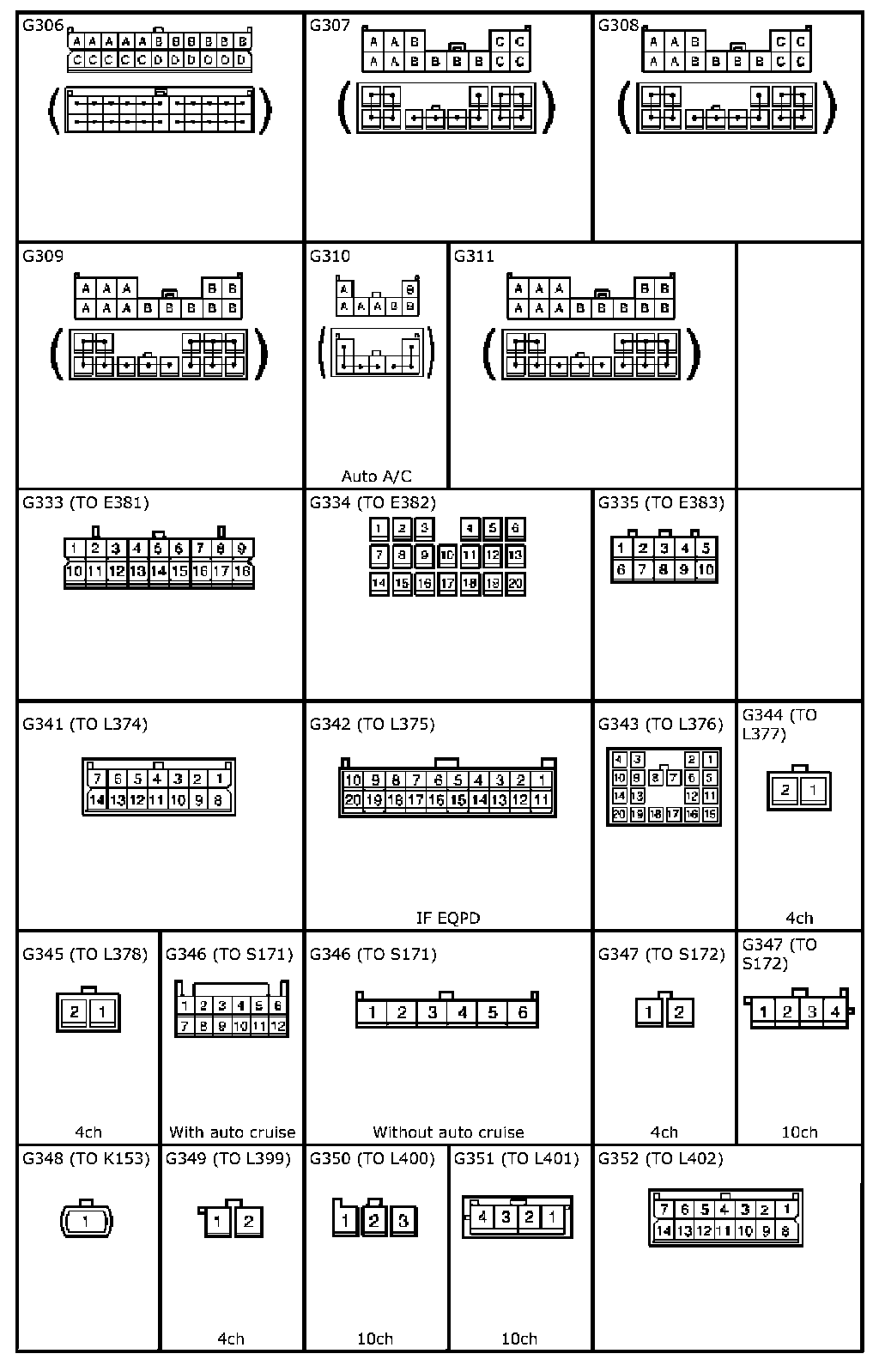

G306 - G352:
G353 - G354:
